61
G
UIDANCE
• Reset
clears out the current guidance pattern. It will allow saving the pattern prior to clearing it. If you save the
pattern, you must press the Reset button again.
• Set A
appears after a new guidance pattern has been accepted. Press Set A to set the A point for the new pattern.
• Set B
appears after the A point has been set. Press Set B to set the B point for the pattern.
• Remark A
appears after the Remark A option is selected under the Guidance Options button. This will move the A-
point to the current position while maintaining the same heading.
• Pause
allows your display to stop logging points along an AB Line. Once this button is pressed, a Resume button
will take its place until you press this button and Pause reappears.
• Guidance Options
button has four settings in it that allow you to Remark A, Shift, Trim/Nudge, and Adjust Steering. For more
details, see
“Autopilot Guidance Options” on page 63 .

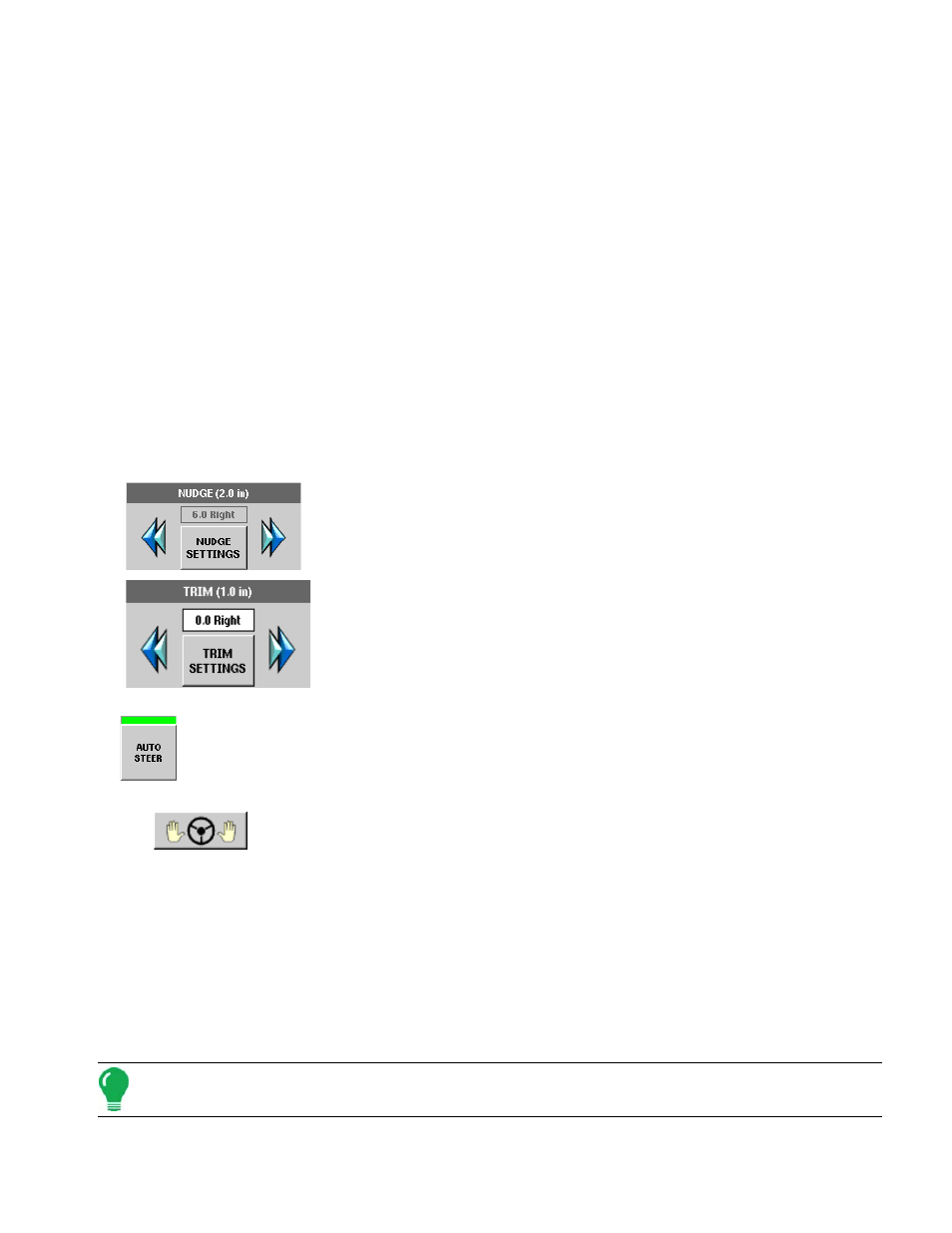

The Nudge Settings will appear if WAAS or OmniSTAR is selected as the
differential GPS source. The Nudge Settings button allows you to adjust the
swaths by a specified distance while leaving the AB line in its original location.
Otherwise, the Trim Settings button will appear if RTK is selected as the
differential GPS source. The Trim Settings button allows you to adjust the
swaths by a specified distance while leaving the AB line in its original spot.
Press the Auto Steer button to engage the Autopilot System.
• When the system is engaged the button displays green, as shown at left.
• If the system is not engaged, (but still able to be engaged), the button displays black.
• If the system cannot be engaged, the Auto Steer button is grayed out.
•
Engage button
(shaped like a wheel with two hands on its sides) displays the Autopilot status, and also
allows you to engage the Autopilot System.
• If the system is engaged, it shows two hands next to the steering wheel.
• When disengaged, the steering wheel is shown minus the two hands.
• If conditions don't permit engaging the Autopilot, the steering wheel will be grey and the control button is
disabled until the condition is no longer present.
U
SING THE
L
IGHTBAR
The display's on-screen lightbar remains black unless you set an AB Line. When you set an AB Line,
and a pattern is active, the on-screen lightbar activates.
Note: For information on how to set the lightbar for either Chase Mode or Pull Mode, see the Autopilot General
Settings page in the Guidance Tab section.
