135
P
LANTING
• Speed Source
Selects the type of speed source for the planter monitor. It includes the following options:
- GPS (recommended). With this selection, the PMM looks to the display for a GPS ground speed.
- Auxiliary (Auxiliary Input Module). With this selection, the PMM looks to the display from radar.
- Planter Monitor Module (PMM). With this selection, the PMM looks for ground speed from the magnetic
speed sensor on the planter. Magnetic pickup needs to be checkmarked and calibrated to get an
accurate seed population reading.
Note: This speed selection only affects the PMM. The ground speed source must still be selected.
• EdgeVac Sensors
Use the arrows to enter the number of EdgeVac® sensors on your planter. You will also need to calibrate
the EdgeVac sensors once per year. To start this process, press the Calibrate button. For more
information, see
“KINZE EdgeVac Calibration” on page
• Tank Pressure
Check the box only if the planter is equipped with tank pressure sensor. You will also need to calibrate the
sensor once per year. To start this process, press the Calibrate button.
• Other Sensors
- Down Pressure - Check this box if the planter has pneumatic down pressure.
- Oil Sensor - Leave this box unchecked.
- SDS Sensors - Check this box if the planter has a mechanical Seed Distribution System (SDS)
installed.
• Accept button
To save configuration settings, press button.
Note: If you have changed the number of sensors on the Planter configuration, the Accept button starts the
Muxbus Detection procedure. For more information, see
“Muxbus Sensor Detection (for KINZE Planter
.
KINZE P
LANTER
S
ENSOR
C
ONFIGURATION

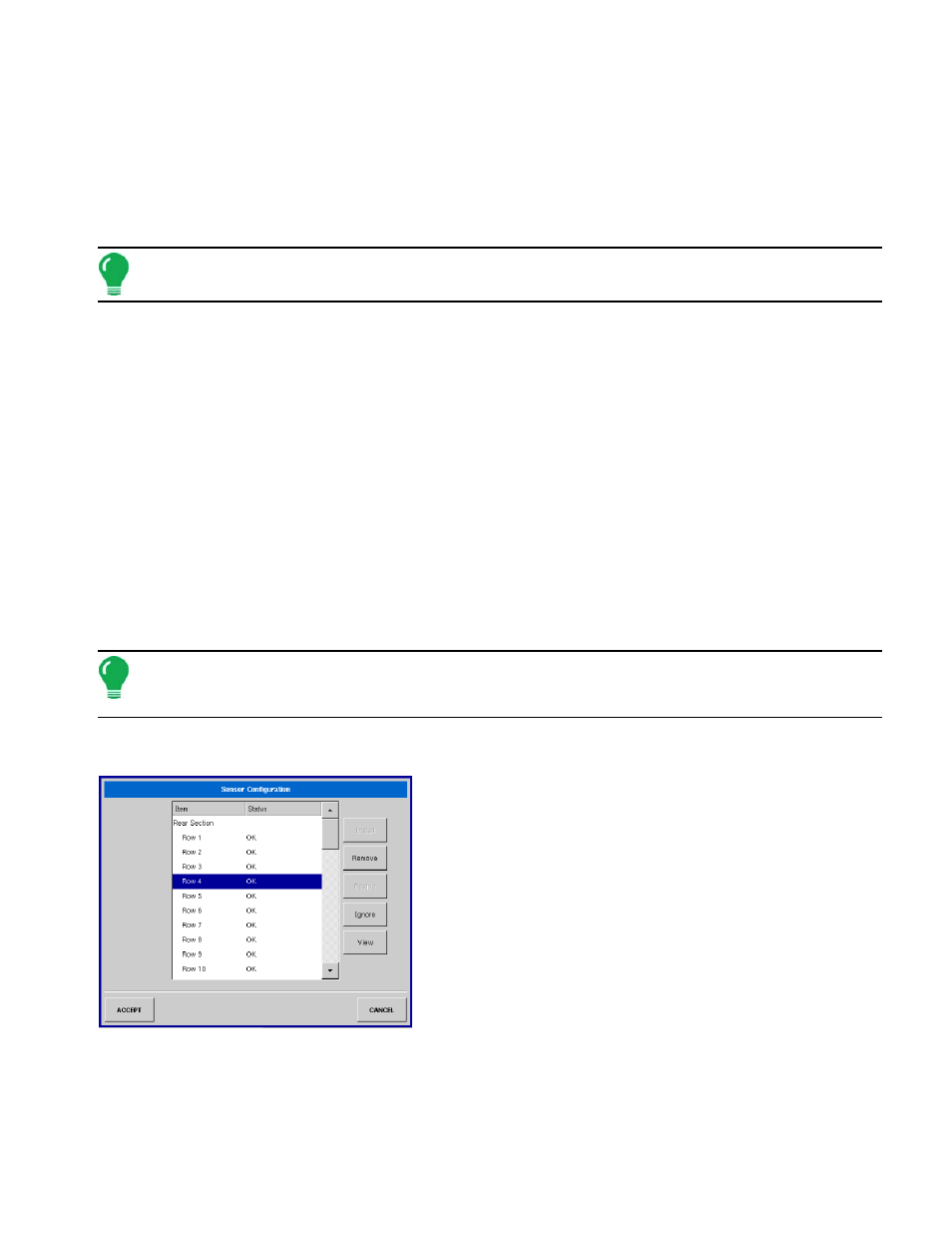

To view the Sensor Configuration Window, go to the
Implement Tab, press the KINZE Planter Monitor Setup
button, and when the KINZE Planter Monitor Setup window
appears, press the Sensor Configuration button. The
Sensor Configuration window, shown below, is for system
maintenance of the KINZE Population Monitor.
• Install button
