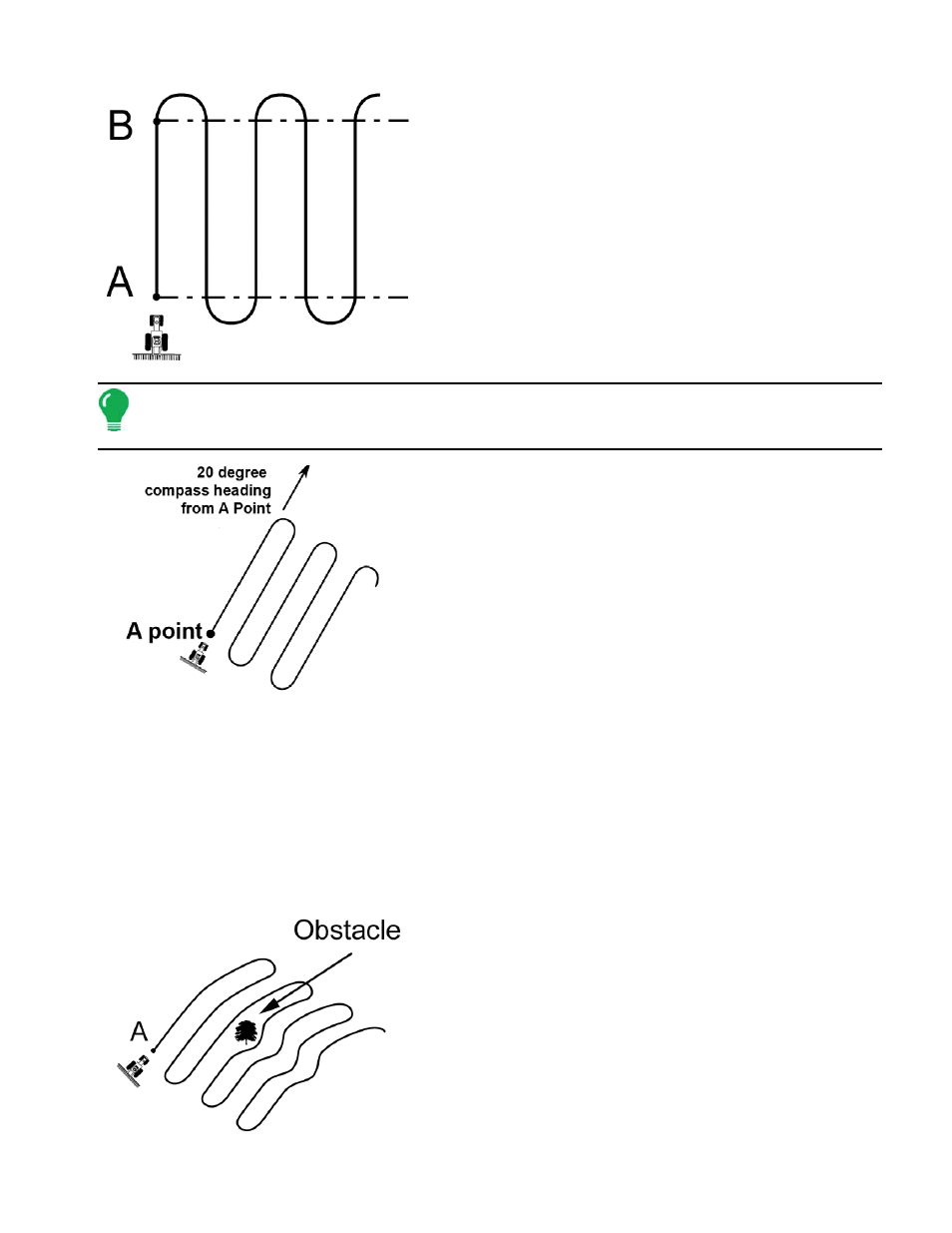

Use the AB line pattern when no headlands are required and
you drive the field in parallel straight lines.
1. At the start of the first swath, map Point A.
2. Drive to the other end of the field, and at the end of the first
swath, map Point B.
3. Turn left or right for the next swath. The next swath is
automatically generated.
4. Steer the vehicle so that you center the green lights on the
lightbar as you drive forward along the swath.
5. Press Engage.
Note: On straight AB lines, if you complete a swath that is longer than the previous one, the display
automatically extends the guidance path for the following swaths so that headland warnings do not appear
prematurely.
A+ Pattern
An A+ line is also a straight line. It is defined by a single point on
the line (the A point) and the heading of the line. Use this pattern
when you wish to make a straight line based on a compass
heading.
The A+ line entends 1 mile (1.6 km) before and after the A
point.
1. To map the start of the first swath, map Point A.
The heading of the AB line equals either the previous AB heading of the manually-entered heading (if the
current vehicle is within plus or minus 90 degrees of the AB heading). Otherwise, the A+ heading is in the
opposite direction.
2. Follow the AB line for guidance down the first swath.
3. Turn left or right for the next swath. The next swath is automatically selected.
4. Steer the vehicle so that you center the green lights in the lightbar as you drive forward along the swath.
5. Press Engage.
Adaptive Curve
Use the Adaptive curve pattern to follow gentle contours in the
field, or when you need to avoid obstacles. This pattern provides
guidance based on the last curve driven.
