Installs a row sensor.
Note: Upon your initial configuration of the KINZE Planter Monitor, you must complete the Sensor Muxbus
Detection process. For more information, see
“Muxbus Sensor Detection (for KINZE Planter Monitor)” on
• Remove button
Removes the highlighted sensor of any type.
• Revive button
Allows the display to reattempt communication with the highlighted sensor of any type.
• Ignore button
Tells the display to cease communications with a row sensor.
• View button
Shows the Sensor Information window. For further information, see
“Sensor Information (for KINZE Planter
.
• Accept button
Saves configuration settings.
M
UXBUS
S
ENSOR
D
ETECTION
(
FOR
KINZE P
LANTER
M
ONITOR
)
Upon your initial configuration of the KINZE Planter Monitor, you must complete the Sensor Muxbus
Detection process. This process allows the PMM to detect each sensor on the planter. In order for the
display to show the correct Planter Monitor information, you must complete the detection process for
each muxbus sensor.
Note: Be sure that all of your planter sensors are unplugged before you begin the Muxbus Detection process.
If any of your sensors are still plugged in, the Muxbus Detection process will abort. If this occurs, unplug the
remaining sensors and retry the procedure.

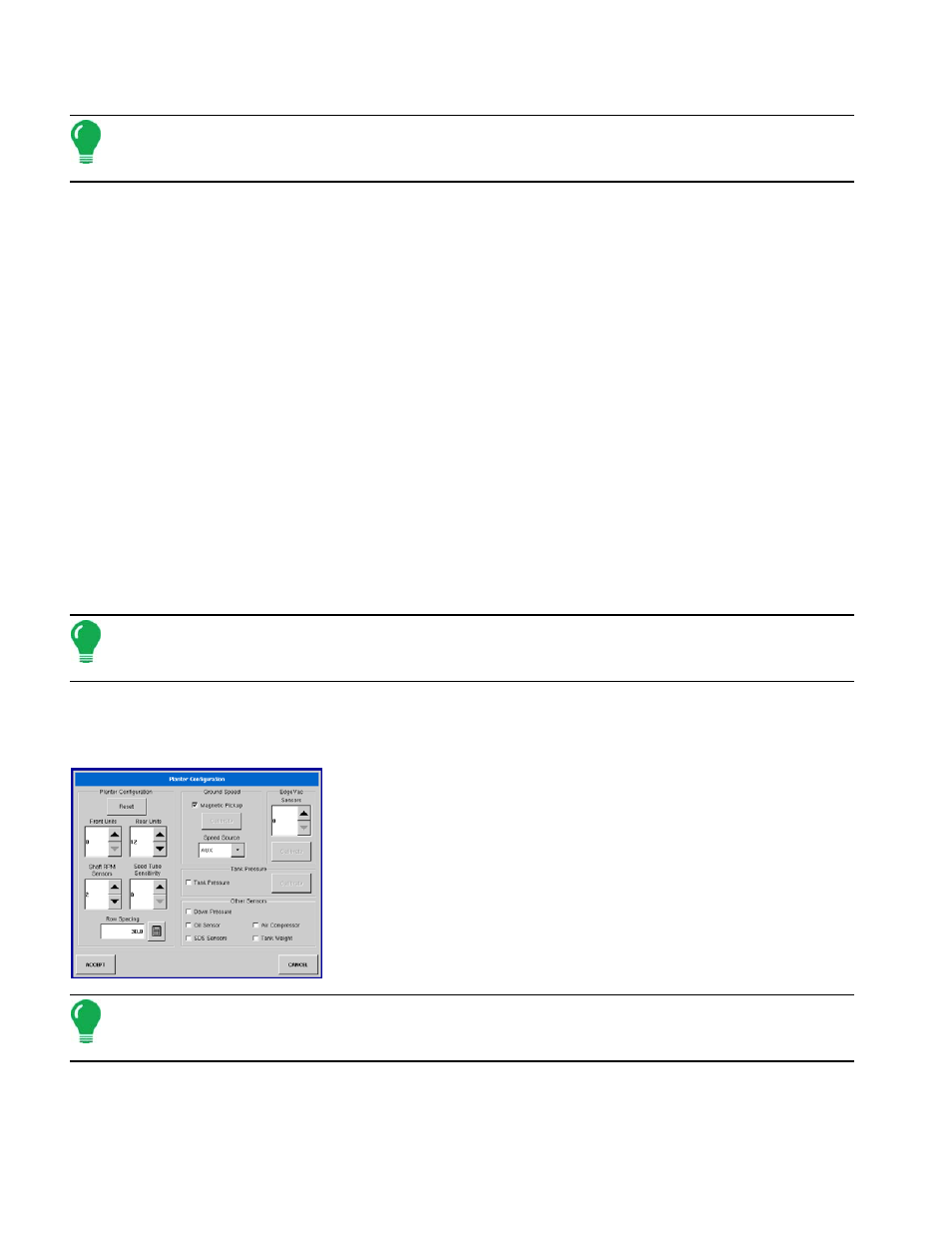

To start the Sensor Muxbus Detection process, go to the Implement Tab, press the KINZE Planter
Monitor Setup button, and when the KINZE Planter Monitor Setup window appears, press the Planter
Configuration button. The Planter Configuration window appears, as shown.
1. Make Settings Adjustments on Planter Configuration window
When the Planter Configuration window appears, make any changes
to the Planter Configuration Settings that are necessary. For more
information on these settings, see
“KINZE Planter Configuration” on
.
When you are finished making adjustments to the settings, press
Accept.
Note: The Muxbus detection process will only start if you have changed the sensor configuration. If you have
not changed your configuration, it will not repeat the muxbus detection process but instead will exit to the
Implement Tab.
2. Disconnect Planter Sensors from Sensor Harness
• Make certain all planter sensors are disconnected from the planter harness.
