177

A

PPLICATION

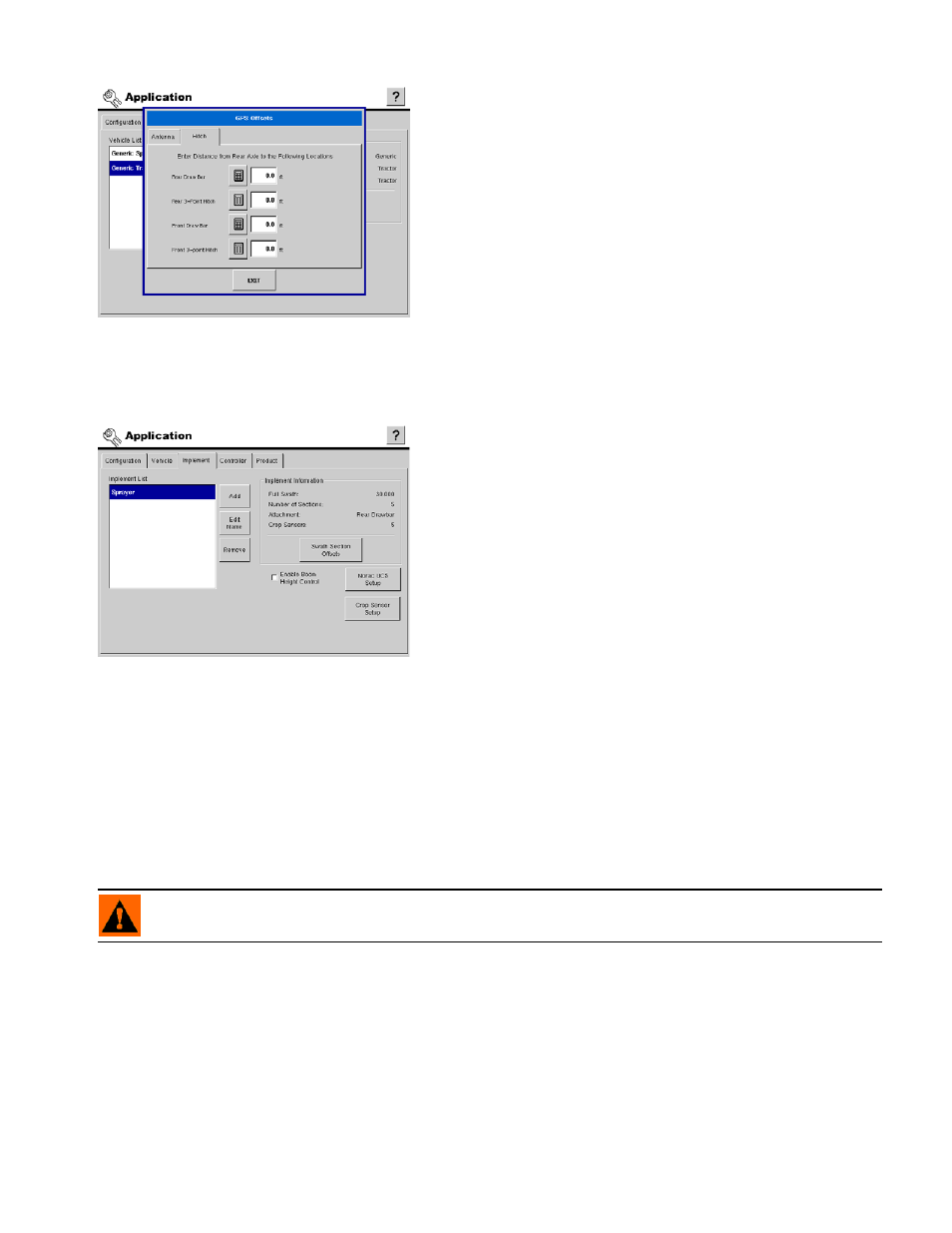

The Hitch Tab is only available if using a pull behind or
mounted implement. This allows you to enter in the distance
from four different mounting positions on the tractor to the
rear axle. Use the numeric keypads to enter these values in if
using the hitch point.

I

MPLEMENT

C

ONFIGURATION

T

AB

Implement Tab Settings

Individual implements are set up and configured from the
Implement Tab. The implement list displays all previously set
up implements that are available for use when creating new
configurations.

For a detailed Application menu that includes information on
the Implement Tab, see

“Application Menu Tree” on page

167

.

• Add button
Press to add a new implement. A wizard will walk you through setting up the implement. For detailed
information, see

“Adding a New Implement” on page

178

.

• Edit Name button
Press to edit the name of a selected implement from the list. The on-screen keyboard will be made available
to make any required edits.

• Remove button
Press to remove a selected implement. The implement and any regions and configurations using it will be
deleted.

WARNING: When deleting an implement all regions and configurations using it will be deleted!

• Swath Sections Offsets button
Press to edit the swath section offsets, distance from tractor hitch to application point, and distance from
front hitch to rear hitch of the implement. An on-screen wizard will walk you through the edit process. For
detailed information, see

“Swath Section Offsets” on page

179

.

• Norac UC5 Setup button
Appears for users of the NORAC UC5 Spray Height Controller, summons the Norac UC5 Setup box. For
more information, see

“NORAC UC5 Setup” on page

215

.

• Enable Boom Height Control check box
