Displays active spread pattern width.
The AutoSwath check box allows the enable/disable of the Automatic Swath Control
functionality.
Displays the status of the product control channel. When the fertilizer
bin icon is grey, no product application is taking place. When product
is being applied, the fertilizer bin will turn green. Directly underneath
the fertilizer bin icon, the Conveyer Belt RPM shows the revolutions
per minute of the conveyer belt. The Spinner Disk RPM, located to
the right of the Spinner icon, shows the revolutions per minute of the
spinner disks.
Displays the current target application rate. Press the up arrow button to go
to the Target Rate Application window. For more information, see
Spinner Spreader Control Settings

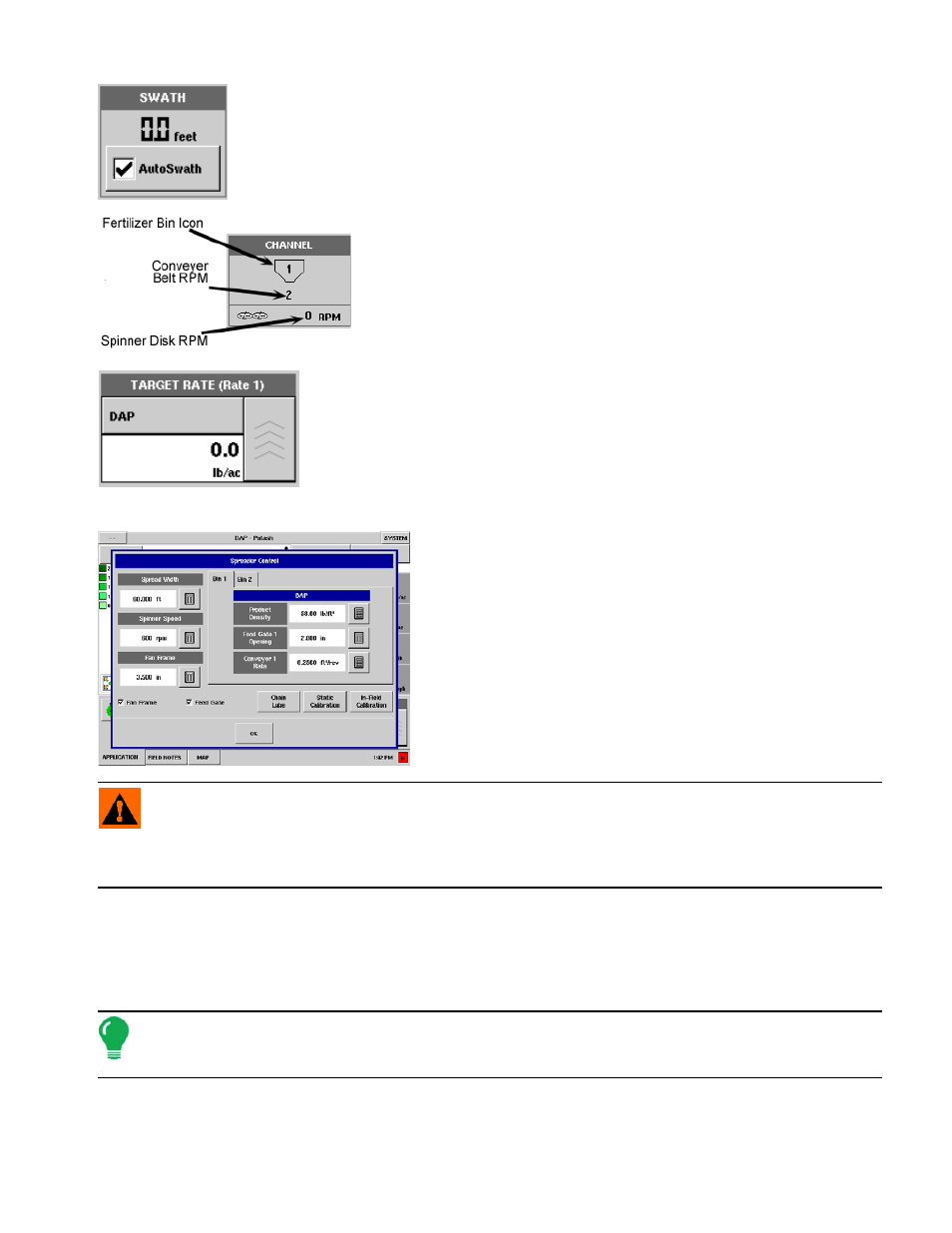

When you press the Spreader Control button on the
Application Tab of the Run Screen, the Spreader Control
window appears, as shown. General Settings are described
on this page along with settings specific to Fan Frame & Feed
Gate Actuator users; Product Settings are described on the
following page.
Each of these settings described below must be set for each
individual Product Channel (bin).
The Spread Width, Spinner Speed, Product Density, Feed
Gate 1 Opening and the Conveyor 1 Rate are all stored with
each combination of product and control channel.
WARNING: Changing any of these settings in the display does not make the needed adjustments on the
product applicator. Setting value and physical setting on the spinner bed must be verified for correctness
prior to any product application. However, if your machine is equipped with Fan Frame & Feed Gate
Actuators, and you have also purchased a New Leader Linear Actuator unlock code, the settings on the spinner bed
will automatically change.
• Spread Width
Use the numeric keypad to edit this value.
• Spinner Speed
The spinner speed required for accurate product placement in relation to the spread width setting.
Note:
The spinner speed is controlled automatically based upon this setting when the system uses
an optional PWM spinner speed control valve. For more information, see
• Static & In-Field Calibration
