252

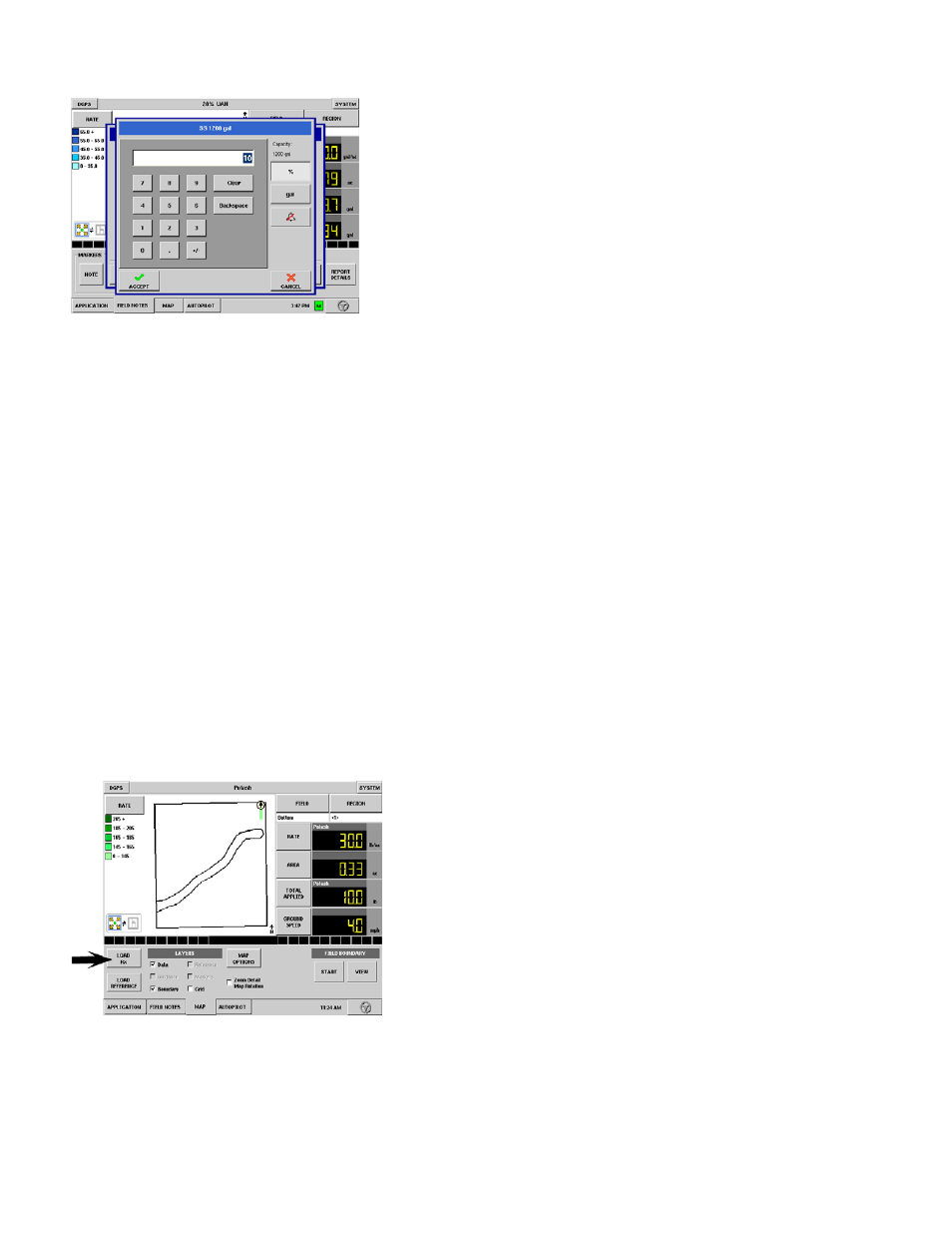

Example of Low Container Level Settings window

You may adjust the Low Container Level warnings threshold by
first pressing the bell icon button at the Fill/Event window. A
window then appears, which is named according to the name of
your solution tank (see picture at lower left).

Use the following buttons on the right-hand side of the Low Container Level Settings window to adjust

the warnings.

• The percentage (%) button sets the warning threshold according to the percentage of solution left in the tank.

In the example at left, the threshold is set at 10 percent.

• The units of measurement button sets the warning threshold according to the amount of solution left in the

tank. This button is named according to the container’s units of measurement you specified during the
Controller configuration procedure.

• The Disable Low Container Level icon, which appears as a bell with a red slash across it, shuts off the Low

Container Level warning.

Press Accept to return to the Run Screen.

V

ARIABLE

R

ATE

P

RODUCT

A

PPLICATION

V

ARIABLE

R

ATE

F

ILE

B

ASICS

The display supports applying product based upon GPS-referenced recommendation files. Product
recommendation files are stored on root (not placed inside of any folders) of the external storage card.
Variable rate application files are loaded from the Application Tab of the Run Screen. When a Rx
(prescription) file is loaded, the display defaults to controlling product application based upon the target
rates from the Rx file.

Loading Prescription Files

Press the LOAD Rx button on the Map Tab of the Run Screen
to load a variable rate prescription file.

Selecting Rx Files
