The Application Tab on the Run Screen contains controls related to data logging during application
operations. Shown below and on the following page are sample configurations for Site Verification,
Liquid Application for DirectCommand, Serial Controllers, Spinner Spreader, Strip Till, and Direct
Injection.

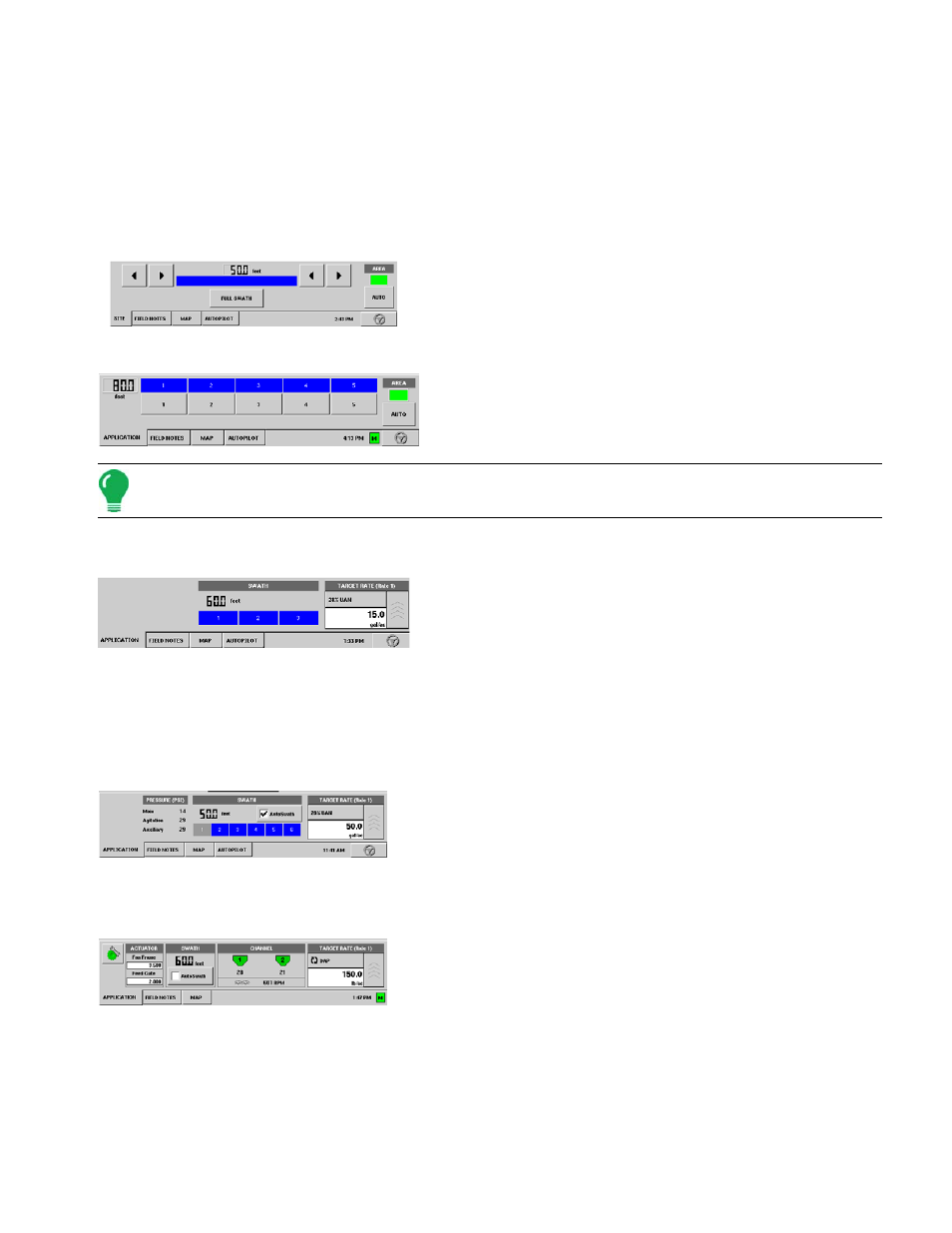

Application Tab - Site Verification
The configuration shown is typical for Site Verification. The
Full Swath width is displayed and Area Logging is active.
Application Tab - Flow Meter
The configuration shown below is typical for rate logging
using a flow meter. You can turn off individual section
logging on the display if you wish to apply product using less
than a full swath width.
Note: Turning the Flow Meter section logging on and off in the display does not actually affect their in-field
performance – only their display logging status.
Application Tab - Serial Controller
The Application Tab shown below is a typical configuration for
a Serial Controller controlling a three-boom implement.
Notice that, unlike the DirectCommand Run screens shown
on the NEXT page, no pressure information is communicated
to the display, as this cannot be done for serial configurations. On the right is the Target Rate Application
button.
D
IRECT
C
OMMAND
R
UN
S
CREEN
E
XAMPLES
Application Tab - Liquid Application for DirectCommand
The Application Tab shown below shows a typical configuration
for a liquid application in DirectCommand. The left portion of the
Application Tab shows pressure sensors. In the center is the
AutoSwath status. On the right is the Target Rate Application
button. For more information, see “Liquid Application Controls” on page 242
Application Tab - Spinner Spreader
The Application Tab shown below is a typical configuration for a
Spinner Spreader with a New Leader Linear Actuator. The
Spreader Control button is shown at the top left. For more
information, see
“Spinner Spreader Application Rate Control Tab” on
page 234 . and “Spinner Spreader Control Settings” on page 235 .
