To turn individual sections on or off press the section button.
The full swath width of the active sections is displayed in the
upper left hand corner of the tab. The master switch on the
right side of the tab controls area logging.
• If the master switch is set to Off, no area will be logged.
• When the master switch is set to Auto, the display will log data.
• If an implement switch is being used, it must be set to Auto, and the Implement Switch must be in the data
logging position, the master switch will be green.

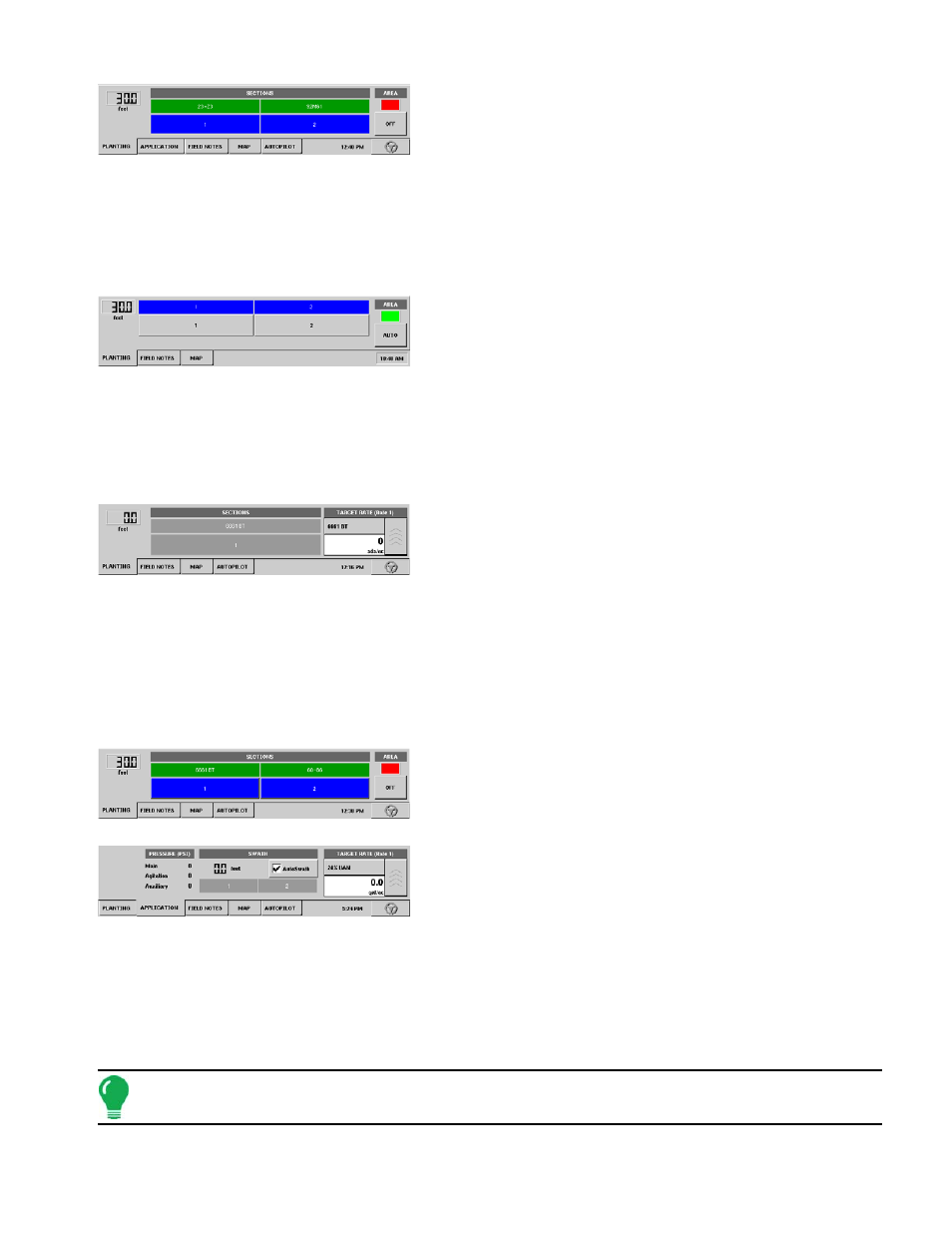

Planting Flow Meter (Shaft Speed Sensor)
The Planting Tab is where area is controlled for planting with
a Shaft Speed Sensor. The planter sections will have buttons
with section numbers on them. When the section is on and
logging data, it displays a blue bar above it. If it is turned off
and not logging data it will have a grey bar above it. To turn individual sections on or off, press the
Section button. The full swath width of the sections that are turned on is displayed in the upper left-hand
corner of the tab. The master switch on the right side of the tab controls area logging. If it is set to Off, no
area will be logged.
Serial Controlled Planting
The Planting Tab is where the rate control of a serial
controller takes place. When the section is active and is
logging data, it will have a blue bar above it.
To load a map-based prescription file, press the Load Rx
button. This will allow you to choose a prescription file off of the external card. Once selected the button
will change to Clear Rx. This will allow you to clear out the selected prescription.
To manually change the Target Rate, press the arrow button in the target rate box. In the Target Rate
dialog, you are allowed to set two preset rates. Press the Preset Rate 1 or Preset Rate 2 button and use
the up and down arrow buttons to change the rate. Press OK when finished.
Multiple Implement Configurations
If you are using a configuration with multiple implements,
each implement is displayed on its own tab.
Planting Simultaneously with Starter Fertilizer
Target Rate
Certain planting configurations use the Target Rate button, as shown in the right-hand side of the tab
immediately shown above. These planting configurations include:
• A serial control configuration with a hydraulic drive, such as a Rawson ACCU-RATE.
• A Liquid DirectCommand module.
Note: For more information on the Target Rate button and screen, see
