PPLICATION Loads the Boom Height Control Options window, which allows you to change the mode,
sensitivity and target height. For more information, see
“Boom Height Control Options” on
page 223 .
• Mode
Indicates whether the Boom is in Crop Mode or Soil Mode.
• Target Height
The desired boom height above the ground (for Soil Mode), or the crop canopy (for Crop Mode).
• Sensitivity
Adjusts the boom response. Higher values make the height control more responsive.
• Temperature
Shows the measurement of the outside ambient air temperature.
The Engage button enables boom height control. This button can toggle back and forth
between Automatic Mode and Manual Mode.
• When you enable Automatic Mode, this button turns blue and the display beeps three times.
• When you disable Automatic Mode on any part of the boom and the display switches to Manual Mode, this
button turns black and the display beeps twice. If less than the full boom remains in Manual Mode, the display
will continue beeping twice every three seconds.
B
OOM
H
EIGHT
C
ONTROL
O
PTIONS

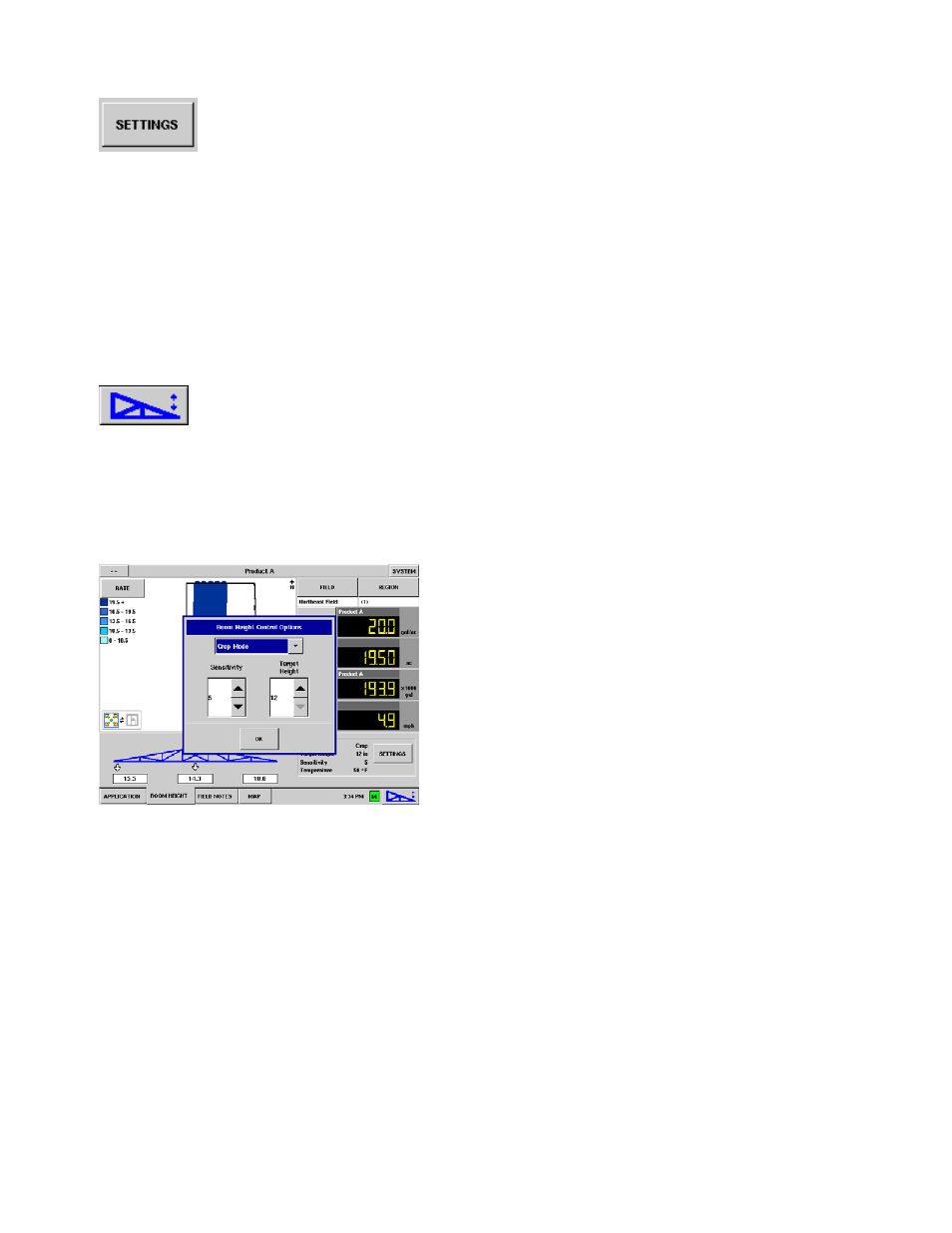

You can adjust the mode, sensitivity and target height by
pressing the Settings button on the Run Screen. The Boom
Height Control Options window appears, as shown.
The drop-down menu is where you can choose one of two modes:
• Soil Mode
UC5 controls boom height relative to the distance from the soil.
• Crop Mode
UC5 controls boom height relative to distance from the crop canopy.
• Sensitivity
Adjusts the boom response. Higher values make the height control more responsive; settings range from
0-10.
• Target Height
User-defined desired boom height in relation to the selected control mode.
Target Rate
