161
P
LANTING
The diagnostic for ground drive transmission of the planter, this signal of which is sent from the Planter
Monitor Module (PMM) on the planting unit. Shown in pulses per second and speed of the planter.
• Active Alarms
The Active Alarms button displays the Active Alarms window, which is described further in
“Alarms on KINZE
Planter Monitor” on page 163 .

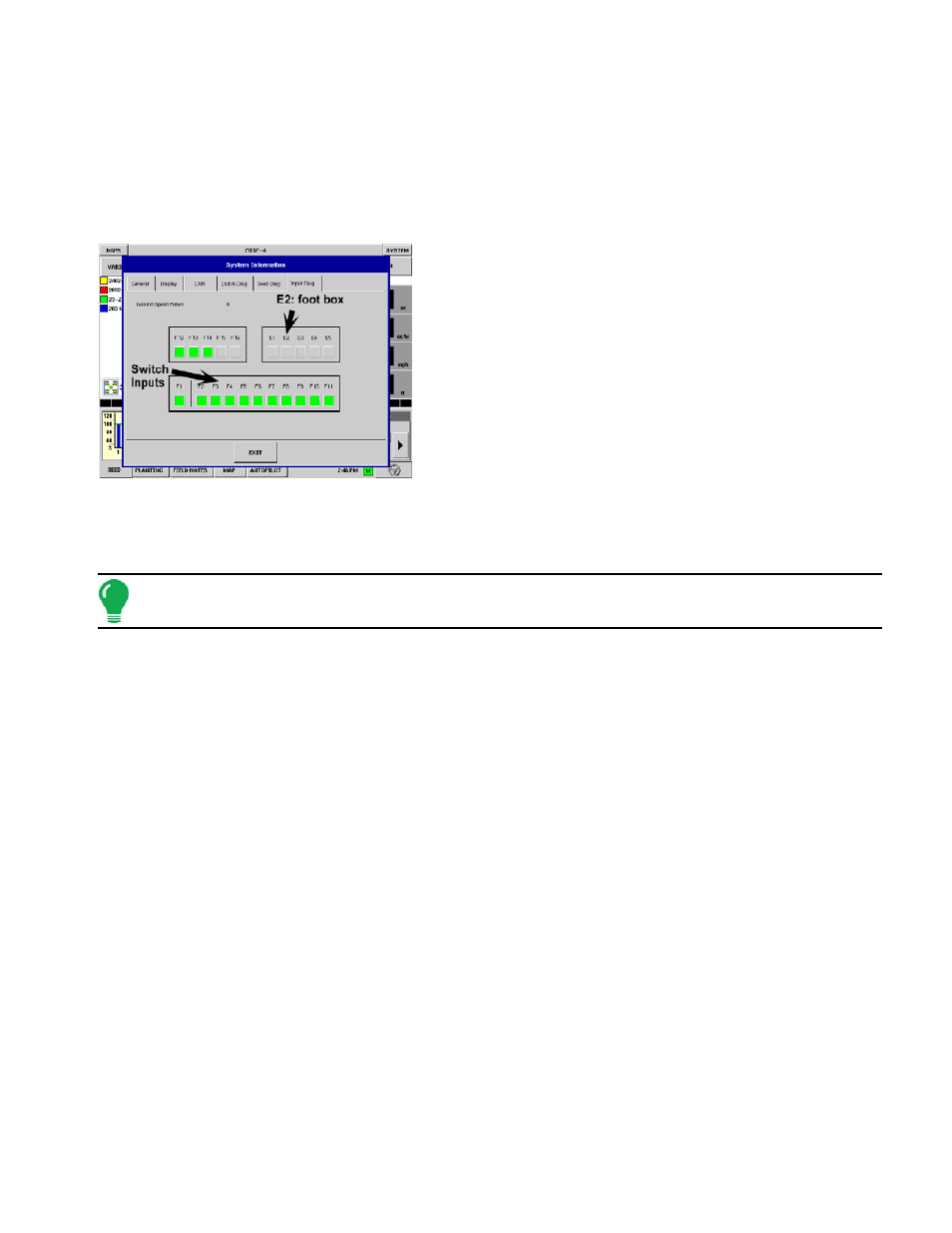

• Input Diagnostics
The Input Diagnostic Tab lists the number of Ground Speed
Pulses coming in from the radar to the Auxiliary Module.
Additionally, the bottom row of boxes lists the active
switches. These color-coded boxes display the following
diagnostics:
• Green
The switch box is connected to the Auxiliary Module in the On
position.
• Black
The switch box is connected to the Auxiliary Module, but is in the
Off position.
• Grey
The switch box is not connected to the Auxiliary Module.
Note: The E2 position is the indicator for the foot box.
T
ROUBLESHOOTING
Z
ERO
F
LOW
O
FFSET
V
ARIATION
Zero flow offset is an operator-entered setting. Zero Flow Offset represents the maximum duty cycle
that is sent to the control valve without producing any hydraulic flow from the PWM valve. Using too
high of a Zero Flow Offset value can cause the product control system to not properly control low
rates. Zero flow offset may vary somewhat by system and by operating conditions.
Below, problems and causes relating to Zero Flow Offset are listed. Use the Confirmation Techniques
to determine if you have this problem; and then follow the appropriate solution.
Problem
• Drive is slow to begin turning.
Possible Cause
• Zero Flow Offset is set too low.
Confirmation Technique
1. Turn the Master Switch off. Enter a manual ground speed and enter a new region.
2. From the Run screen, open the product application rate window, and highlight the appropriate product.
Select Manual control mode.
3. Switch the Master Switch on.
4. Press the up button one time. Now press the down button one time. If the drive is not turning, the Zero
Flow Offset is likely to be too low.
