142

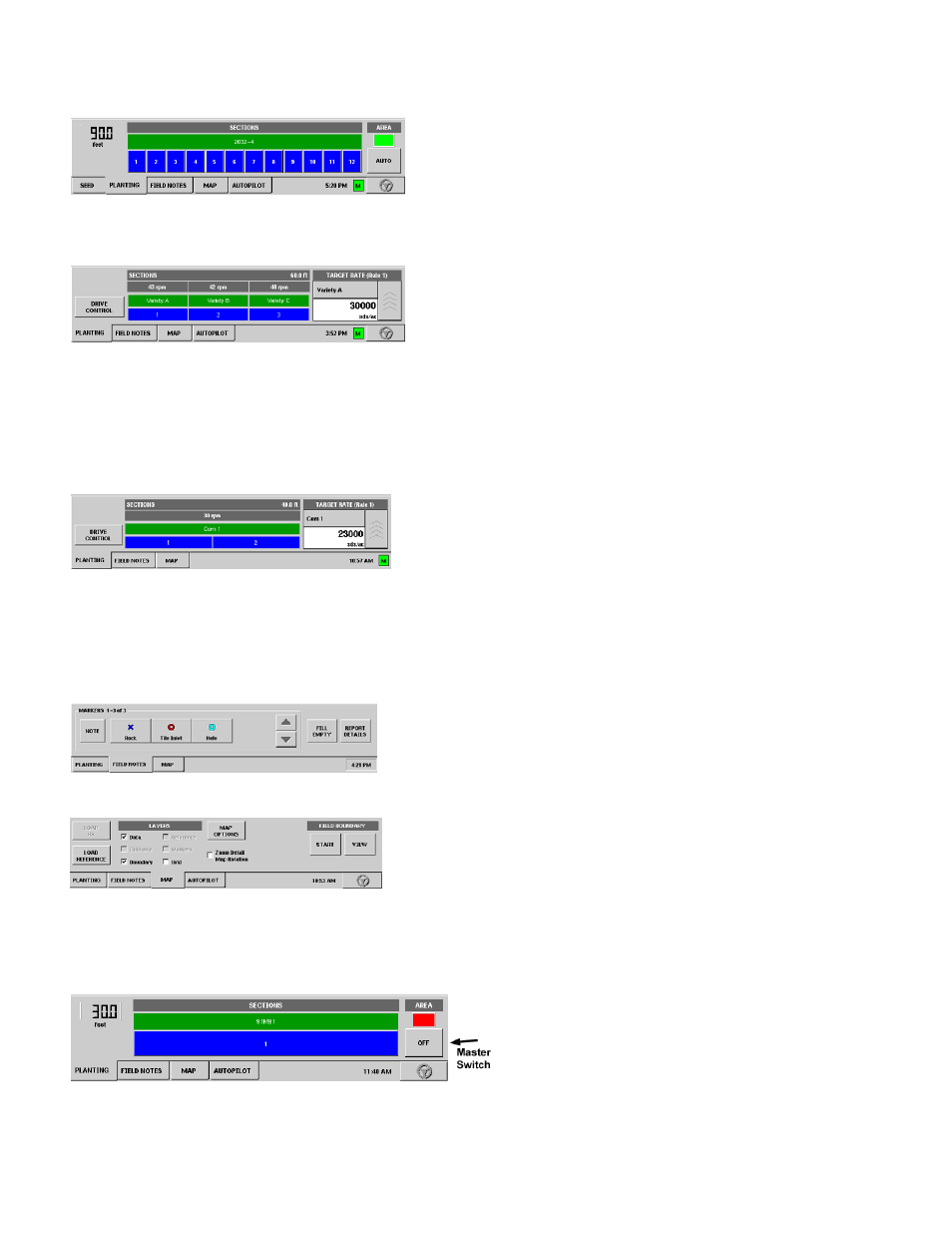

Planting Tab (for Row Shutoff)
The appearance of the Planting Tab varies, depending
upon whether you are using the Row Shutoff, a
SeedCommand product. For more information, see
“Row
Shutoff Configuration” on page 119 . The example below
shows an implement with 12 sections.
Planting Tab (for Stepper Seed Control)
The Planting Tab for a Stepper Seed Control configuration
is shown with three seed control drive motors. The top
blue bar shows the speed of the seed meter, in RPM, and
changes to a grey color when the drive is off. The green
bar shows the names of the varieties planted, and
changes to a grey color when the drive is off. The bottom row shows the number of sections on the
planter. The Drive Control button summons the Planter Control window, where you can perform a
Stepper Seed Meter calibration, or prime the Seed Meter and adjust the Seed Meter Calibration number.
For more information, see
“Stepper Seed Rate Control, Run Screen Operation” on page 153 .
Planting Tab (for Hydraulic Seed Control)
The appearance of the Planting Tab also varies if you are
using the Hydraulic Seed Control feature, with one or more
hydraulic drive motors. The top blue bar shows the speed of
the seed meter in RPM., and changes to a grey color when
the drive is off. The green bar shows the name of the variety
planted and changes to a grey color when the drive is off. The bottom row shows the number of sections
on the planter. The Drive Control button summons the Planter Control window, where you can enter a
meter calibration number, perform a seed meter calibration, or use the Seed Meter Prime.
Field Notes Tab
Map Tab
A
REA AND
R
ATE
L
OGGING
/ C
ONTROL
Planting Tab - Site Verification
The Planting Tab is where area is controlled
for site verification and split planter logging.
The planter sections display buttons that have
section names. When the section is active and
logging data it will have a blue bar above it.
