265
A
PPLICATION

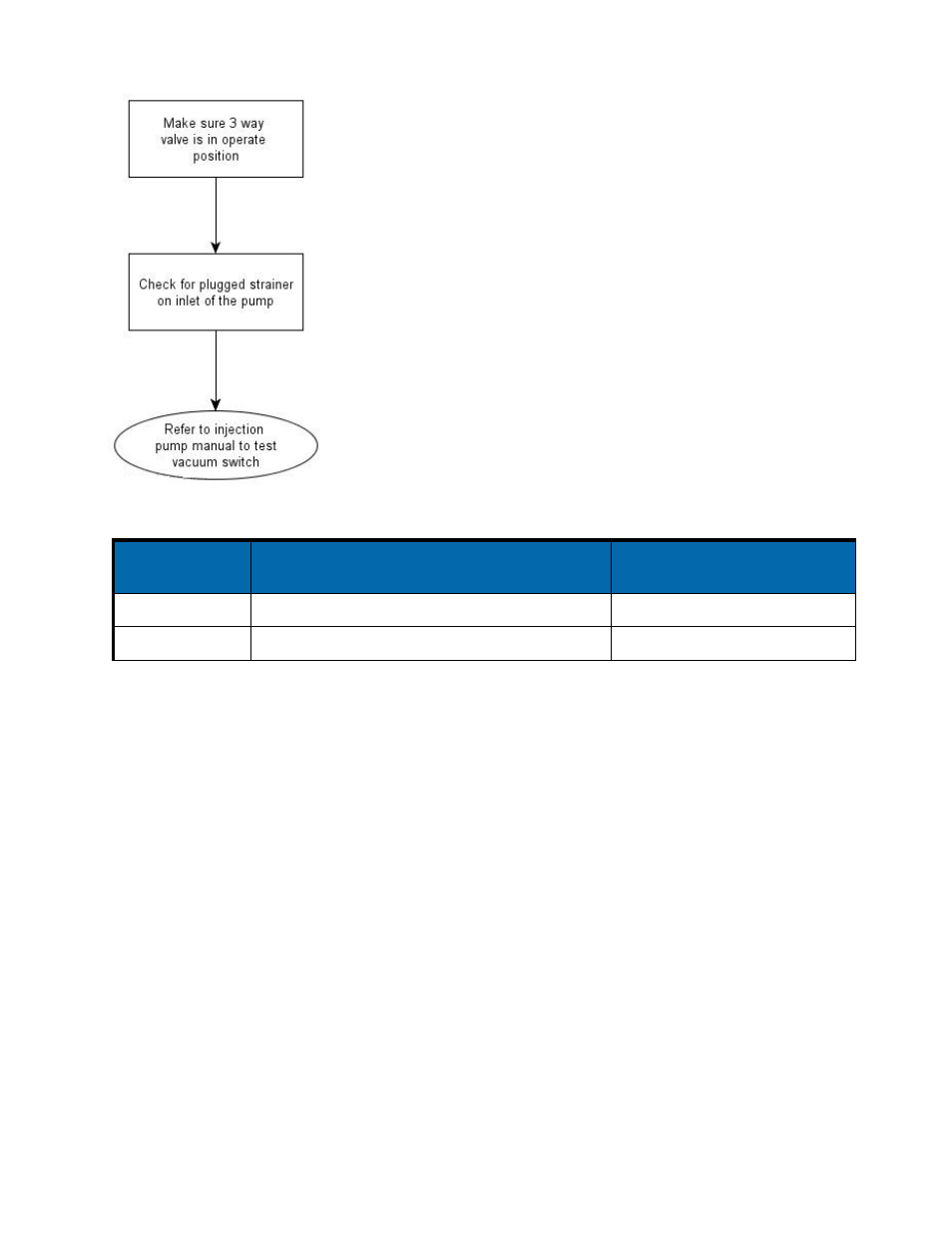

Direct Injection: Inlet Restriction
The injection pump has a vacuum switch that is used to warn operators
of any restriction at the inlet of the pump. The sensor is a normally
closed switch that opens if a restriction is encountered in the injection
system. A warning will be displayed for the operator if the vacuum
switch opens due to restriction. See table below for pin locations. The
operator can test the system by unplugging the sensor, which will
trigger the warning. If the operator jumps pins A and C, the warning will
end.
V ACUUM S WITCH P IN O UTS
T
ROUBLESHOOTING
D
IRECT
C
OMMAND
G
RANULAR
A
PPLICATIONS
Run screen Granular channel(s) green light spreader indicator will not turn on
1. Make sure ground speed is registered a value greater than zero on the display.
2. Verify a target rate greater than zero is entered into the display.
3. Check the switch status found on the Run screen under System and Input Diagnostics. As the master
switch is turned on and off, the Input Diagnostics window should change from black to green (if they do
not, then refer to the installation instructions to verify switch connections).
4. Check high current connection into the Granular Control Module.
Master switch will not turn on when the foot pedal is on.
Make sure the Master Switch Input is set to “External 2” under the Auxiliary Input Settings.
AutoSwath turns on the booms too fast or too slow.
Check GPS offsets in the vehicle setup to verify all of the measurements are correct.
AutoSwath feature is not shown
The display must have the AutoSwath feature password-unlocked before the feature is available to the operator.
AutoSwath is checked on, but the spreader will not turn on.
1. Make sure the ground speed is registering a value greater than zero on the display.
Module Auxiliary Connection
12-Pin Socket
3-Pin WP Tower
Power (12V) 2 C
Signal 10 A
