307
H
ARVEST
S
YSTEM
D
IAGNOSTIC
B
UTTON
The System button contains information about the flow rate,
moisture, temperature, elevator speed, and ground speed of
the combine. Technical support may request that you look at
this screen to help in diagnosing a problem.
For generalized Diagnostic information, such as memory,
display, CAN device and firmware version information, see
the General section. For more information on LED diagnostic
states, see
“Module LED Diagnostic States” on page 174 in the
Appendix.

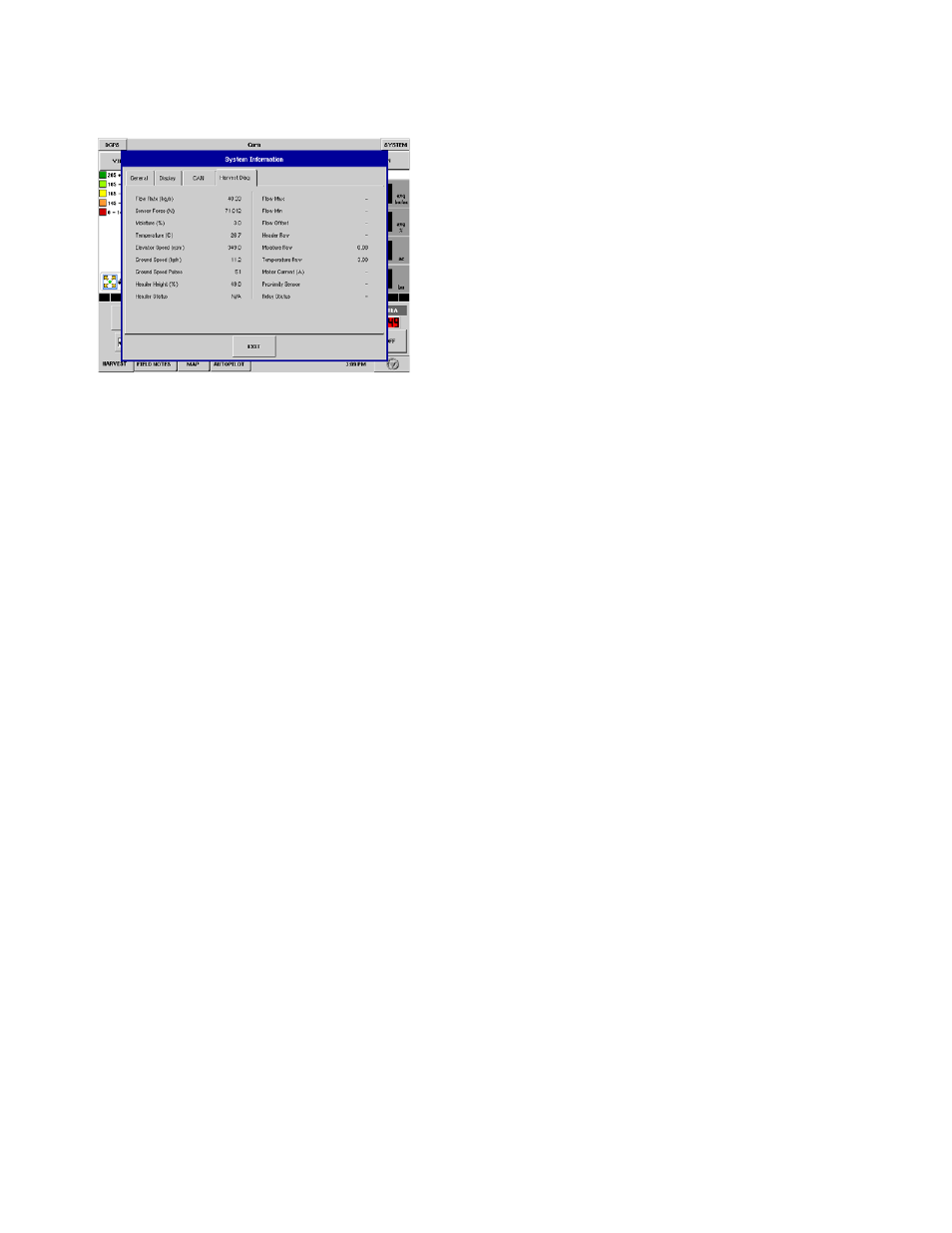

The Harvest Diagnostic Tab includes the following information:
• Flow Rate
Grain flow rate, shown in kilograms per second.
• Sensor Force
Force of grain flow, shown in Newtons.
• Moisture
Grain moisture.
• Temperature
Air temperature, shown in Celsius.
• Elevator Speed
Shown in revolutions per minute.
• Ground Speed
Shown in kilometers per hour.
• Ground Speed Pulses
Shows the number of pulses from the combine.
• Header Height
Percentage of header height.
• Header Status
Up or Down.
• Flow Max
Raw flow value used for diagnostic purposes.
• Flow Min
Raw flow value used for diagnostic purposes.
• Flow Offset
Raw flow value used for diagnostic purposes.
• Header Raw
Raw value of header sensor.
• Moisture Raw
Raw value of moisture sensor.
