The variety map displays a background map of varieties that were logged with the during
planting. This map can be used by the display to track varieties during harvest. This map
is also known as the reference map. This legend is not editable.
M
AP
L
EGEND
The legend for yield and moisture can be edited, but the variety (reference) legend cannot. To edit these
legends press on the range portion of the legend.
The average, spacing, colors, and ranges can be edited for yield and moisture maps. Use the drop down
boxes and arrows to adjust these values.
If the automatic legend option is selected the average will automatically set itself to the field average and
update as the field average changes.
If you choose to set the current legend as the default legend for all regions of the same product select
the save as product legend option. This will also reset the legend settings under the Crops Tab. To reset
to the default values go to Setup, Harvest, Crops and press the Edit Legend button
To reset this legend to the values saved under the Product tab press the Reset to Product Legend
button.

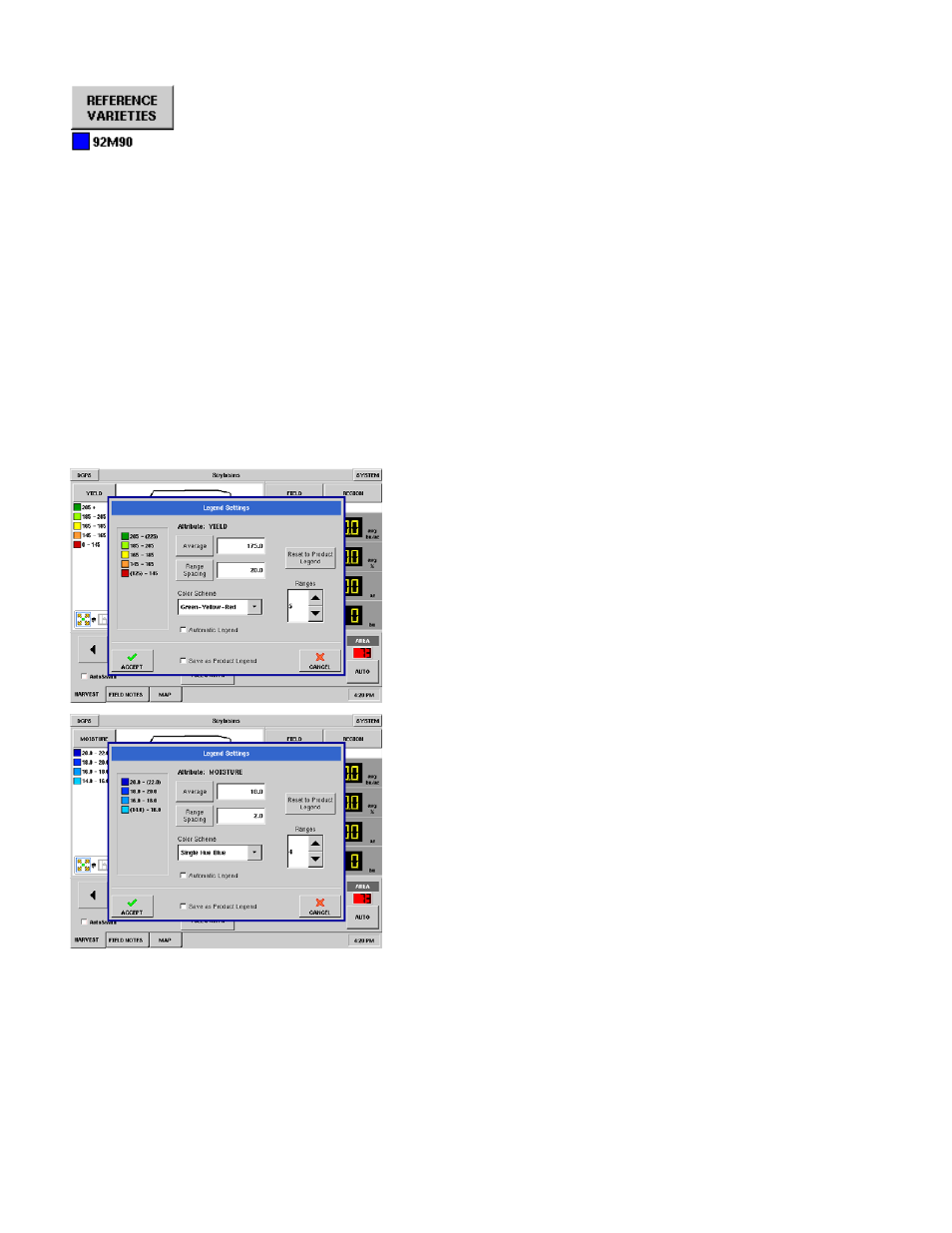

Yield legend settings
Moisture legend settings
