43
G
UIDANCE
G
UIDANCE
G
UIDANCE
T
AB

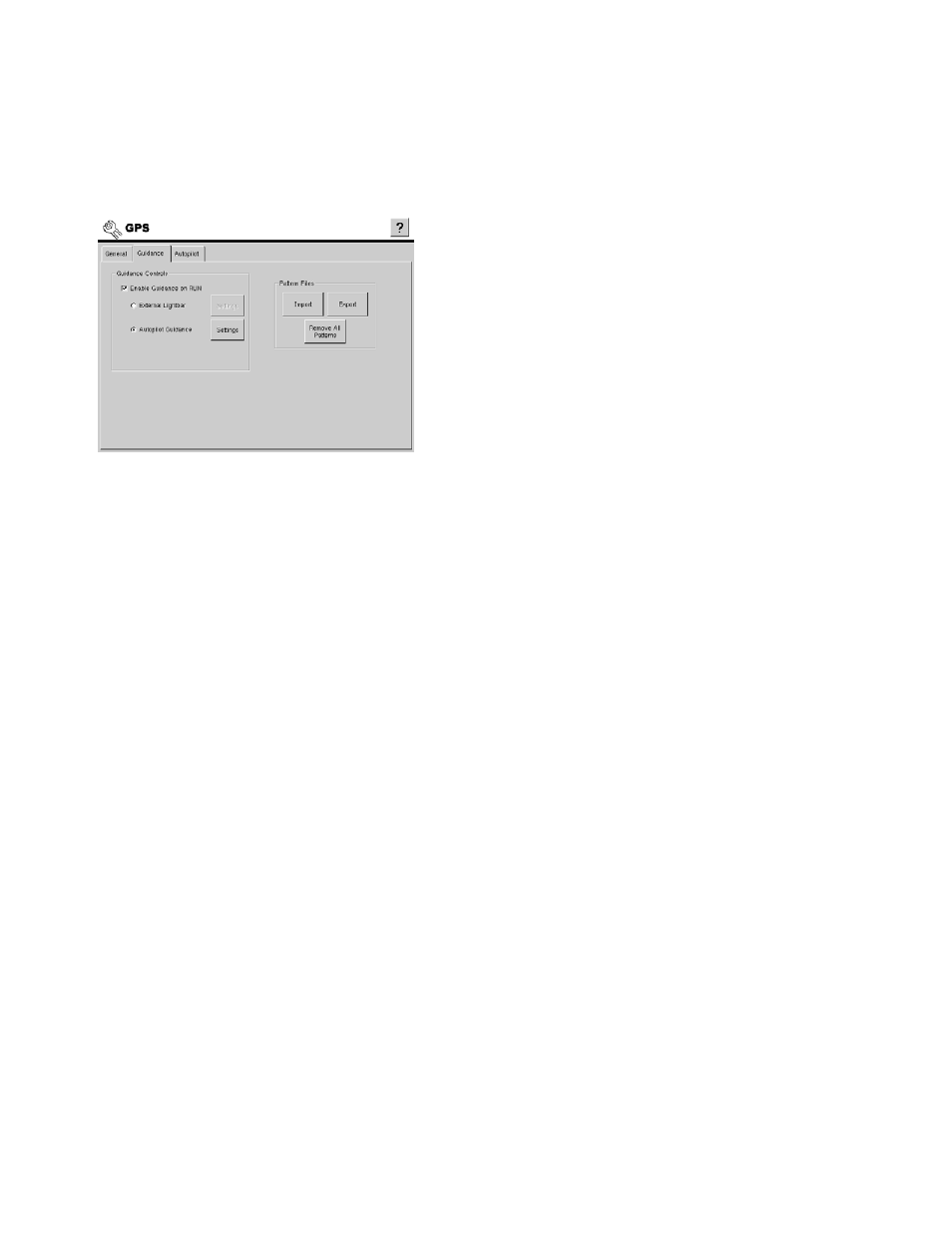

The Guidance Tab, located on the GPS screen includes
some general settings for the Autopilot and External Lightbar
features. Further information on Autopilot functions can be
found at the Autopilot tab on the GPS screen.
For a menu detailing GPS Guidance Settings, see
“GPS/Guidance Menu Tree” on page 172 .
• Guidance Controls
The Guidance Controls area of the Guidance Tab includes information specific to the external lightbar and
Autopilot Guidance.
• Enable Guidance on RUN
Checking this box allows you to use the settings shown on the Autopilot tab on the Run screen.
• External Lightbar option button
Press this option button if you wish to use a lightbar in addition to the display.
• Autopilot Guidance option button
Press this option button if you have purchased the display's autopilot feature.
• Settings Button
This button will appear next to either the External Lightbar or Autopilot Guidance option buttons, depending
upon which you have selected.
• For information on the External Lightbar settings, see “TSIP Lightbar General Settings” on page 45 .
- For information on the Autopilot Guidance settings, see “Autopilot Guidance General Settings” on
page 44 .
• Pattern Files
The Pattern Files area of the Guidance Tab allows you to move .pat (pattern) files between the display and
the compact flash card.
• Import
Imports guidance pattern files from the compact flash card. For more information, see
“Pattern
Import/Export” on page 69 .
• Export
Exports guidance pattern files from the display to the compact flash card. Upon pressing this button, the
Guidance Pattern window appears. Choose the desired Grower and Field and press the Accept button. To
export all field patterns, clock the Export All Field Patterns check box and press Accept. For more
information, see
“Pattern Import/Export” on page 69 .
• Remove All Patterns
