PPLICATION
S
PINNER
S
PREADER
S
ETTINGS
- F
AN
F
RAME
& F
EED
G
ATE
A
CTUATOR
Spinner Spreader operators using a Fan Frame and Feed
Gate Actuator must calibrate these settings each time that
they change the granular product applied. Each calibration
procedure is described below.

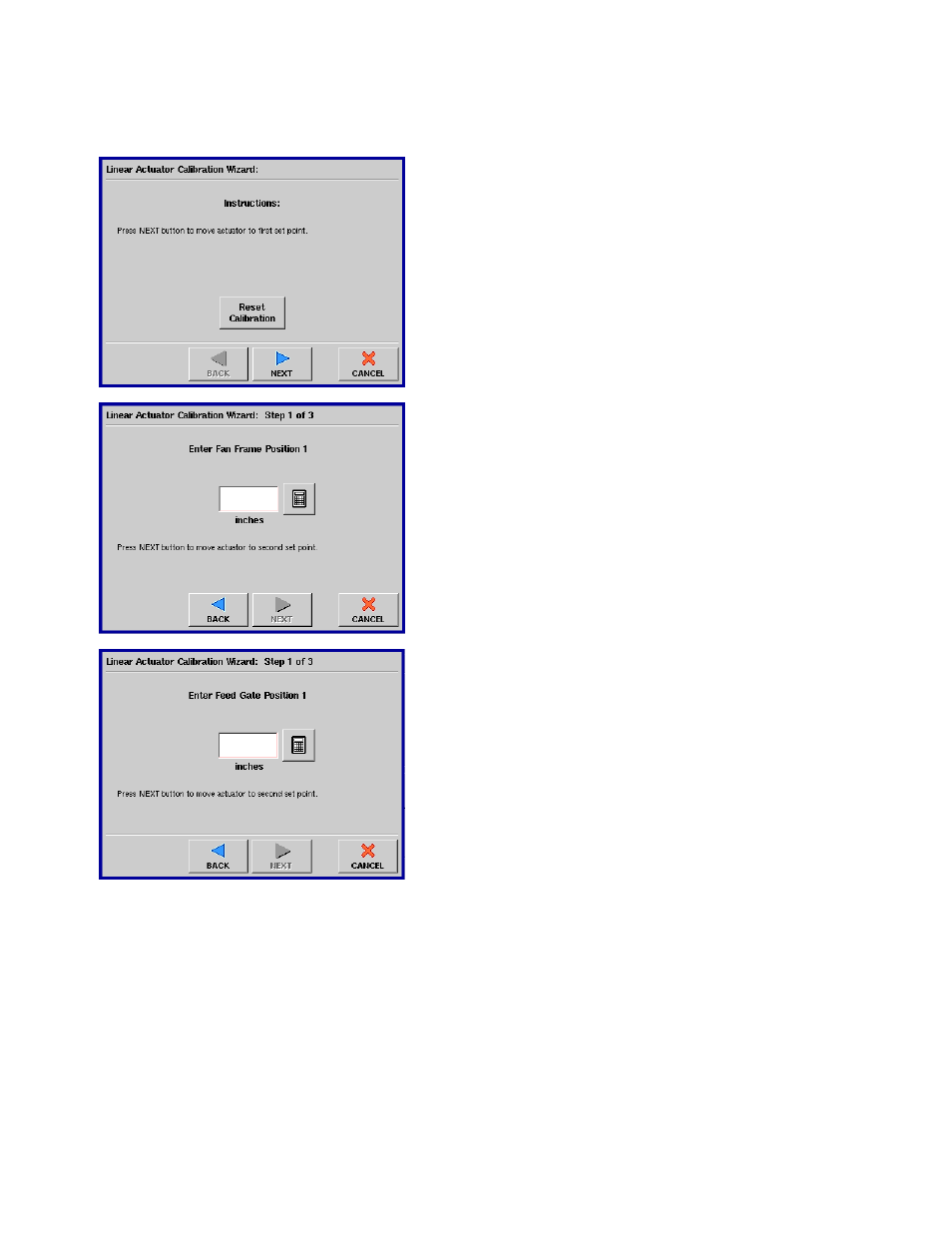

Pressing either the Fan Frame Actuator or Feed Gate
Actuator button loads the Linear Actuator Calibration Wizard,
as shown at left. Press the NEXT button to move the actuator
to the first set point.
1. If you pressed the Fan Frame Actuator button on the
Controller Tab, you may use the numeric keypad to enter the
position of the first set point. Press NEXT to continue.
2. Enter the position of the second set point. Press NEXT to
continue.
3. Calibration Complete. Press Finish to accept the new
calibration or Cancel to continue using the previous
calibration.
1. If you pressed the Feed Gate Actuator button on the
Controller Tab, you may use the numeric keypad to enter the
position of the first set point. Press NEXT to continue.
2. Enter the position of the second set point. Press NEXT to
continue.
3. Calibration Complete. Press Finish to accept the new
calibration or Cancel to continue using the previous calibration.
