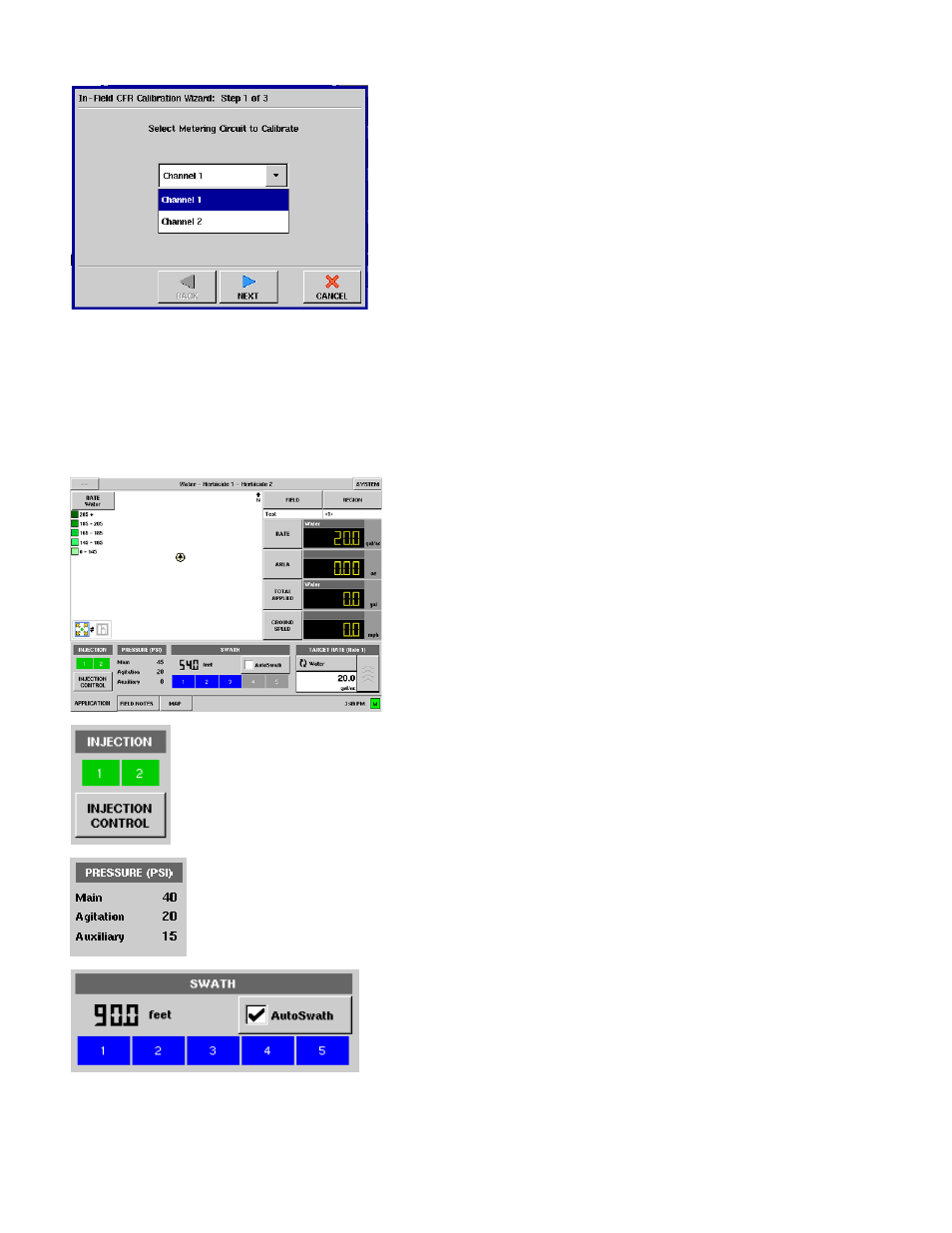

1. Select Metering Circuit to Calibrate
Select the channel to calibrate, and press NEXT.
2. Enter Actual Weight
The Accumulated Weight is shown in the top portion of the
window.
Use the numeric keypad to enter the Actual Weight, and press
NEXT.
3. Calibration Complete
A message appears, stating that your calibration is complete,
and showing the CFR amount, in cubic feet per revolution.
Press Finish.
L
IQUID
A
PPLICATION
C
ONTROLS
L
IQUID
C
ONTROL
A
PPLICATION
R
ATE
T
AB
The Application tab for liquid application control has several
buttons and status display areas that are specific to various
liquid product control configurations. The following table and
pages outline the details of these controls, which may differ
depending upon your specific configuration.
If you have included one or more Direct Injection controllers in the configuration, the
number of these controllers appears in the box above the Injection Control button. This
button, shown at left, displays green for each injection module when the discharge sensor
is detecting flow from the pump. Press the Injection Control button to prime the Injection
Pump. For more information, see
“Priming an Injection Pump” on page 206 .
Displays pressure from up to three different pressure sensors.
Displays swath on/off status. The example at left represents a 5-
section boom with all the booms turned on. Status indicators 1-5
are colored blue when the respective boom sections are turned
on.
