Move the header above and below the Stop Height. When below the Stop Height the display reads
Down; when above the Stop Height the display reads Up.
To clear Min, Max, and Stop Height values for all headers, press Reset All.
WARNING: If Reset All is pressed the sensor will have to be calibrated for all headers!
H
EADER
O
FFSET
If the header of your vehicle is mounted asymmetrically to the vehicle's center, this can affect the
accuracy of the GPS data you are receiving. By pressing the Header Offset button, located on the
Header Tab, you can compensate for the distance between the center of the vehicle, and the center of
the header's swath.
1. Measure distance
First, measure the distance between the GPS antenna and the center of
the header's swath.

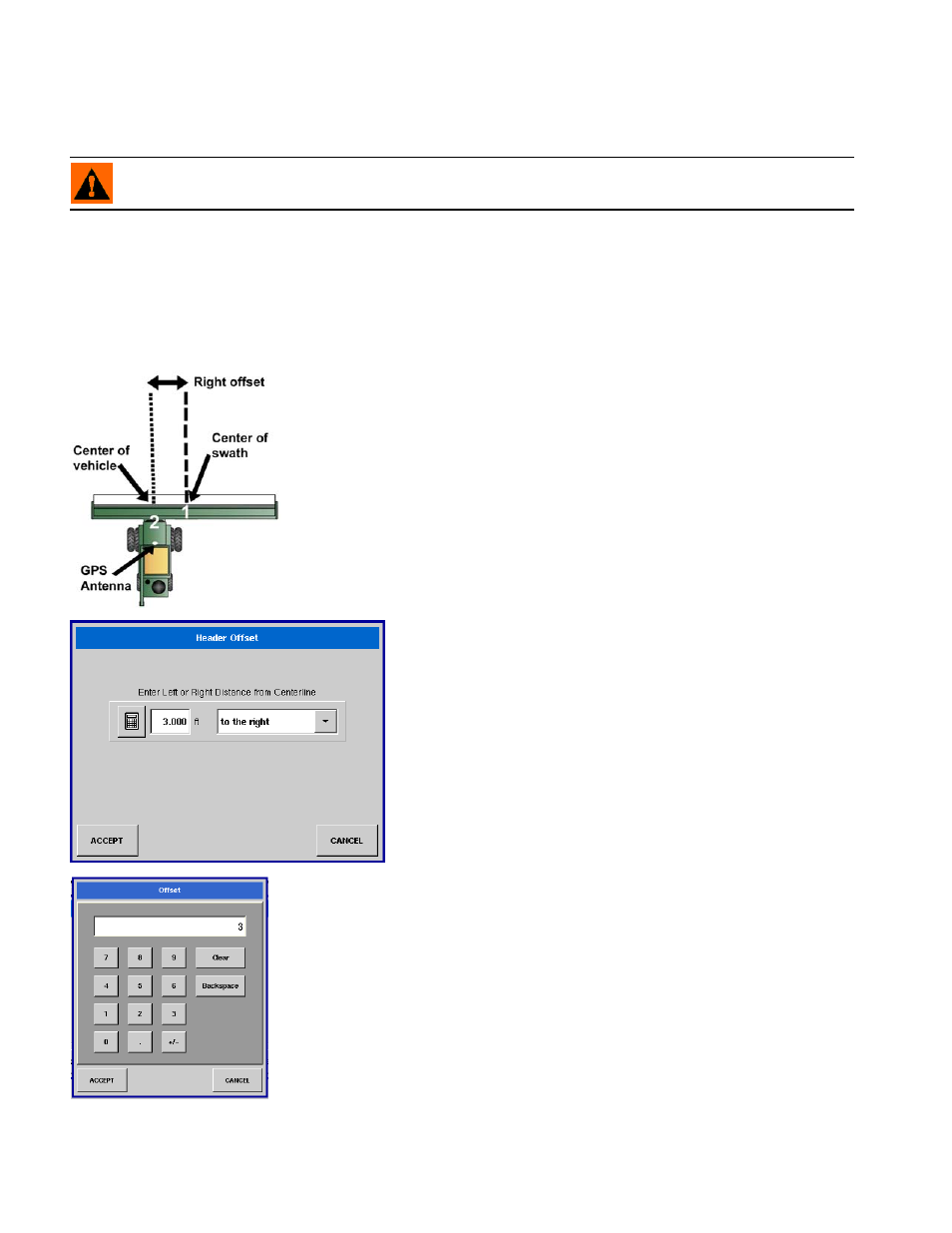

2. Pull up the Header Offset window
Select the Header tab and then select a header from the
Header list. Press the Header Offset button on the Header
tab. The Header Offset window appears, as shown at left.
3. Enter the distance amount
Enter the distance amount by using the Calculator button.
The Offset window appears, as shown at left.
When finished, press the Accept button twice.
