262

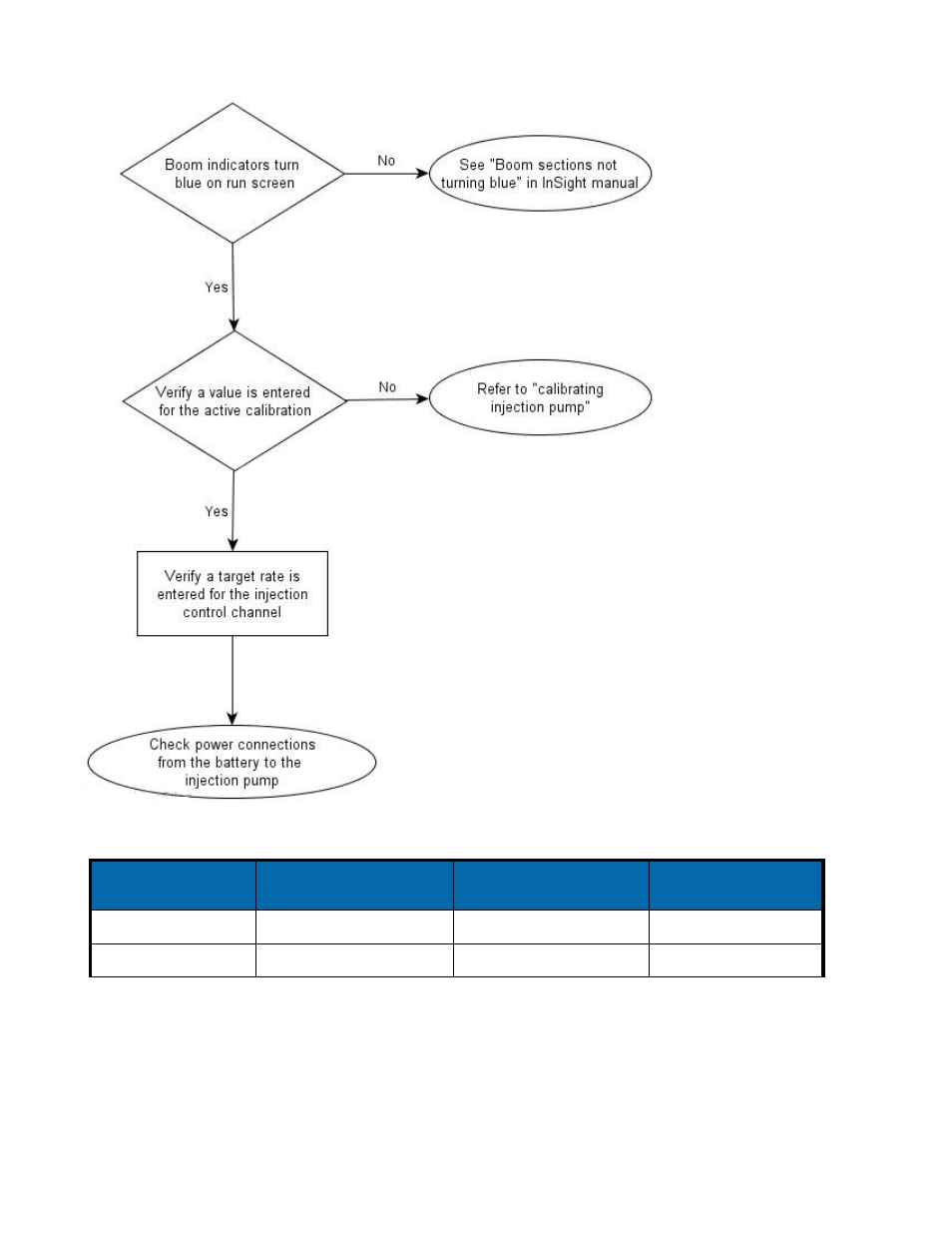

Direct Injection:
Pump Doesn’t
Run

Power can be checked
at multiple locations.
First is the connection
at the Injection module
where the battery
power cable plugs in.
The second location is
the output connection
found on the injection
module. The third is
found at the 2 pin
weather-pak tower
found on the injection
cable PN: 4000851-3.
See table below.

B

ATTERY

P

OWER

P

IN

O

UTS

2 Pin Deutsch Plug

2 Pin Deutsch

Receptacle

2 Pin WP Tower

Power 12 V

1

1

A

Ground

2

2

B
