• FIELD button
Functionality changes based upon the status of the master switch. If the master is off it allows you to change
grower, farm, field, and configuration. If the master status is on it allows you to view field totals. For more
information, see
“Field Button (While Not Logging)” on page 219 and also “Field Button (While Logging)” on
page 220 .
• REGION button
Allows you to change and name regions of the field. If a flow meter or serial control configuration is being
used it will also allow you to choose the controlling product and the units it is recorded in.
• SYSTEM button
Displays diagnostic information about the internal memory of the display, display information, and CAN
module information. For more information, see
“System Diagnostic Button” on page 257 .
• DGPS button
R
UN
S
CREEN
B
UTTONS
- S
ITE
V
ERIFICATION
The following Run Screen buttons are found on site verification configurations. These buttons are not
shown if you are using a Serial Controller.

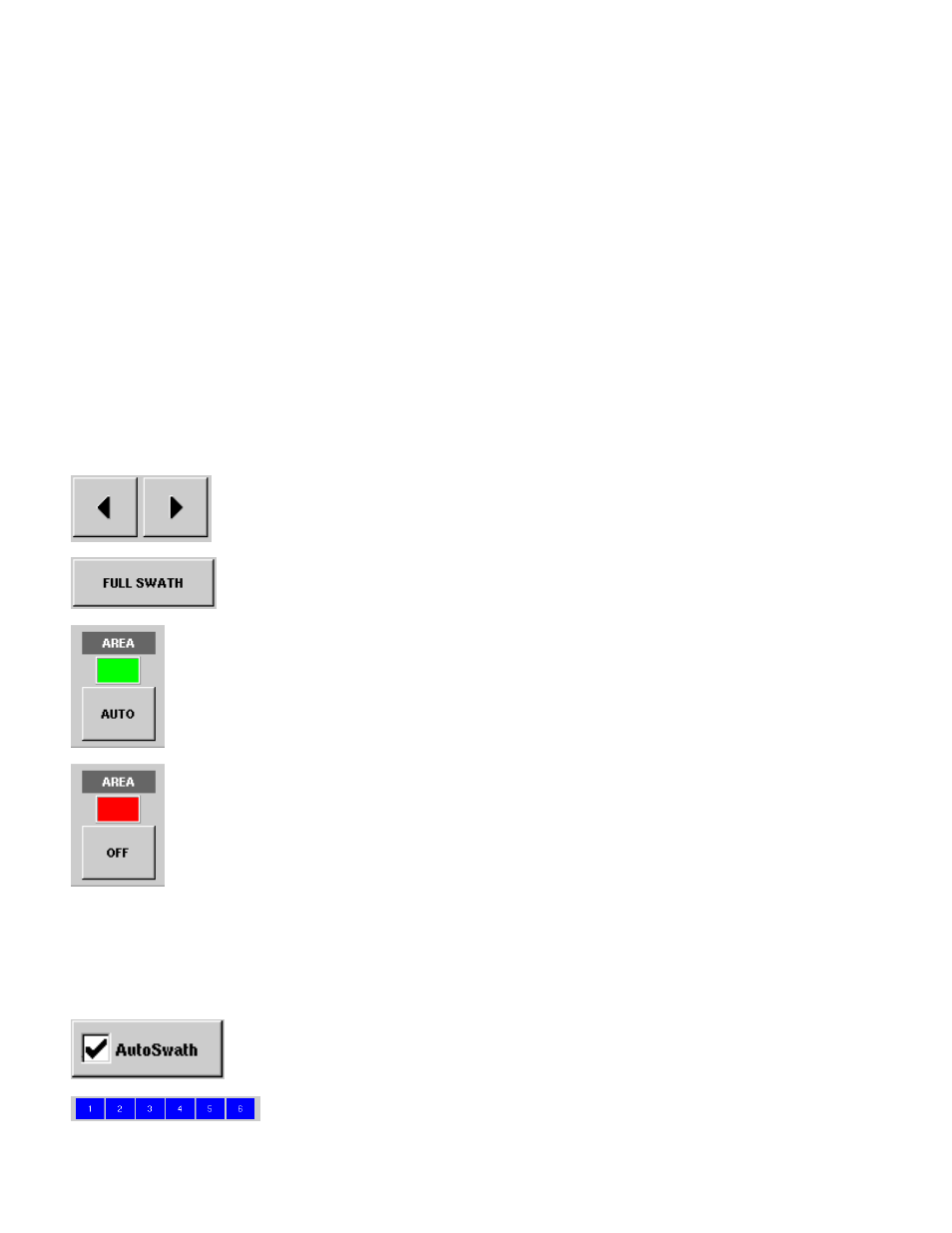

On Site Verification configurations, the swath bar allows you to change the amount
of swath that is being mapped for area calculation. To adjust the swath width use
the arrow keys on either side of the swath display.
The Full Swath button allows you to go from any partial swath back to the full swath
position.
On site verification configurations, the master button controls area logging. When the
switch is green, area is being recorded and displayed on the map.
On site verification configurations, when the master button is set to OFF, the area is not
being recorded and the map will stop showing new information being logged. The switch
will remain red until the button is pushed again to set it to Auto.
R
UN
S
CREEN
B
UTTONS
- D
IRECT
C
OMMAND
The following Run Screen buttons are found on DirectCommand configurations such as Spinner
Spreader configurations, Strip-Till configurations, and various liquid product application configurations.
Application Buttons and indicators (for Direct Command)
Press the AutoSwath button to enable the AutoSwath feature. For more
information, see
“Automatic Swath Control Settings” on page 172 and “Automatic Swath
Control” on page 243 .
The boom section indicators show the active and inactive booms used on a
liquid DirectCommand configuration.
