44
This will remove all guidance pattern files from the display. Upon pressing this button, the Remove Pattern
window appears, with a message stating "All Guidance Patterns will be permanently erased from memory."
Press the Accept button to remove all patterns from the display's internal memory.
A
UTOPILOT
G
UIDANCE
G
ENERAL
S
ETTINGS

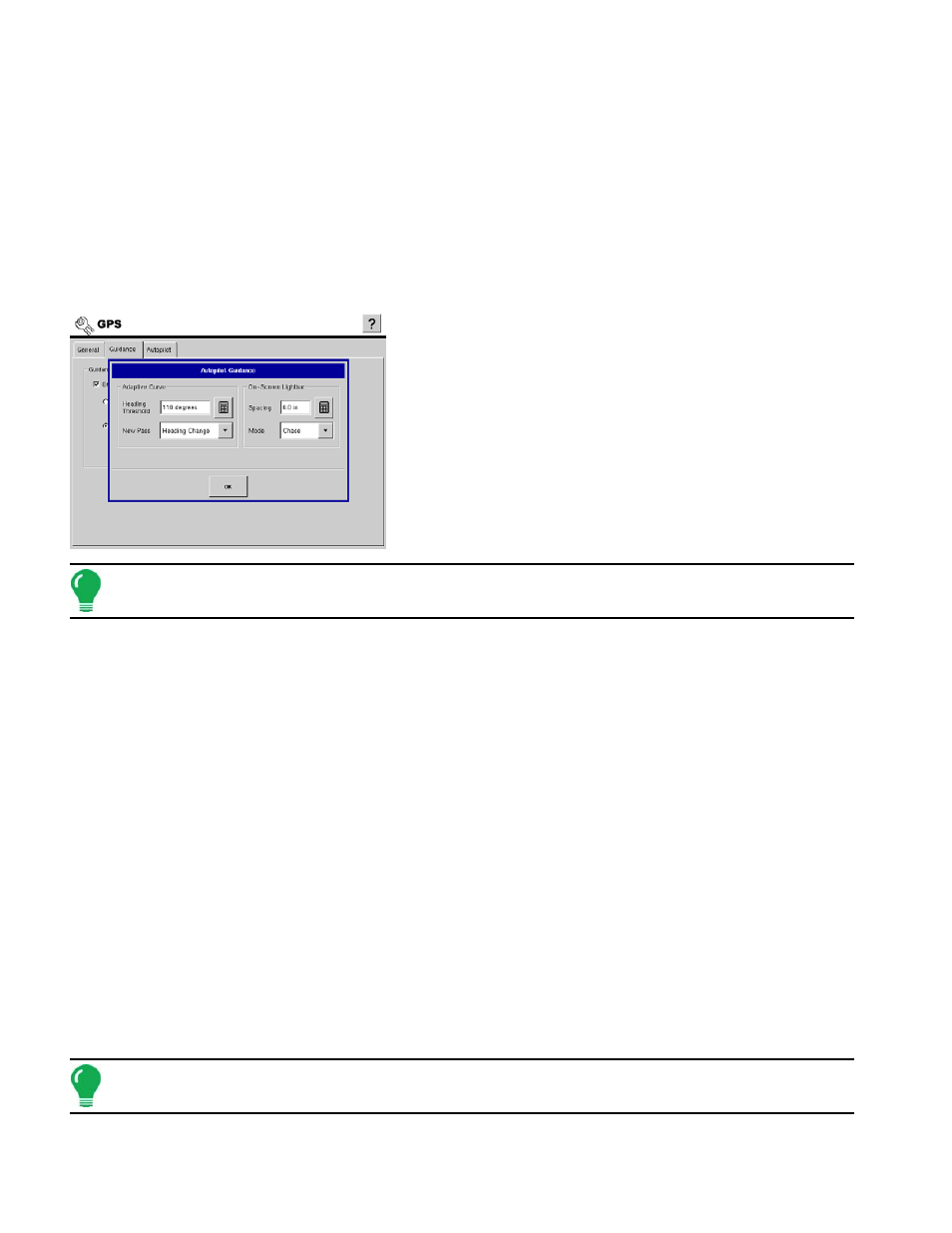

If you select the Autopilot Guidance option button on the GPS screen's Guidance Tab, the Autopilot
Guidance window appears as shown. At this window, you can adjust the display's logging information for
new passes and lightbar operations.
For a detailed menu that includes Autopilot Guidance Settings, see
“GPS/Guidance Menu Tree” on
page
172
.
Adaptive Curve
The Adaptive Curve area of the Autopilot Guidance window
contains settings that tell the Autopilot where to log a new pass.
• Heading Threshold
Enter in the degree of turning angle your vehicle will need to
make before creating another pass.
Note: You should always set this Heading Threshold number past 90 degrees. The default number is 110
degrees.
• New Pass
This sets the conditions for the display to log a new pass. Select either Area Count or Heading Change.
- Area Count generates the next pass, based on coverage area of the previous pass. The display must
be logging coverage data to generate the next pass.
- Heading Change logs the next pass when the vehicle turns past the heading threshold.
• On-Screen Lightbar
The On-Screen Lightbar area of the Autopilot Guidance window contains settings that affect how you can
use the lightbar to keep your vehicle centered on the AB Line. These settings include Spacing and Mode.
• Spacing
Enter in an amount specifying the distance represented by each square of the on-screen lightbar. You can
enter in a number ranging between 6 and 72 inches.
• Mode
This determines which method to use the GPS information provided on the display's Run screen to center
the vehicle on the AB Line. Select either Chase or Pull
· If you select Chase, then in order to center the vehicle on the AB Line, you must follow the indicator lights on
the on-screen lightbar.
· If you select Pull, then in order to center the vehicle on the AB Line, you must turn the vehicle in the opposite
direction of the indicator lights on the on-screen lightbar.
Note: For more information on how the Chase and Pull modes work in the field, see
