107
P
LANTING
I
MPLEMENT
T
AB
- A
DVANCED
S
ETTINGS
S
WATH
S
ECTION
O
FFSETS

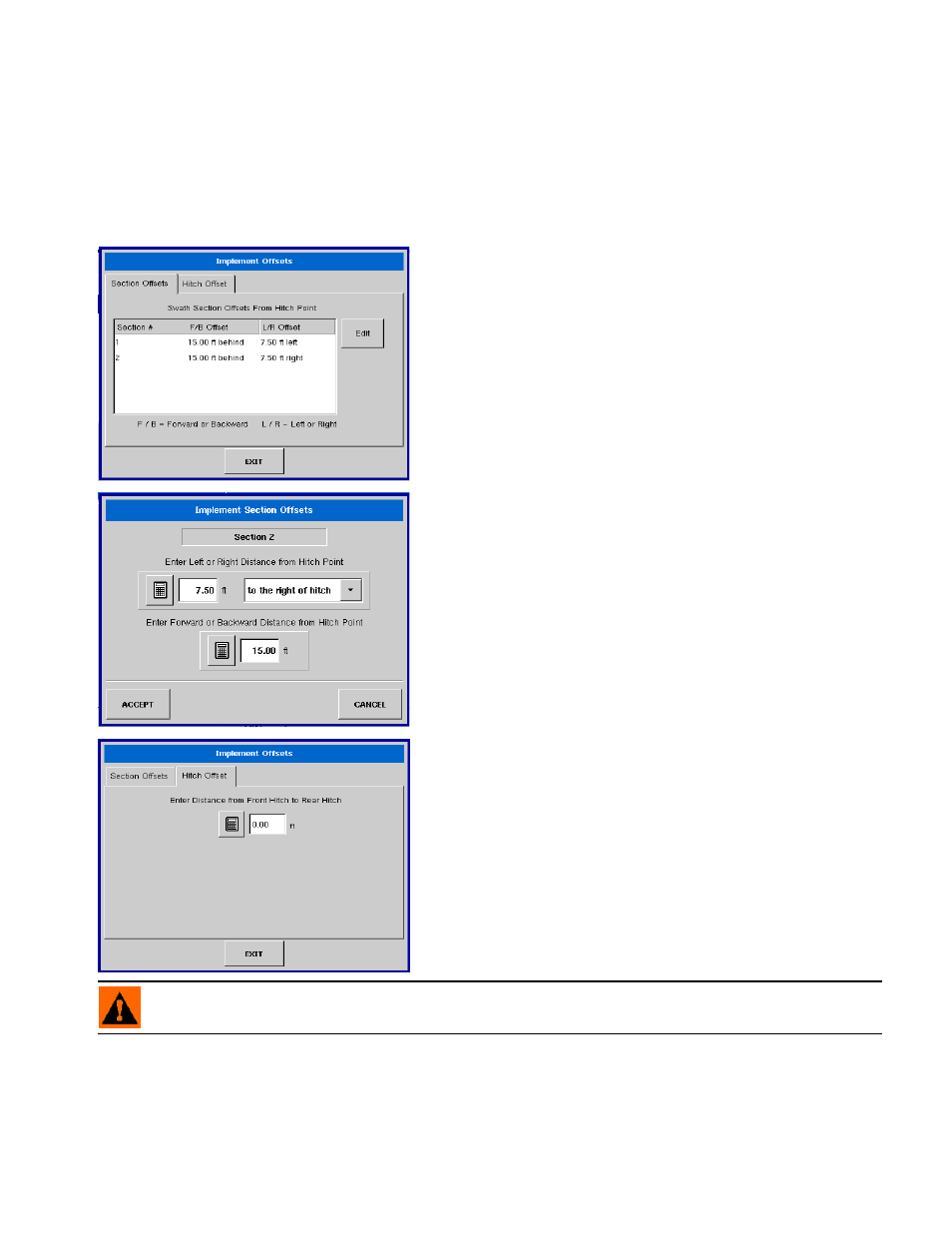

After completing the initial process of configuring an Implement, accurate values must be entered in the
Swath Section Offsets to ensure proper machine performance. Swath Section Offsets are configured
as outlined in the following steps.
1. Select Section
Select the desired section from the list and press Edit to modify
the offset values.
2. Enter left to right distance from hitch point
Use the keypad to enter the distance the mid-point of the swath
section is from the machine centerline. Select to the left/to the
right to indicate the direction the swath section is located from the
vehicle centerline.
Enter the distance that the swath section is located from the
hitch point.
Press Accept when done.
3. Enter distance from front hitch to rear hitch
Use the numeric keypad to enter the distance from front hitch, if
present, to rear hitch point. (This option will not be present on self-
propelled vehicles.) Press Exit when done.
WARNING: Accuracy when measuring and entering swath section GPS offsets is required to ensure proper
machine performance.
