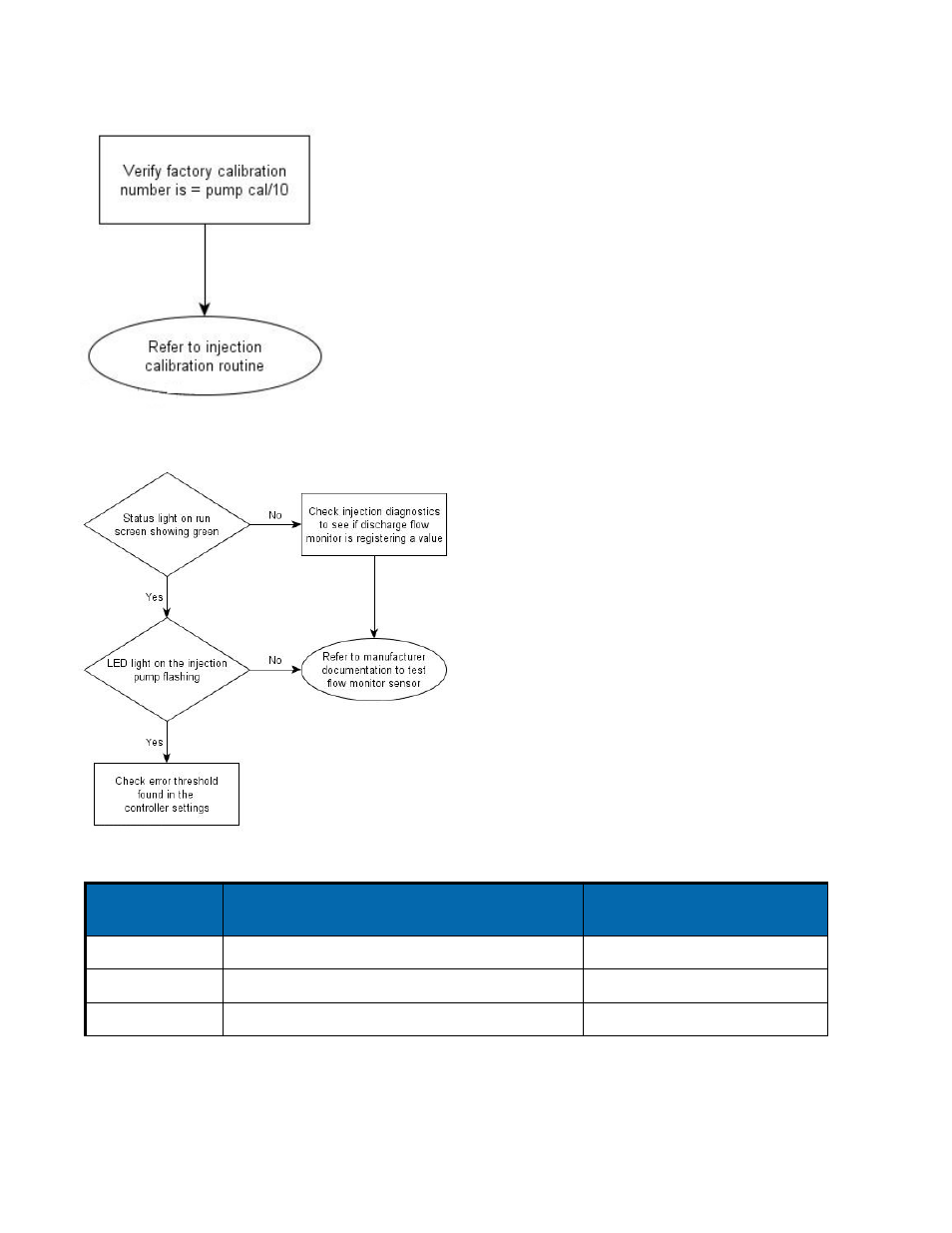

Direct Injection: Application Error

The injection module requires that a pump calibration be performed
before actual application can occur. The calibration number found
on the tag of the injection pump’s digital speed sensor needs to be
divided by a factor of 10 before entering it as the factory calibration
number. If the factory cal number is entered wrong, the pump
calibration routine will not finish due to a high application error.

• The pump calibration will fail if error is >10% from the factory calibration
number.

• If the calibration fails check pump and plumbing for physical damage or
excess wear.

Direct Injection: Discharge Flow Sensor Error

The discharge flow sensor is used as a system
check to see if product is actually exiting the output
of the pump. The sensor is a shuttle valve that
allows feedback for every stroke of the pump. If the
user has enabled the Flow Monitor Warning the
display will provide a message if the discharge flow
sensor falls out of its calibrated value. See table
below for pin locations.

D

ISCHARGE

F

LOW

S

ENSOR

P

IN

O

UTS

Module Auxiliary Connection

12-Pin Socket

3-Pin WP Shroud

Power (12V)

11

A

Signal

9

B

Ground 8

C
