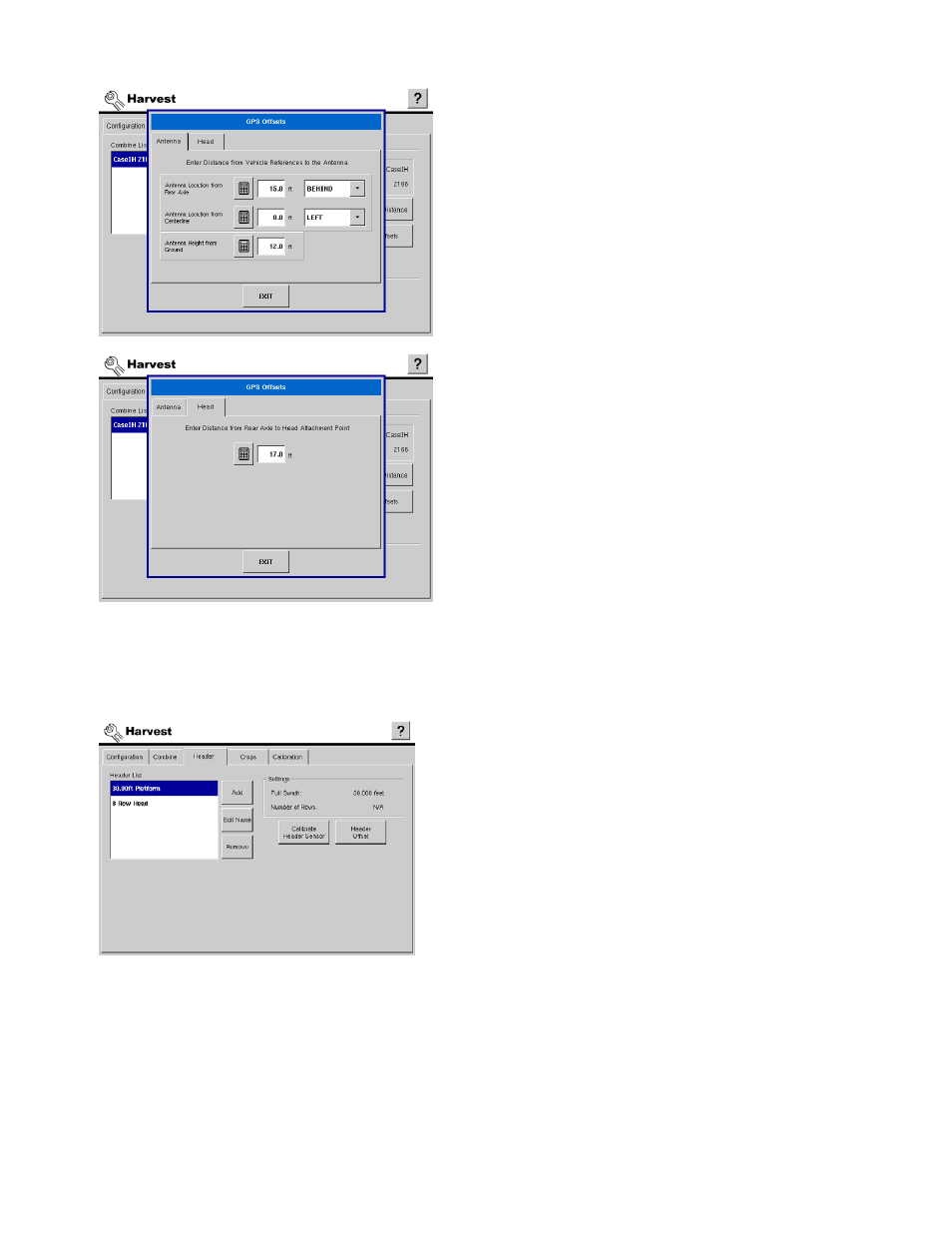

The Antenna Tab contains three different settings.
Accuracy when measuring for a specific setting is
essential to ensure proper machine performance.
• Measure and enter the horizontal distance from the rear axle
to the position of the GPS antenna. Select In Front or Behind
from the list box to indicate the position of the antenna in
relation to the rear axle.
• Measure and enter the horizontal distance from the centerline
of the vehicle to the position of the GPS antenna. Select Left or
Right to indicate the position from the vehicle centerline.
• Measure and enter the vertical height of the antenna above the
ground.
The Head Tab allows you to enter in the distance from the
head attachment point to the rear axle. Use the numeric
keypad to enter in the distance to the axle.
H
EADER
T
AB
H
EADER
T
AB
B
UTTONS
The header tab provides functionality for setting up and
configuring additional headers. The header list will show any
headers that have already been created.
To see a Harvest Configuration Menu that includes detailed
information on the Header Tab, see
“Grain Harvest Menu Tree”
on page 171 .
• Add button
Add a new header. A wizard will walk you through setting up the header. For detailed information see
“Adding a New Header” on page 288 .
• Edit Name button
Edit the name of a header in the list. To edit highlight the name of a header in the list, and then press this
button.
• Remove button
