The pointer changes to a hand icon.
2 If the action is not triggered automatically, click or double-click the monitor.
Triggering GPI Output Events
To trigger a GPI output event
1 In XEdit, configure the appropriate GPI line’s direction as an output (system calibration).
2 Create an action to toggle the GPI output on/off state, and assign it to a monitor.
3 Export the database to the multiviewer.
4 Trigger the action by clicking the monitor.
The GPI line’s state changes.
Acknowledging Alarms
Acknowledging Alarms on the Monitor Wall
To acknowledge an alarm, by using the Kaleido-RCP2
• Move the pointer over the monitor whose alarm state you wish to acknowledge, and
then press the UNLATCH STATUS button on the Kaleido-RCP2.
To acknowledge an alarm, by using the RCP-200
1 Touch the WALL MOUSE category if it is not already selected, and then move the
pointer over the monitor whose alarm state you wish to acknowledge on the monitor
wall.
2 If you have yet to assign the UNLATCH STAT wall function to one of the programmable
knobs, rotate the knob you wish to program until UNLATCH STAT is selected, and then
press the knob.
UNLATCH STAT appears above the programmed knob.
3 Press the UNLATCH STAT knob.
To acknowledge an alarm, by using the mouse
• Right-click the monitor whose alarm state you wish to acknowledge, and then click
Unlatch/Acknowledge on the menu.
Note: This topic does not apply to the Kaleido-IP.

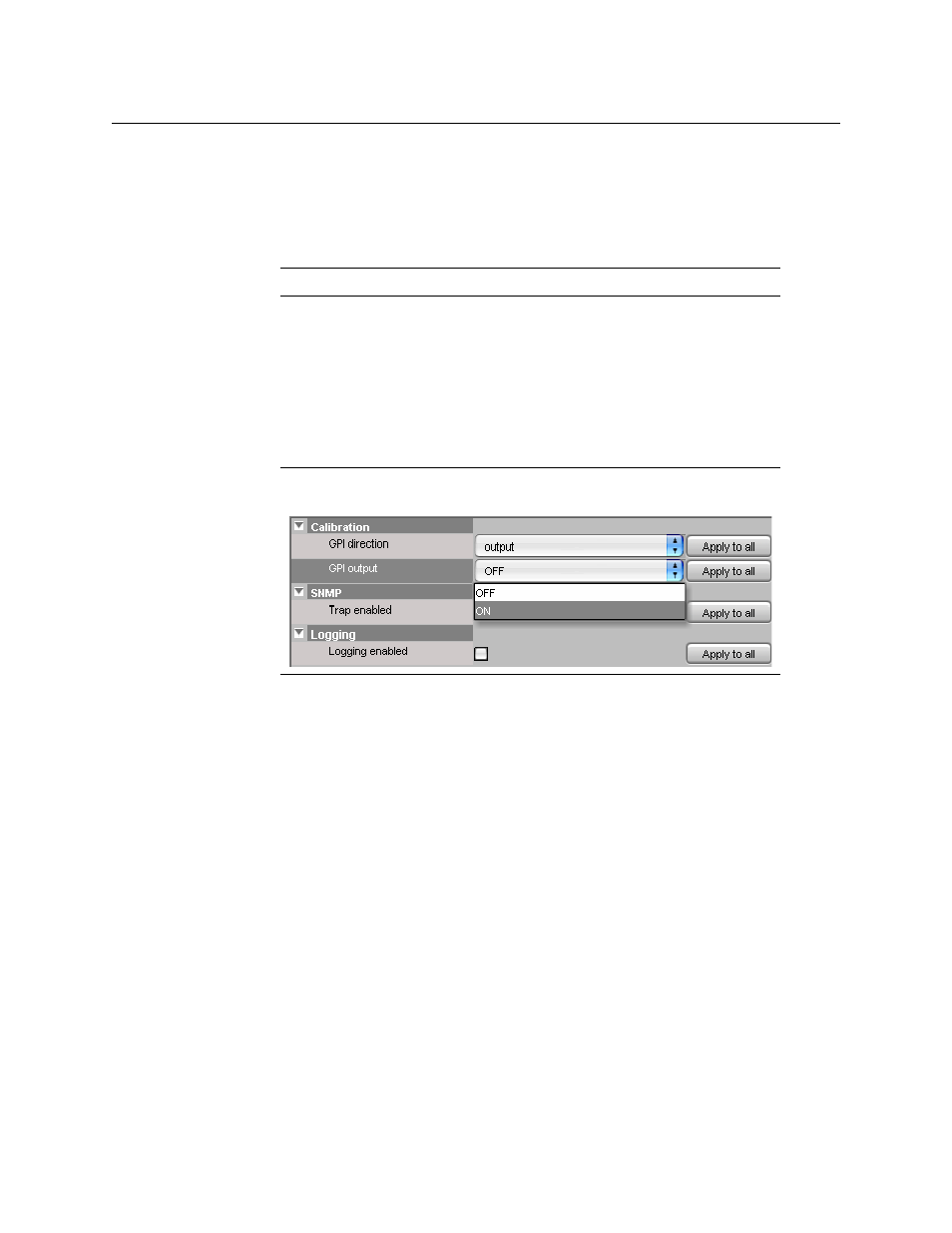

Note: GPI lines configured as outputs can have their state set manually for
test purposes in XEdit’s System tab:
