Routers & Kaleido-X

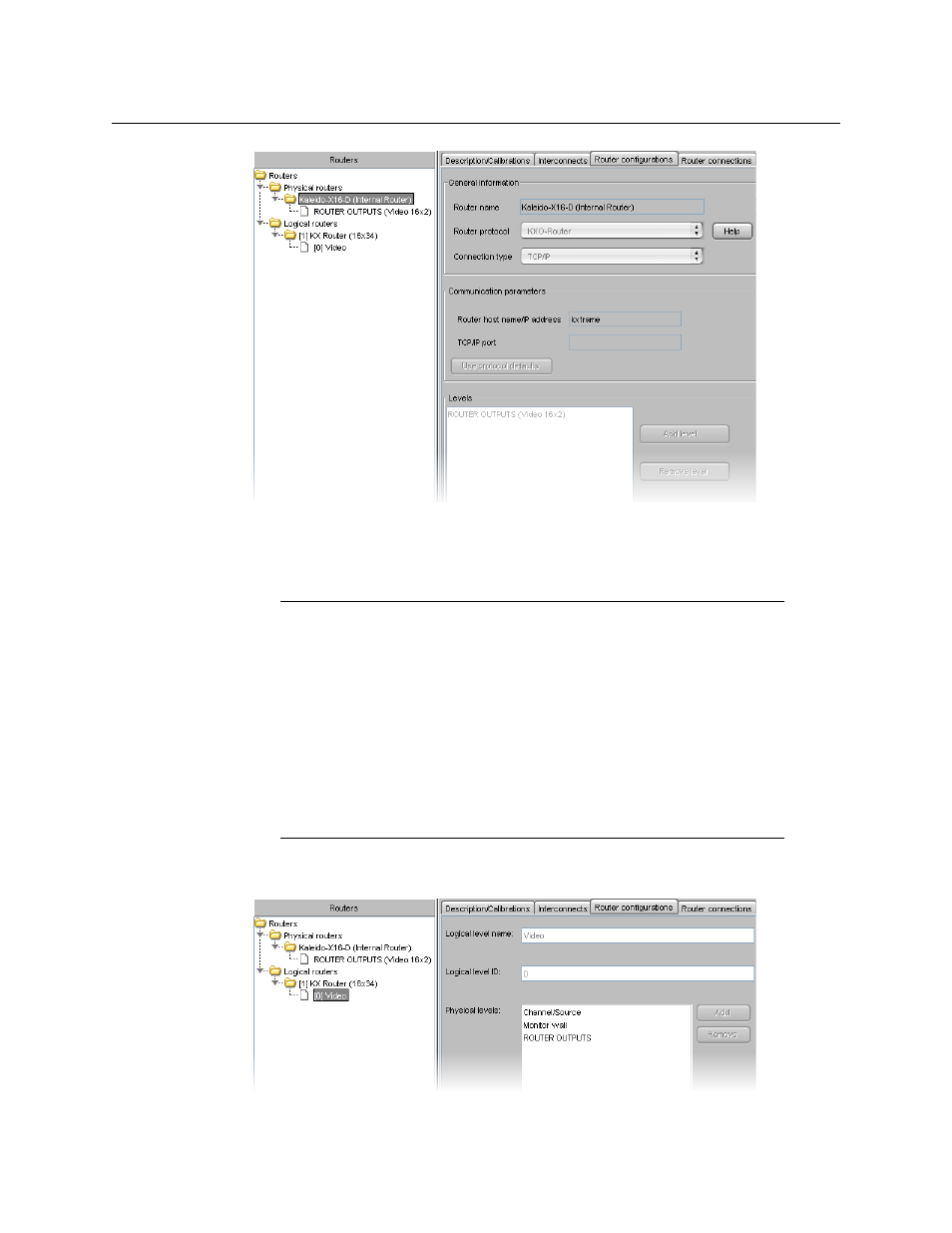

Configuring a Multiviewer’s Internal Router
The router protocol, connection type, host name and levels are predefined (and cannot
be modified). Under Kaleido-X16-D (or S) (Internal Router), the physical level ROUTER
OUTPUTS (Video 16 × 2) or ROUTER OUTPUTS (Video 16 × 1) was automatically
created and configured to the right size.
2 Navigate to the KX Router folder, under Logical routers, and then click the [0] Video
level.
Notes
• The following ports are always active and can be used for controlling a
Kaleido-X over TCP/IP, via the associated protocols:
• port 14000 (SW-P-08)
• port 2000 (SW-P-02)
• port 4381 (VikinX Modular)
• port 5194 (NVISION Ethernet protocol - Compact router)
• When controlling a multiviewer, by using one of the TCP/IP router
protocols, the router level to be controlled must be configured in XEdit
(see
step 6 under Creating a Single Multiviewer System , on page 85). No
other communication configuration is required in XEdit.
