Grass Valley Kaleido-X v.7.80 User Manual
Page 280
272
Creating Layouts
Configuring Audio Monitors

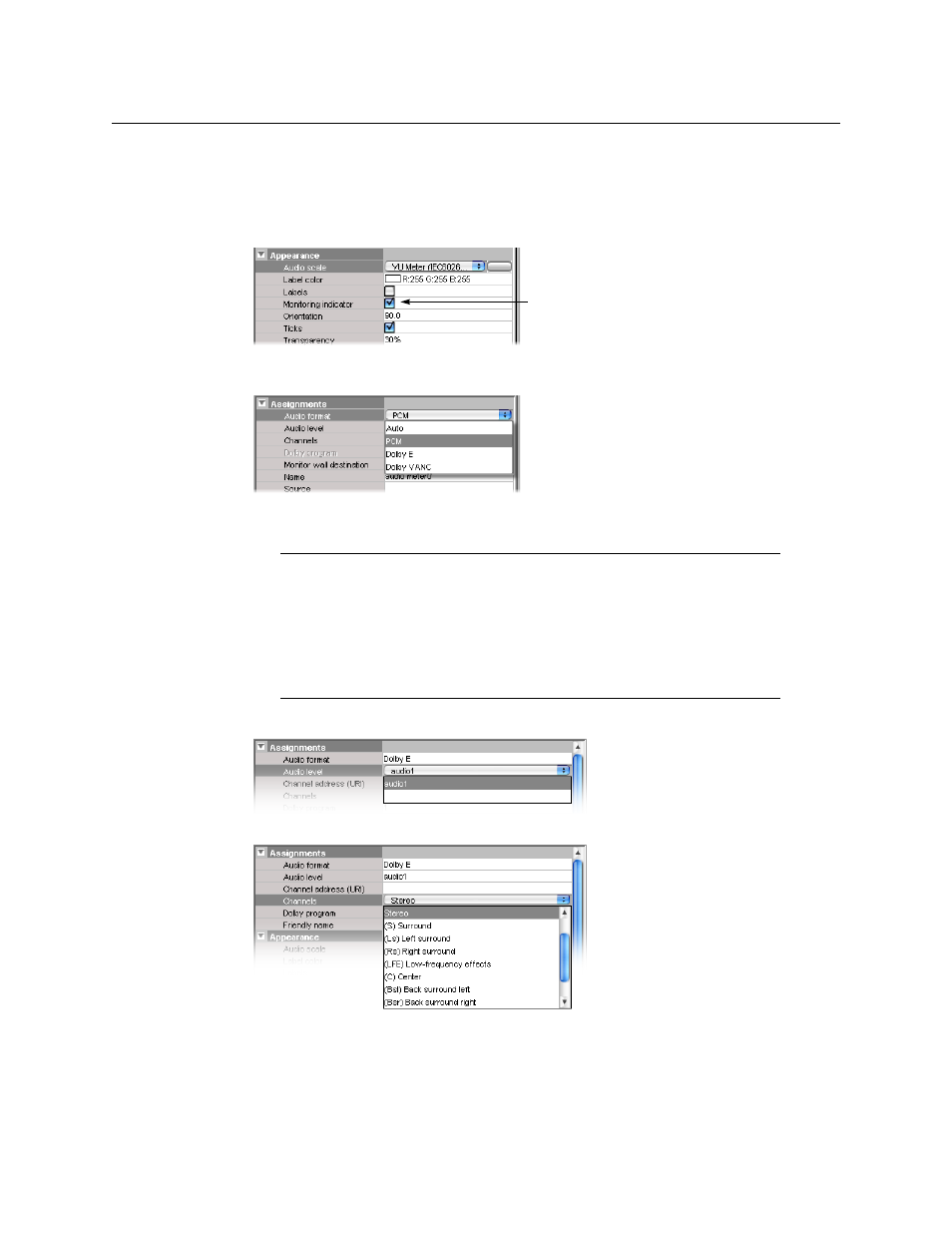

3 The Monitoring indicator check box is selected by default. Audio monitors with a
monitoring indicator show by their color that someone is listening to the same audio
level. There could be a distinctive color for each of the displays at the site, or one for
each room, etc., telling you in more or less details, where the audio is currently being
monitored. Clear the check box if you do not need this.
4 Under Assignments, click the Audio format box, and then select the appropriate
format from the list: Auto, PCM, Dolby E or Dolby VANC.
By default, audio monitors added to a layout by using the toolbar button have this
attribute set to Auto.
5 Choose an Audio level.
6 Choose a value from the Channels list to indicate which channel to display.
• If the Audio format is set to PCM, then the available choices are (L) Left, (R) Right,
and Stereo.
• If the Audio format is set to Auto, Dolby E or Dolby VANC, then the available
choices are (L) Left, (R) Right, Stereo, (S) Surround, (Ls) Left surround, (Rs) Right
Notes
• If the actual audio source assigned to this audio monitor is not of the same
format configured here, then the audio data will not be shown.
• In the case of a Kaleido-IP, the current version of the Kaleido-X software
does not support audio monitors configured to monitor PCM audio
signals. For every audio monitor in your layout, the Audio format property
should be set to Auto.
Monitoring indicator check box
