220
Setting Up Rooms
Configuring Displays
3 Under either the Porch or the Modeline section—depending on whether you prefer to
specify front porch, back porch, sync, and active values; or blank start, sync start, sync
end and blank end—, set the refresh rate and other timing parameters so that they
match those of the physical display you need to configure.

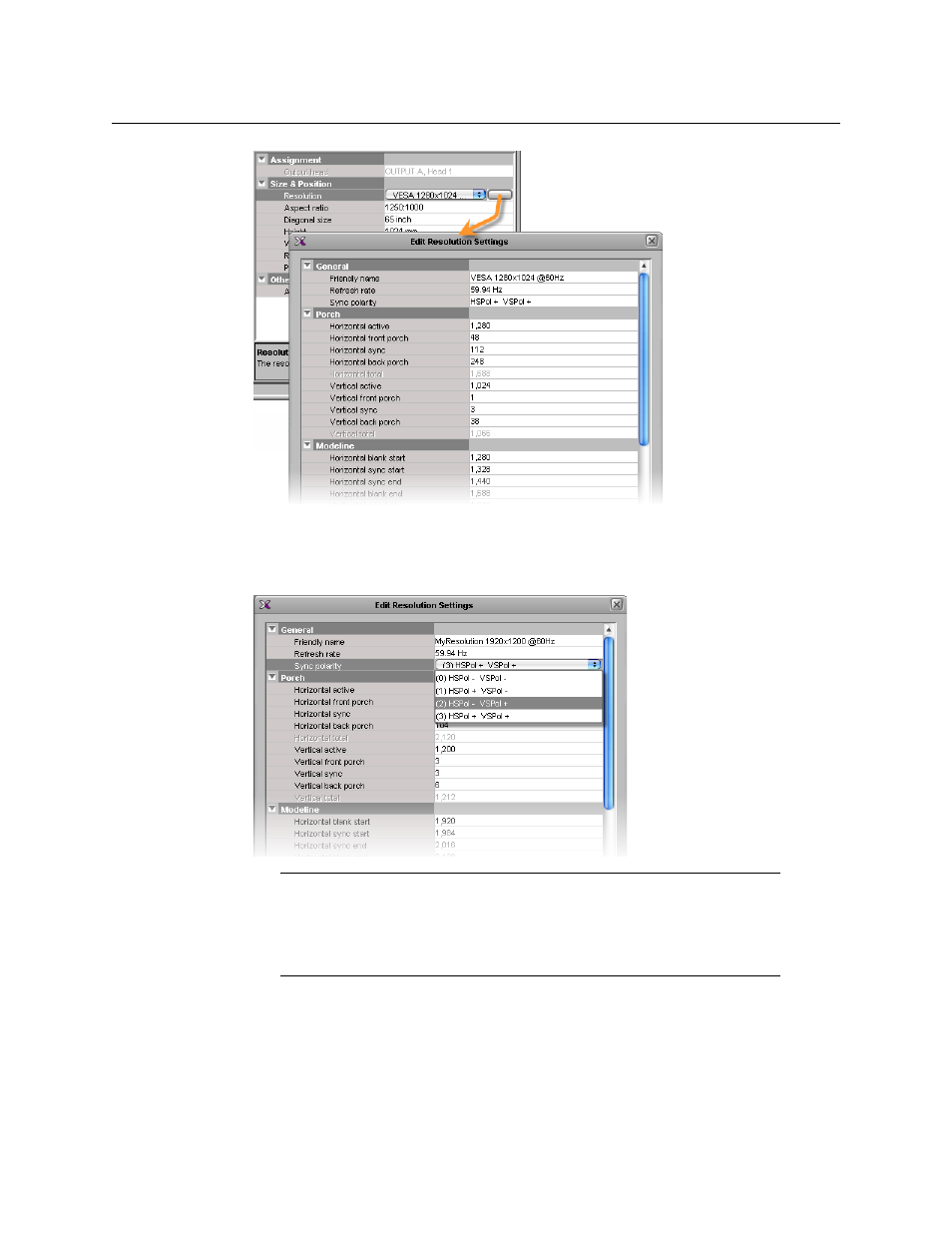

Example: Suppose you want to configure the display that is connected to the OUTPUT
C (master) KXO-DUAL card’s head 1. The image below shows the relevant data you need
to copy to the Edit Resolution Settings window.
Note: In XAdmin’s Status and Options page, these parameters are listed
under the corresponding output card information, according to the
blank/sync start/end modeline system, and with the sync polarity expressed
as a number between 0 and 3. Refer to
Viewing a Multiviewer’s Status
Information , on page 534 for details.
