412
Tally Interface Devices &Timer Systems
Ross Video Production Switcher

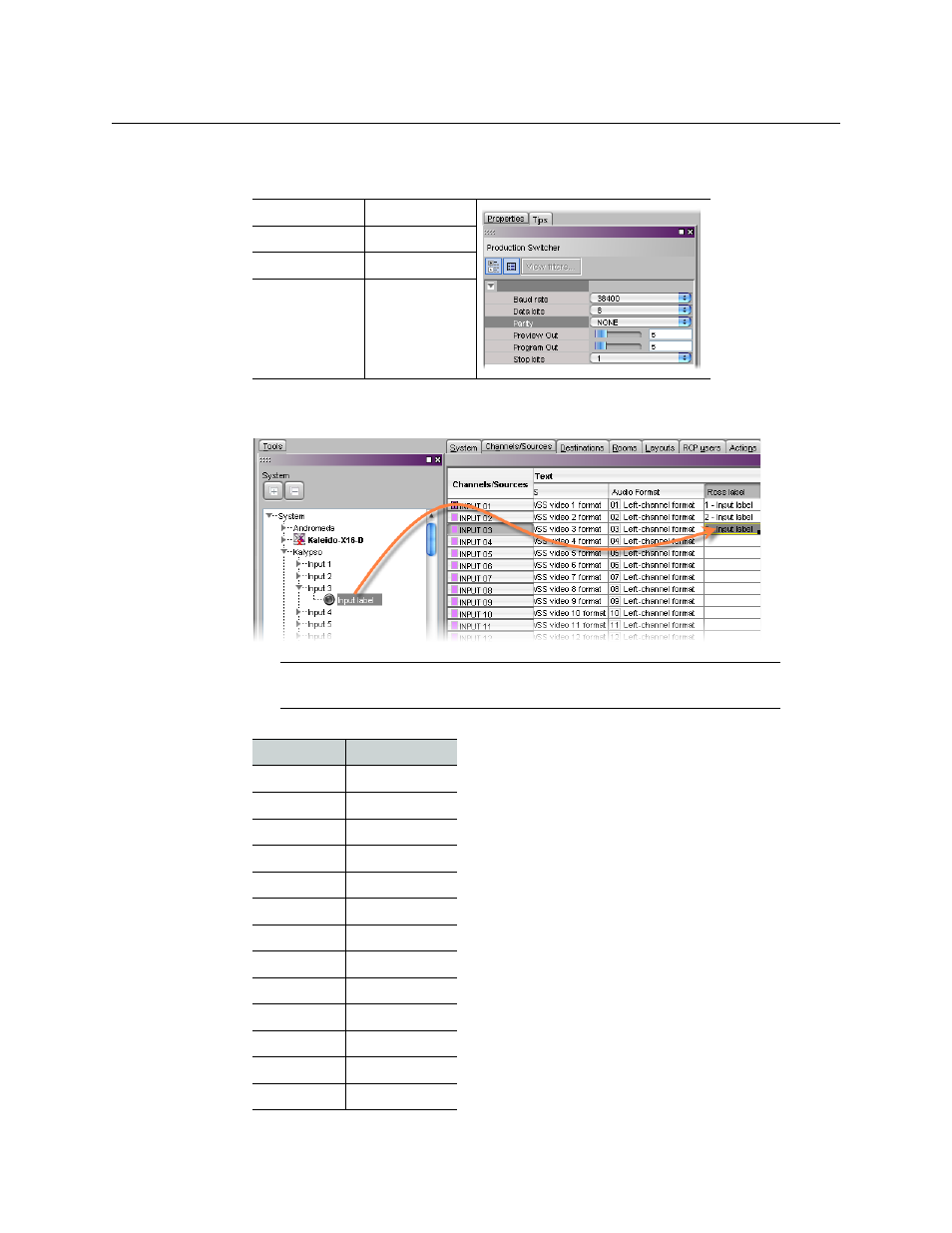

10 In the Properties pane, set the serial communications properties for the remote port
on the Ross Video switcher as follows:
11 In the Channels/Sources tab, configure logical sources using text sources and system
tallies from the Kalypso serial tally device.
Baud rate 38 400-115 200
Data bits 8
Parity NONE
Stop bits 1
Note: Refer to the table below for a list of valid source IDs and their
meaning in the context of the Kalypso serial tally protocol.
Source IDs Kalypso
1 - 92 Inputs 1 - 92
93 M/E 1 PGM A
94 M/E 1 PGM B
95 M/E 1 PGM C
96 M/E 1 PGM D
97 M/E 1 PVW A
98 M/E 1 PVW 2
99* M/E 2 PGM A
100* M/E 2 PGM B
101* M/E 2 PGM C
102* M/E 2 PGM D
103* M/E 2 PVW A
104* M/E 2 PVW 2
