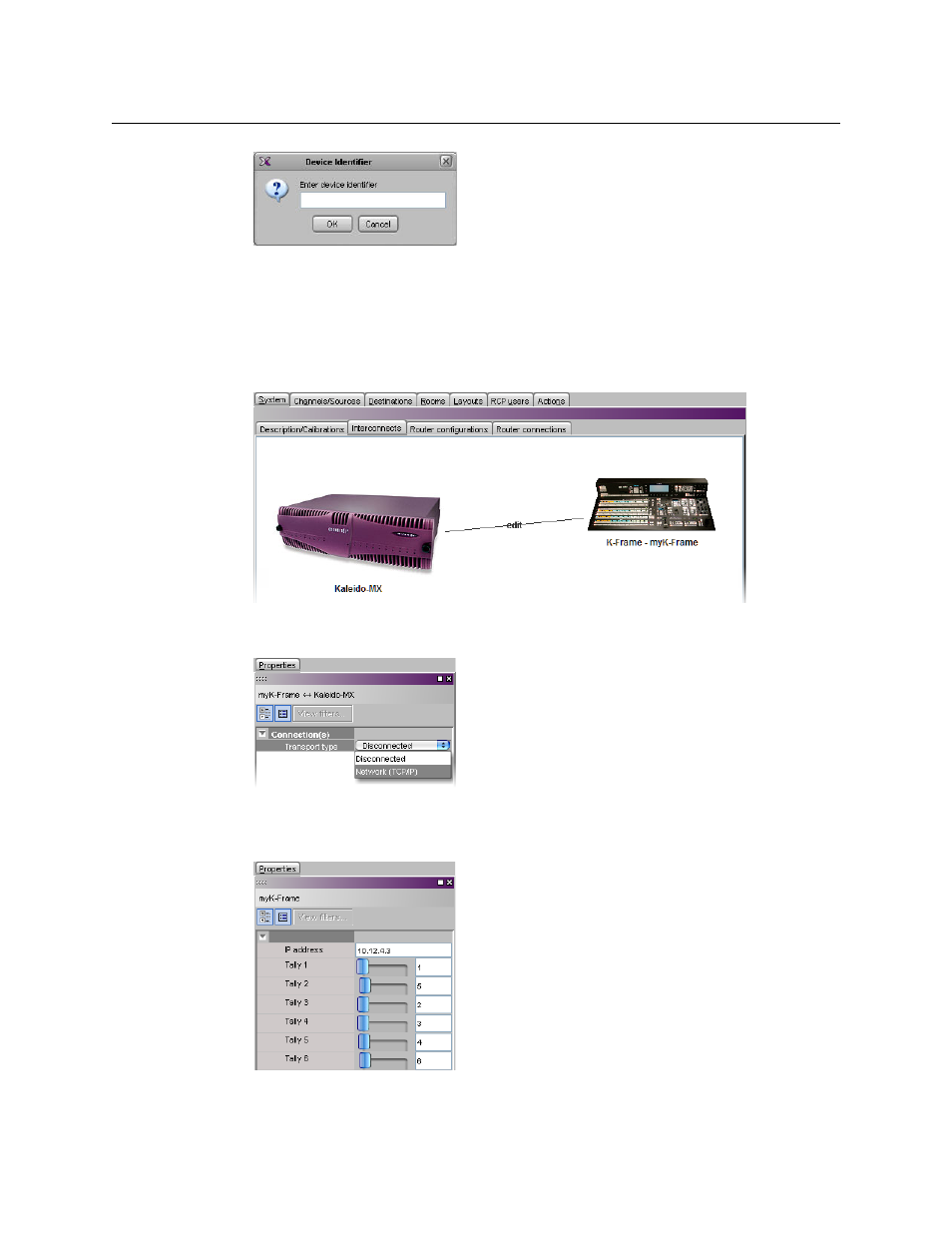

4 Type a name for the K-Frame production switcher, and then click OK.
The device is added to your system configuration.
5 Click the Interconnects tab.
6 Position the pointer over the multiviewer icon, then click and drag towards the K-Frame
production switcher icon.
A line representing the connection between the multiviewer and the device appears.
7 Click the connection line between multiviewer and device.
8 In the Properties pane, select Network (TCP/IP) from the Transport type list.
9 In the Interconnects tab, click the K-Frame production switcher icon.
10 In the Properties pane, enter the K-Frame switcher’s IP address, and set the appropriate
output numbers to use for tally calculation, based on your switcher’s configuration.
