114
Managing Kaleido-X Systems
Configuring the System Representation
Populating card slots

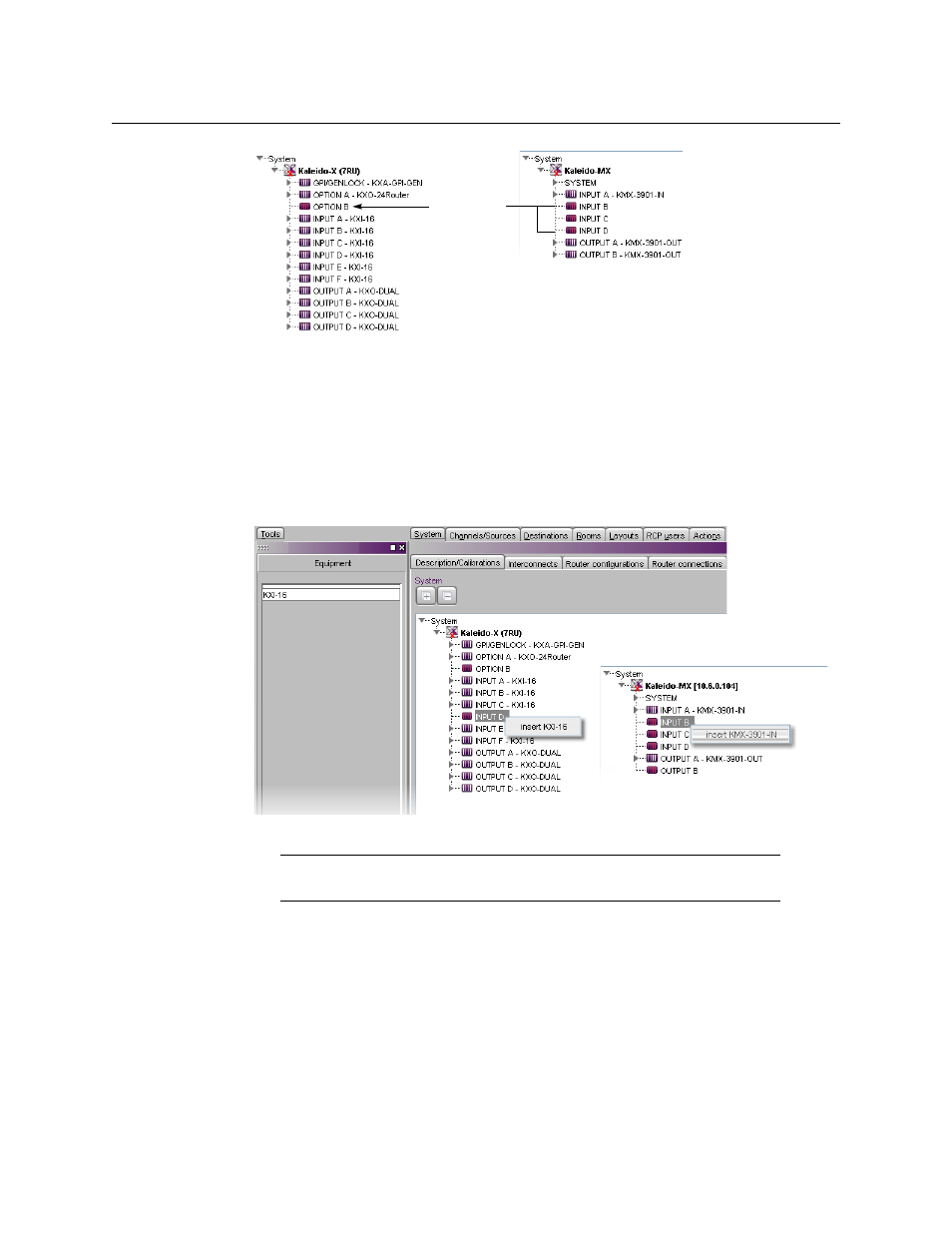

To populate slots with cards in a Kaleido-X or Kaleido-MX system representation
1 In the System list, right-click the slot you wish to populate.
2 If you wish to populate multiple slots in a single operation, extend your selection to
other slots of the same type by using the standard Shift+click or Ctrl+click keyboard
shortcuts. In this case, XEdit will prompt you to confirm your intention.
3 Right-click your selection and then click Insert [card type] on the menu.
Alternatively drag the card from the equipment library onto the empty card slot.
The slot name is now appended with the card type. For example: INPUT D - KXI-16, or
INPUT B - KMX-3901-IN.
Note:
Dragging a card from the equipment library is only supported in the
case of a single-card selection.
Empty slots
