Configuring a Router Controller
Adding a VikinX Compact router controller
To add a VikinX Compact (or equivalent) router controller

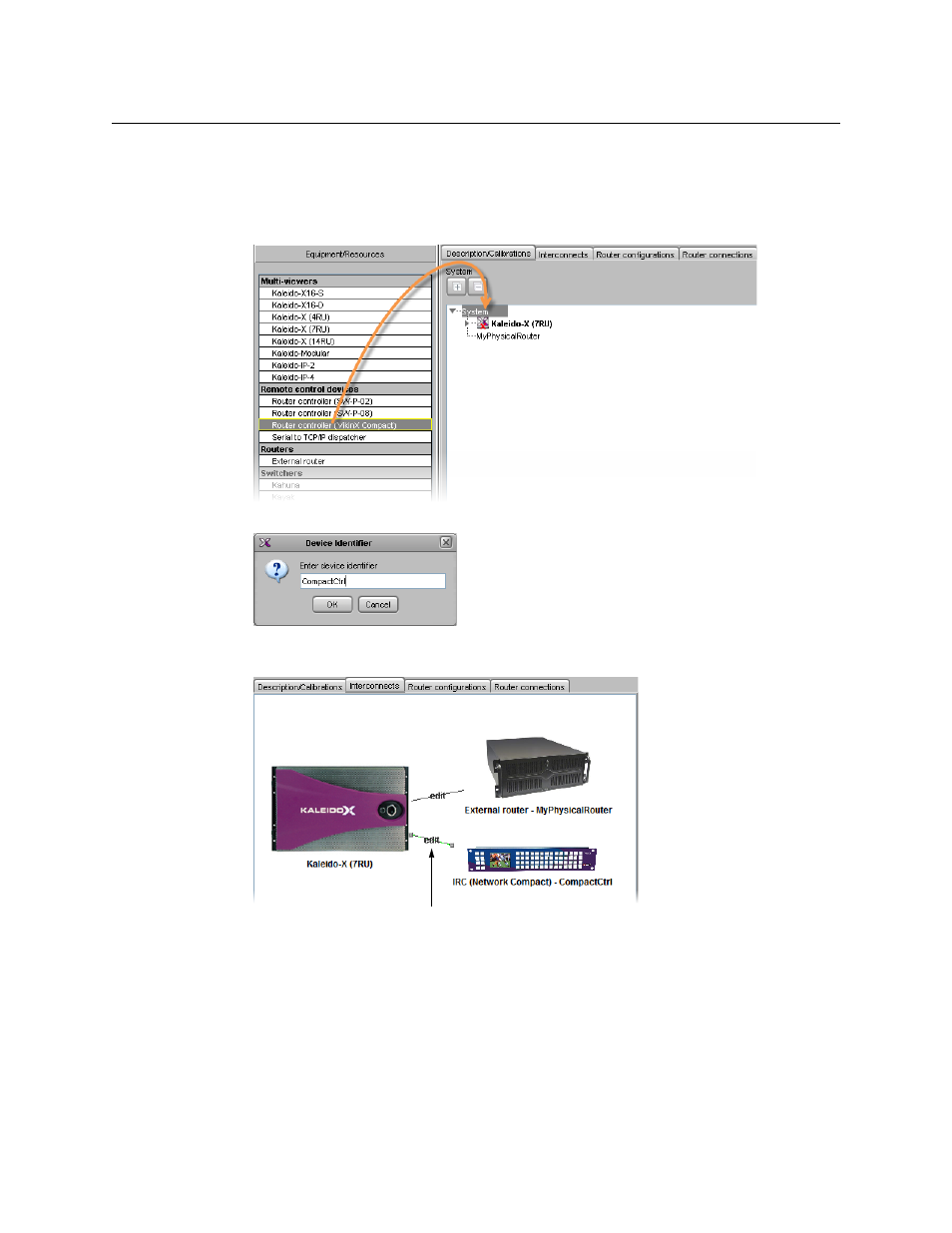

1 Click and drag Router controller (VikinX Compact) from the Equipment library to the
System hierarchical list.
2 When prompted, type a name, and then click OK.
3 Click the Interconnects tab, draw a line between the multiviewer and the new router
controller, and then click the line.
4 In the Properties pane, select the appropriate element from the RS-422
communication port list.
Click the line to configure
the connection properties
