Page 152
144
Calibrating the Kaleido-X
Multiviewer Input Calibrations

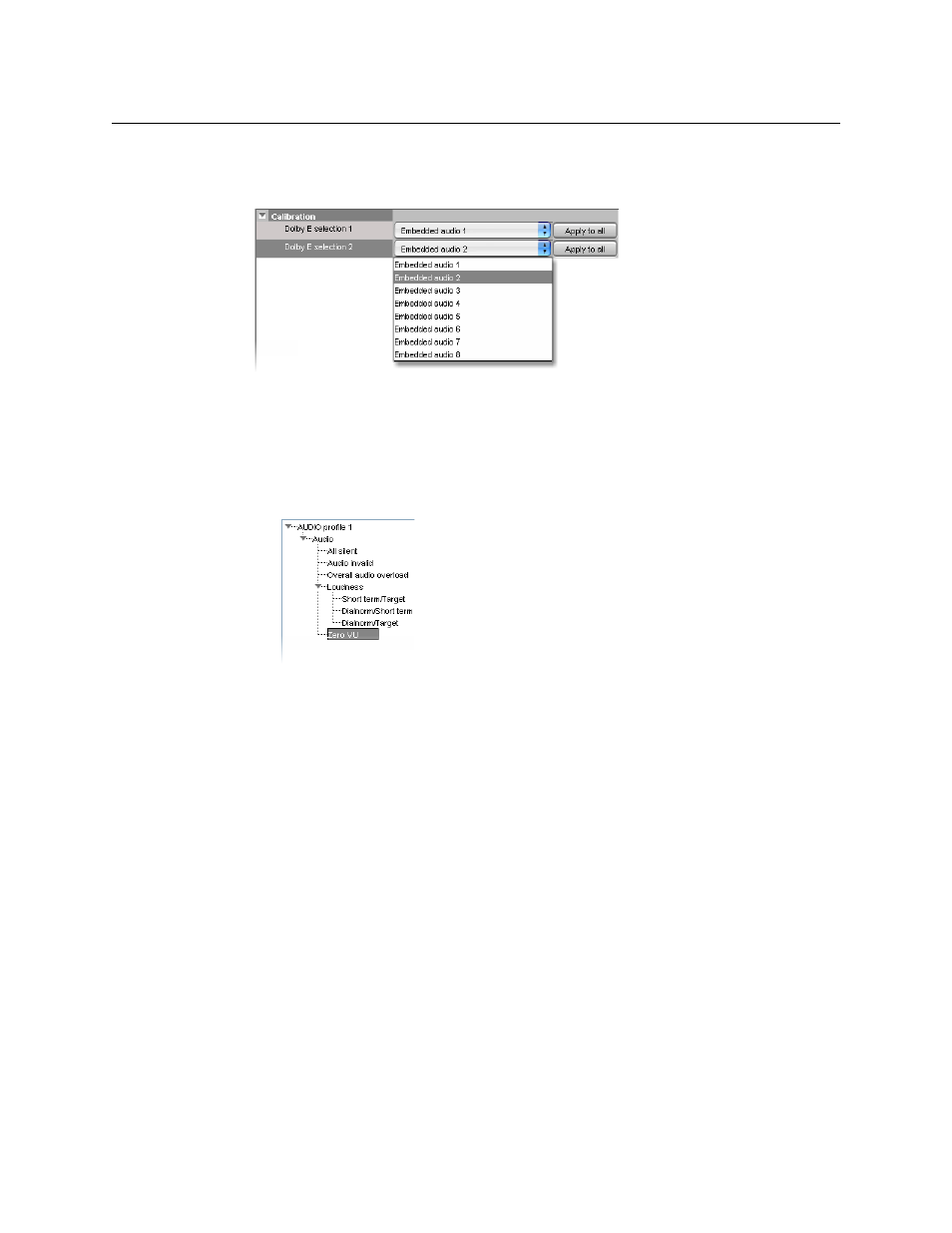

4 In the Properties pane, select the AES pairs (among Embedded audio 1 to Embedded
audio 8) associated with the two Dolby E programs to be decoded, from the two lists:
Dolby E selection 1 and Dolby E selection 2.
Calibrating Zero VU Reference Levels for Embedded Audio Sources
To calibrate a Zero VU reference level
1 In the main window, click the System tab, and then:
• In the case of a Kaleido-IP, click the Calibrations (Kaleido-IP) tab, select the audio
profile you wish to configure, and then click Zero VU.
• For all other multiviewer models, click Description/Calibrations on the second-
level tab bar, expand the appropriate input, then one of its embedded audio
elements, and select Zero VU.
