418
Tally Interface Devices &Timer Systems
Kahuna Production Switcher
13 On the File menu, click Save.
14 On the Configure menu, point to Database, and then click Export to export the
database to your multiviewer.

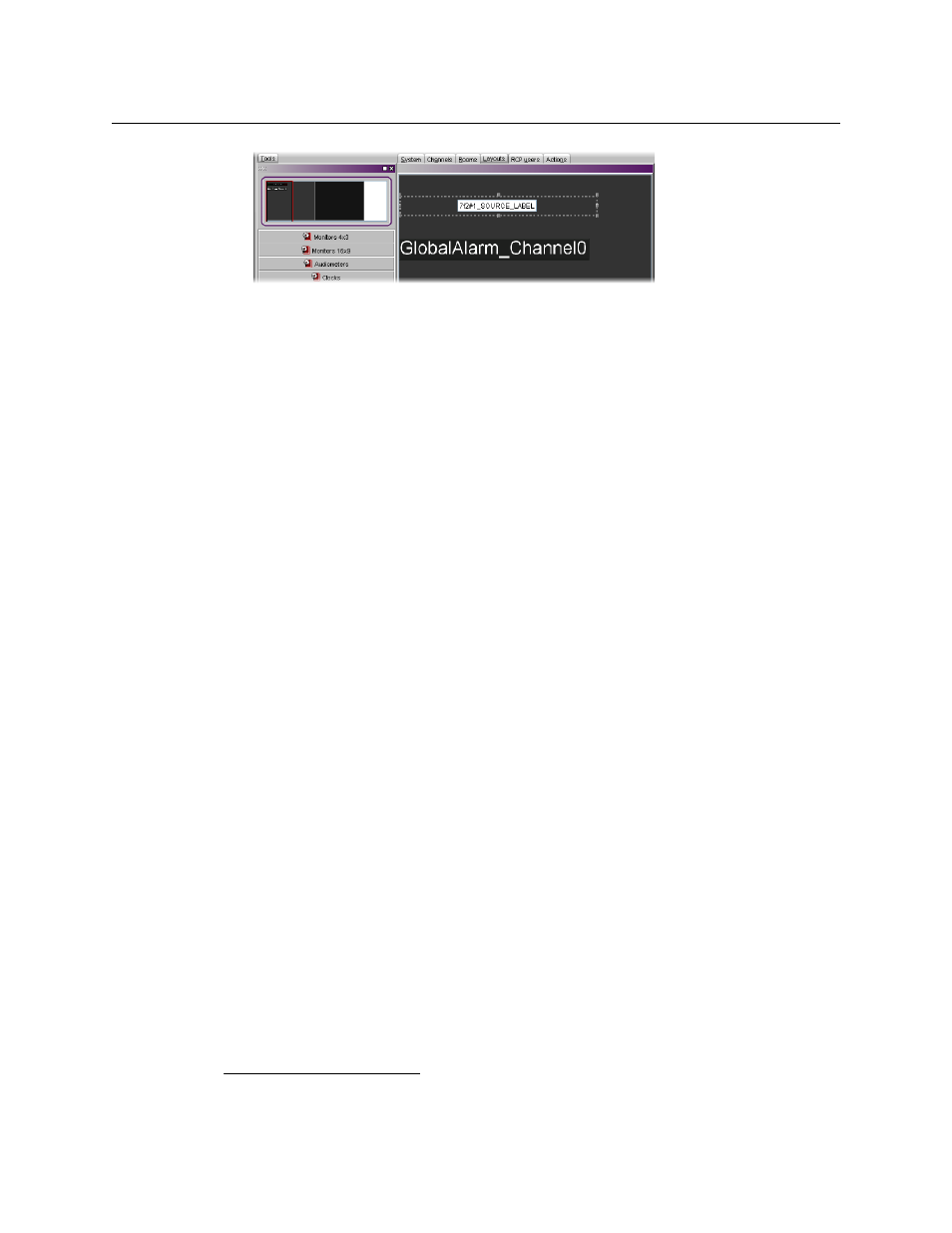

15 On the multiviewer, load the layout containing the monitors assigned to dynamic text
and tallies coming from the Sony switcher.
You should see source names and tallies from the Sony switcher on the monitor wall.
Kahuna Production Switcher
A multiviewer can receive dynamic source names and tally information from a Kahuna
production switcher. The procedures below describe how to set up a multiviewer to
interface with a Kahuna switcher.
To set up the Kahuna switcher
1 Physically connect one end of an RJ-45 straight cable to the multiviewer’s RS-422 port.
2 Using a DE-9S-to-RJ-45 crossover adapter (Grass Valley part no. 1792-3700-100),
connect the other end of the cable to the appropriate RS-422 control port on the
Kahuna switcher. See
RS-422 Connection Diagram on page 26 for pinouts on the
multiviewer. The illustration below shows the location of the RS-422 ports on an 11RU
Kahuna switcher. The RS-422 ports (highlighted) are numbered 1 – 8, from right to left.
Refer to the Kahuna Install Manual for more details on the RS-422 control ports.
4
4.The Kahuna Install Manual is available here:
https://kahuna.snellgroup.com/kahunaclub/kahunacare/documents.php
