5 Click Take.
The selected logical source is now assigned to the monitor.
6 Click the × button to close the Assign Source window.
Assigning a Logical Source to a Monitor by Using the Mouse
To assign a logical source to a monitor, by using the mouse
1 Right-click the monitor that is to be assigned a logical source.
2 On the menu, point to Assign source to [component] (where [component] will be
monitor, video, UMD, tally, audio meter, status alarm, time code, metadata display,
subtitling, or clock, depending on the monitor you clicked).

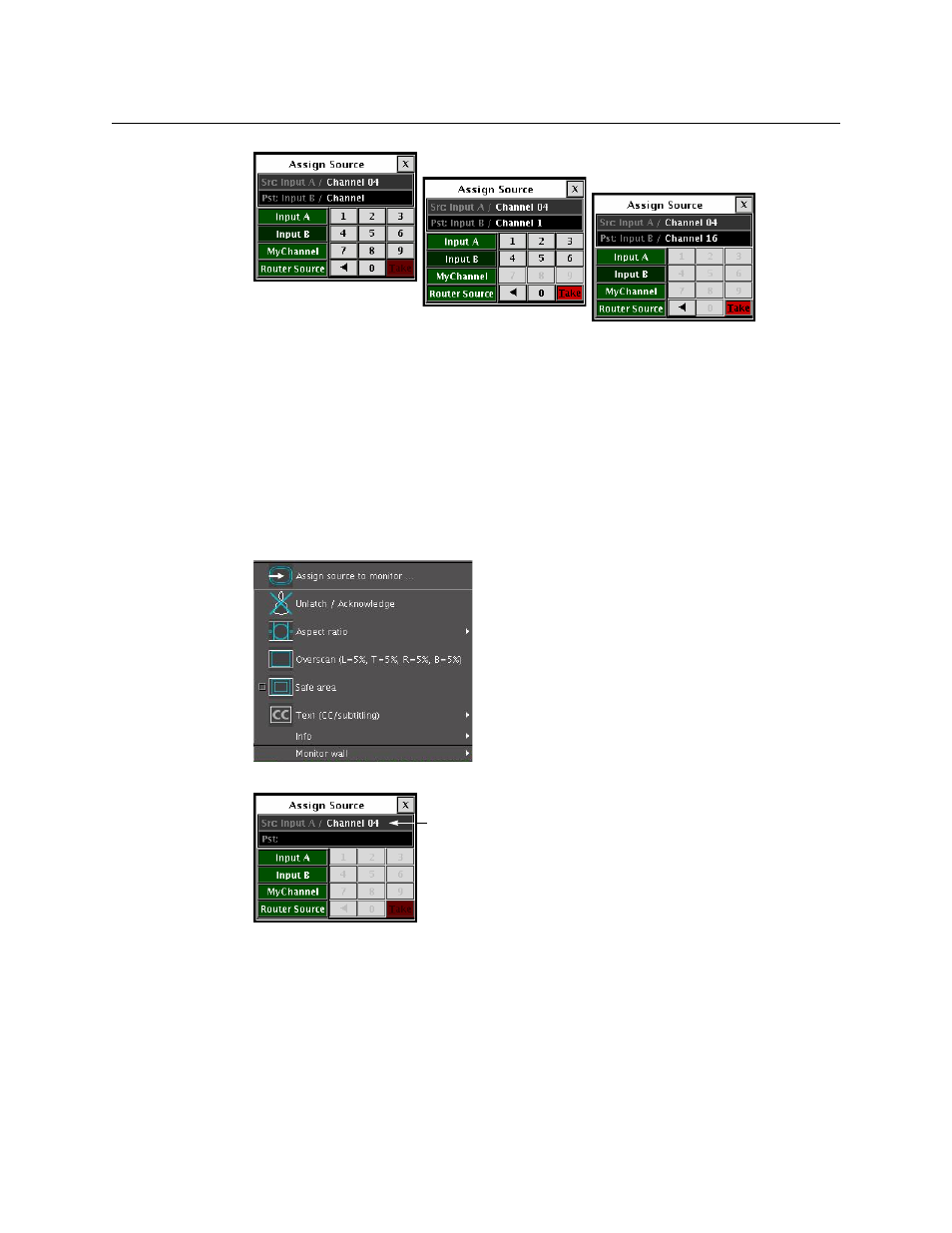

The Assign Source window appears.
The label of each category/index button in Assign Source is based on recurring strings
found in the logical source names available for your system. The Src box shows the
current assignment.
3 Click through the categories until the Pst box shows the logical source you wish to
assign to the selected monitor. For example, if you wish to assign the logical source
named “/Input B/Channel 16” to the monitor, click Input B, 1, and then 6.
Current assignment
