Creating Layouts
Configuring Audio Scales
3 Click one of the Top, Middle or Bottom Color buttons to set the top, middle and
bottom color.

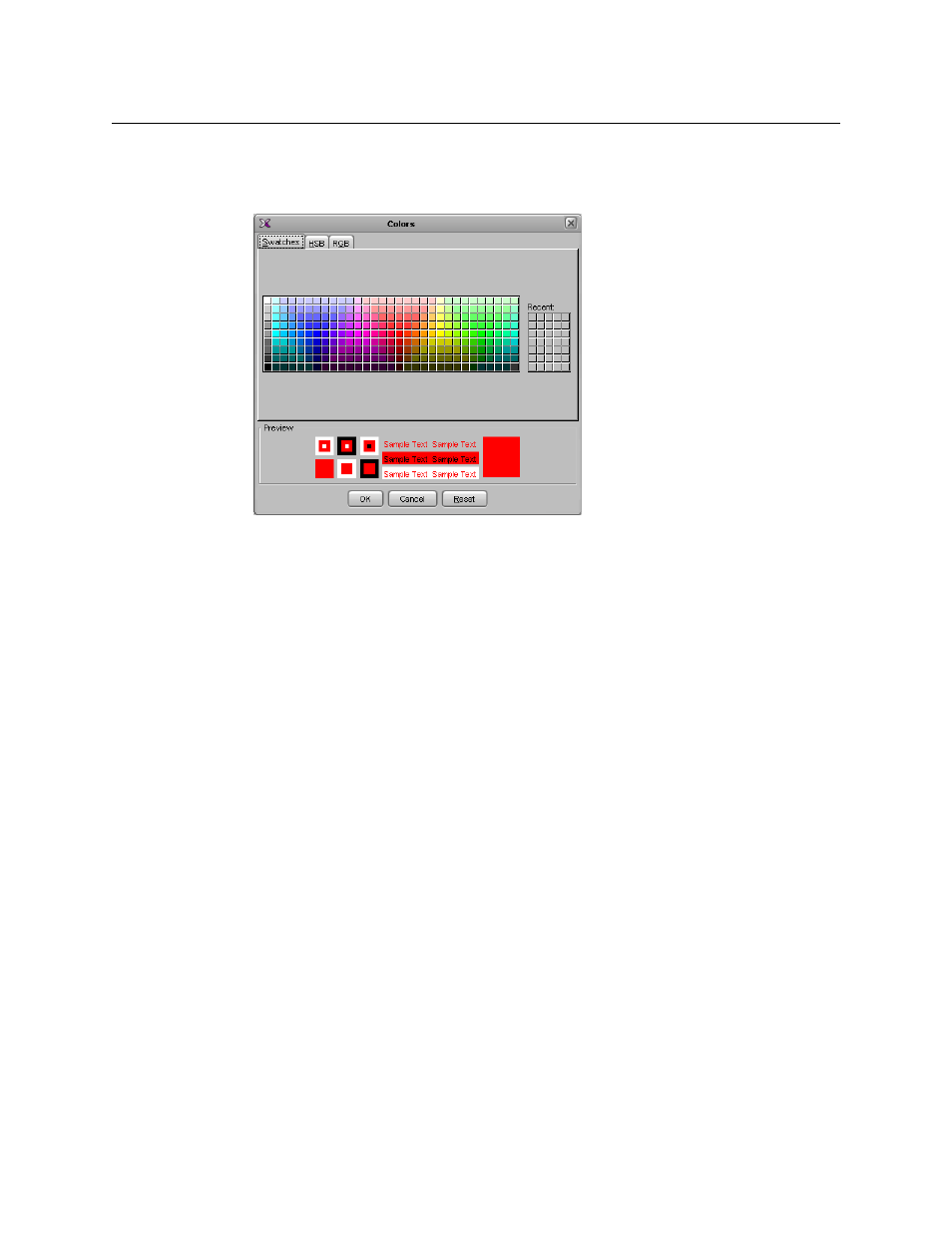

The color picker window appears.
4 In Colors, click the tab that corresponds to the color space you wish to use, and then
choose the desired color.
Swatches in the selected color appear under Preview.
5 Click OK to close the color picker window.
In Edit Audio Scale, the corresponding button and the corresponding part of the audio
monitor preview show the selected color.
6 Repeat the procedure until all three colors are set as desired.
7 Enter the audio thresholds in Upper limit and Lower limit.
8 Type a name for the new audio scale in the box at the bottom, and then click the Save
as button. Alternatively, if you are modifying an existing custom audio scale, you can
click the Save button.
Configuring an Audio Scale from a Specific Audio Monitor
To configure an audio scale from a specific audio monitor
1 In the Layouts tab, click the audio monitor you wish to configure.
2 In the Properties pane, click the Audio scale box, under Appearance, and then click
the button that appeared at the end of the box.
The Edit Audio Scale window appears.
