• Within the operator suites, 6 tally statuses are available for every video processing
engine (VPE) output. The tally status indicates whether the VPE output contributes to
the switcher output associated with the tally.
To configure your logical sources
1 In the Channels/Sources tab, add the required number of text and alarm levels for your
purposes (see Creating and Configuring Logical Sources on page 190).
You may, for example, add two text levels to monitor source labels from the K-Frame
switcher, and two alarm levels to monitor Program and Preview tallies.

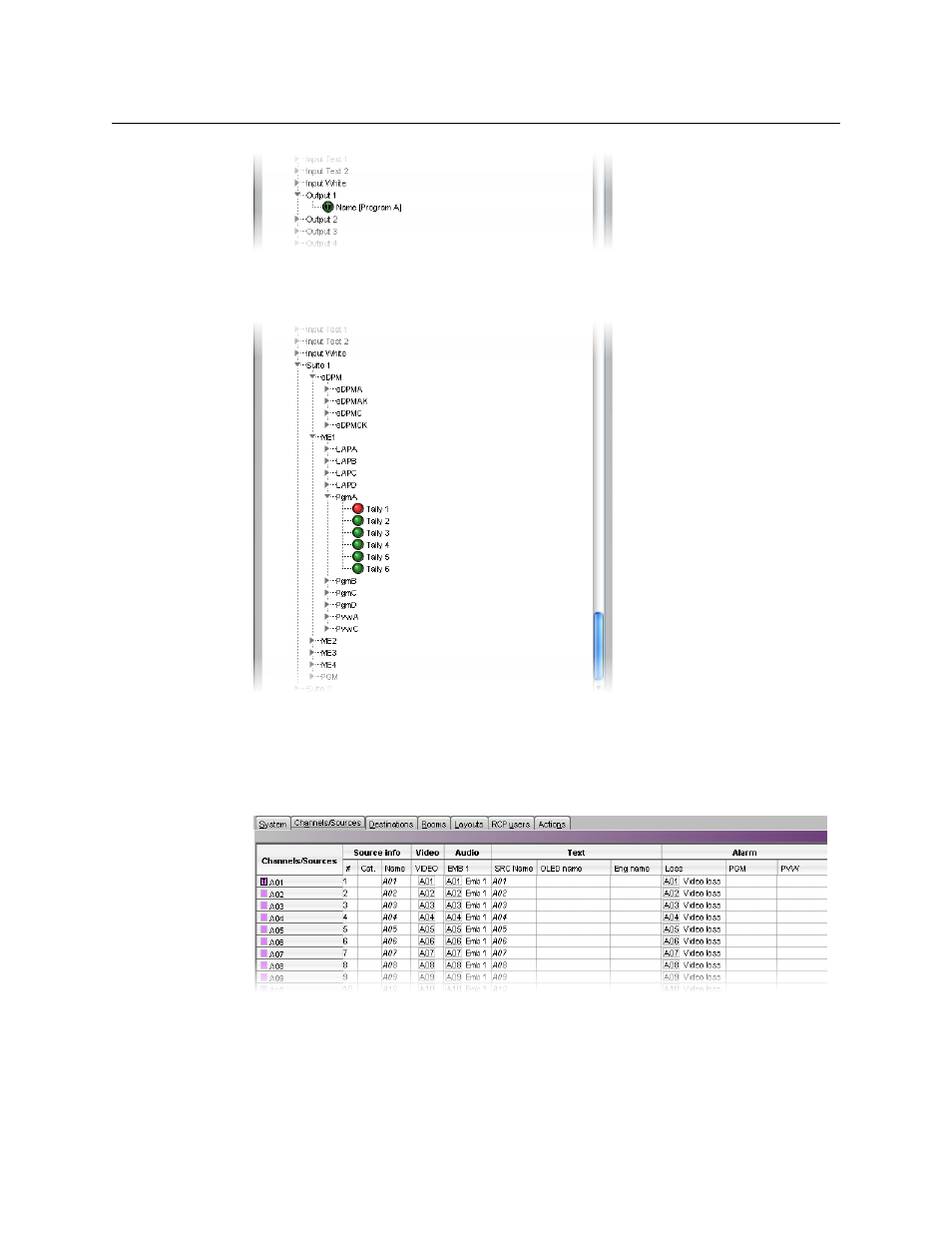

2 Click a cell that corresponds to the appropriate text level of a logical source.
3 In the filtered System list, navigate to the text element you wish to monitor, and drag it
onto the selected cell.
