In a factory-default configuration, the physical level ROUTER OUTPUTS is automatically
included in the KX Router logical level [0] Video.
3 If the physical level is not included—for example, someone may have removed it from
your configuration—, then you must add it to this logical level. In the Router
configurations tab, click Add.

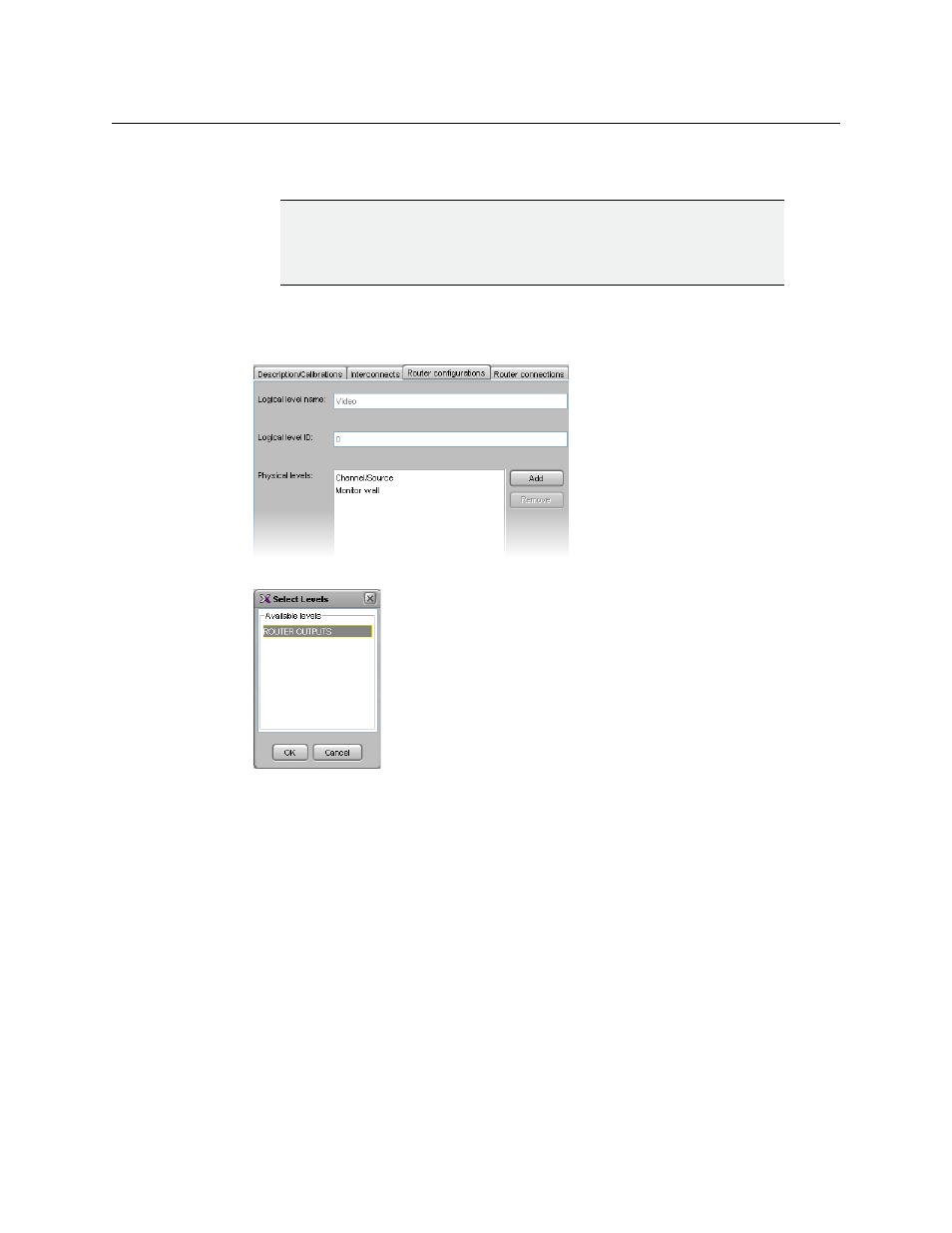

The Select Levels window appears, listing all available physical levels.
4 Select the physical levels you wish to add to KX Router’s first logical level, and then click
OK.
The selected levels appear in the Physical levels list.
5 Click the [1] KX Router (16 × 34) folder under Logical routers in the Routers list.
The third-level tab bar appears under Router configurations, with the Configuration
tab selected.
6 Source and destination mapping is not done automatically. Click the Source mapping
tab, click a cell in the [0] Video logical level column, and then choose an input from the
list.
IMPORTANT
Controlling the multiviewer’s internal router by using any other logical router
than KX Router is not supported. The ROUTER OUTPUT physical level must be
added to the first level (i.e. [0] Video), under KX Router.
