357
Kaleido-X
User’s Manual

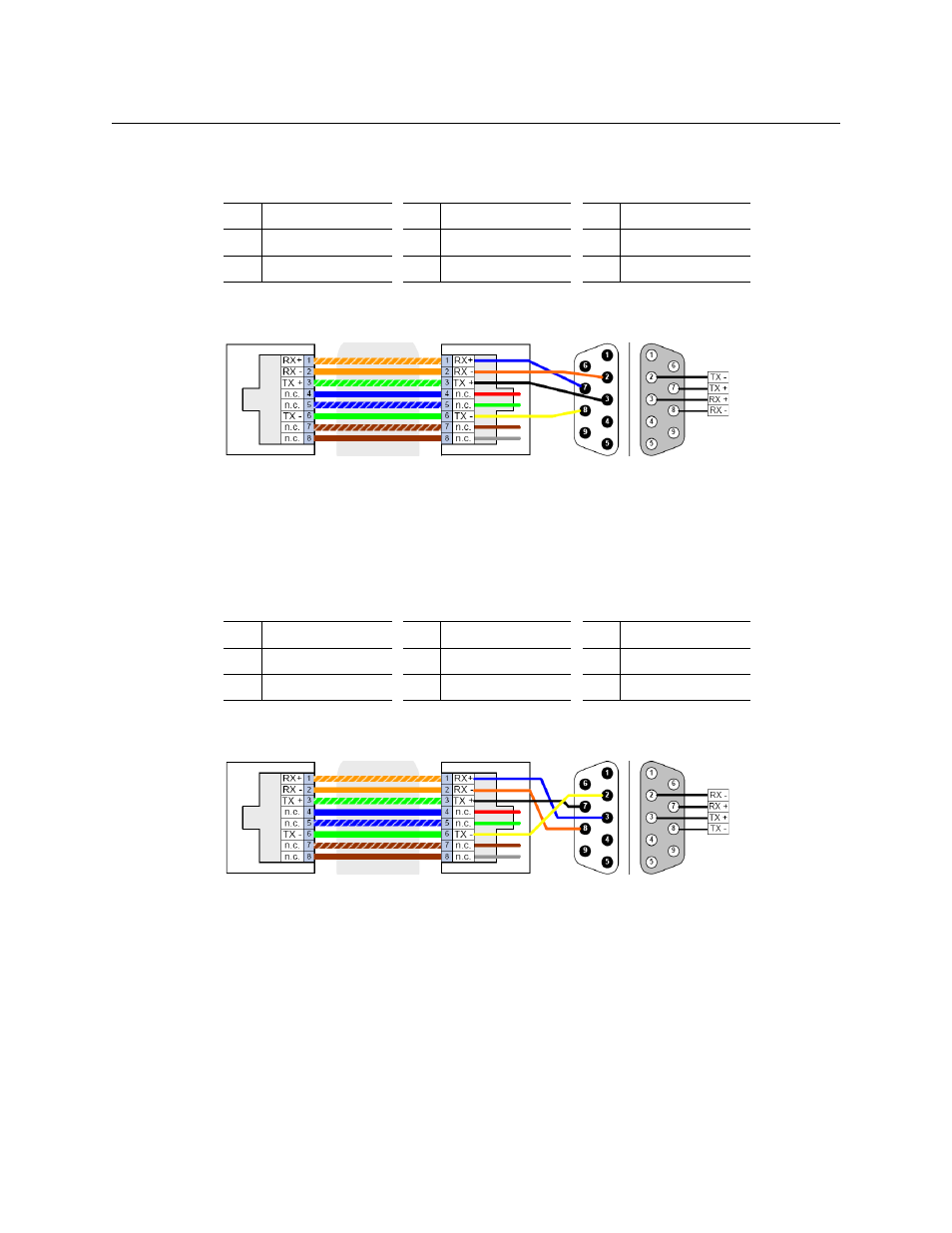

Sample Third-Party Serial Pinouts
Example #1: Ross Synergy100 (RS-422)
The Grass Valley 1737-3000-102 (straight) adapter can be connected directly to the Ross
Synergy 100:
Standard wiring between multiviewer and devices wired to SMPTE “slave” specification (e.g. most
routers, Ross Synergy switchers, Nevion ETH-CON)
Example #2: Philips VM-3000 (RS-422)
The Grass Valley 1792-3700-100 (crossover) adapter can be connected directly to the
Philips controller:
Standard wiring between multiviewer and devices wired to SMPTE “master” specification (e.g. Philips
Jupiter router control system, Grass Valley Presmaster PCS)
Alternatively, use the Grass Valley 1737-3000-102 (straight) adapter but with a crossover
cable between the multiviewer and the adapter.
1 Not connected 4 Ground 7 TX+
2 TX– 5 Ground 8 RX–
3 RX+ 6 Not connected 9 Not connected
1 Ground 4 Not connected 7 RX+
2 RX– 5 Not connected 8 TX–
3 TX+ 6 Not connected 9 Not connected
Pinout of an RS-422
port’s RJ-45 connector
on the multiviewer
Pinout of straight adapter (Grass
Valley part no. 1737-3000-102)
RJ-45 DE-9 male DE-9 female
Pinout of RS-422
connector on SMPTE
slave device
Pinout of an RS-422
port’s RJ-45 connector
on the multiviewer
RJ-45 DE-9 male DE-9 female
Pinout of crossover adapter (Grass
Valley part no. 1792-3700-100)
Pinout of RS-422
connector on SMPTE
master device
