Grass Valley Kaleido-X v.7.80 User Manual
Page 298
290
Creating Layouts
Configuring UMDs

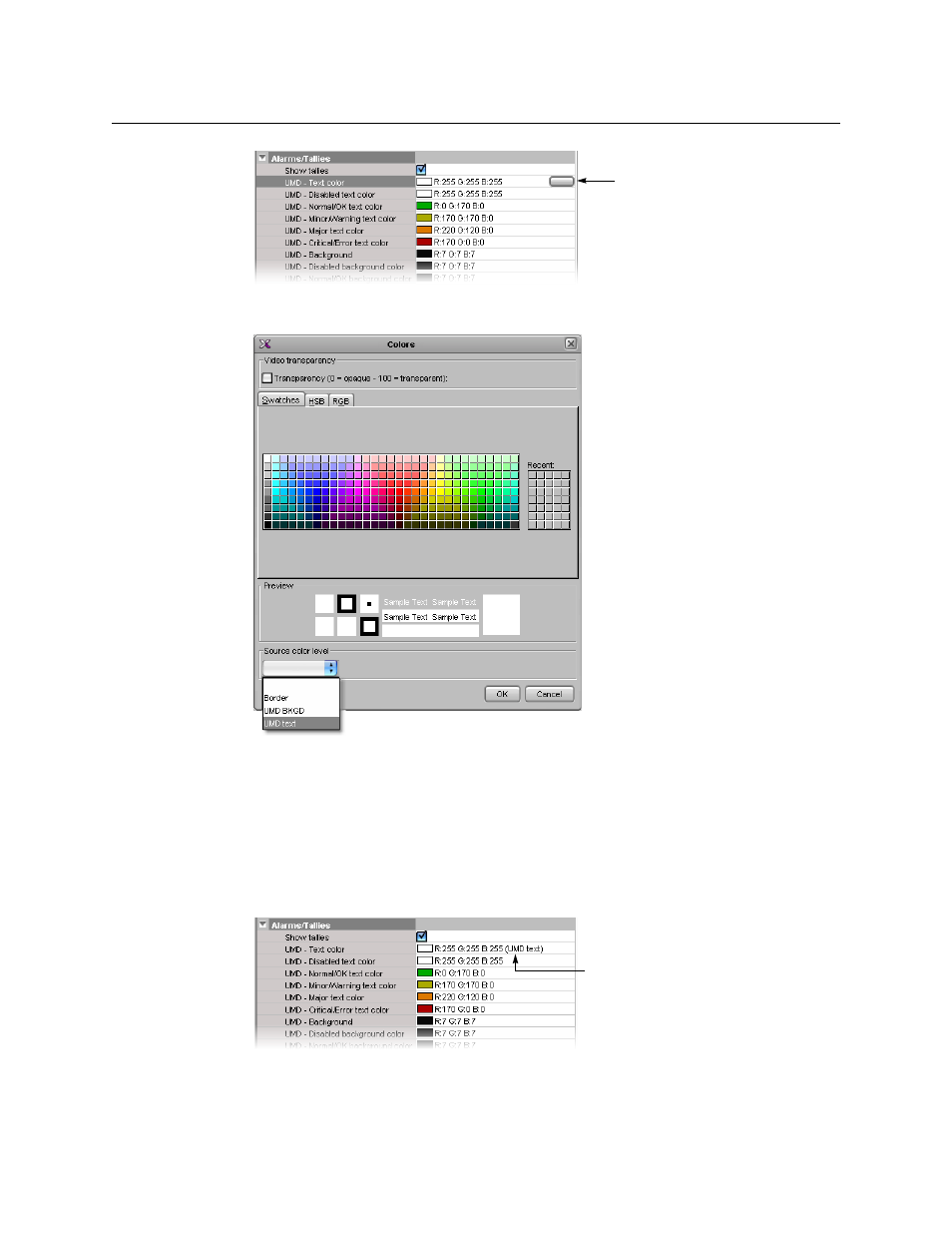

5 In Colors, select the appropriate level from the Source color level list. See
on page 200, for more information.
6 Set the color’s transparency as desired.
7 Set the color to be used for sources whose color levels might not be defined, by clicking
the tab that corresponds to the color space you wish to use, and then choosing the
desired color (see
Configuring a UMD’s Alarm Reporting Behavior
on page 287, for
more information).
8 Click OK to close the color picker window.
In the Properties pane, the name of the selected source-based color level appears next
to the fallback color (and transparency, if used).
9 Repeat from
for the remaining colors you wish to set.
