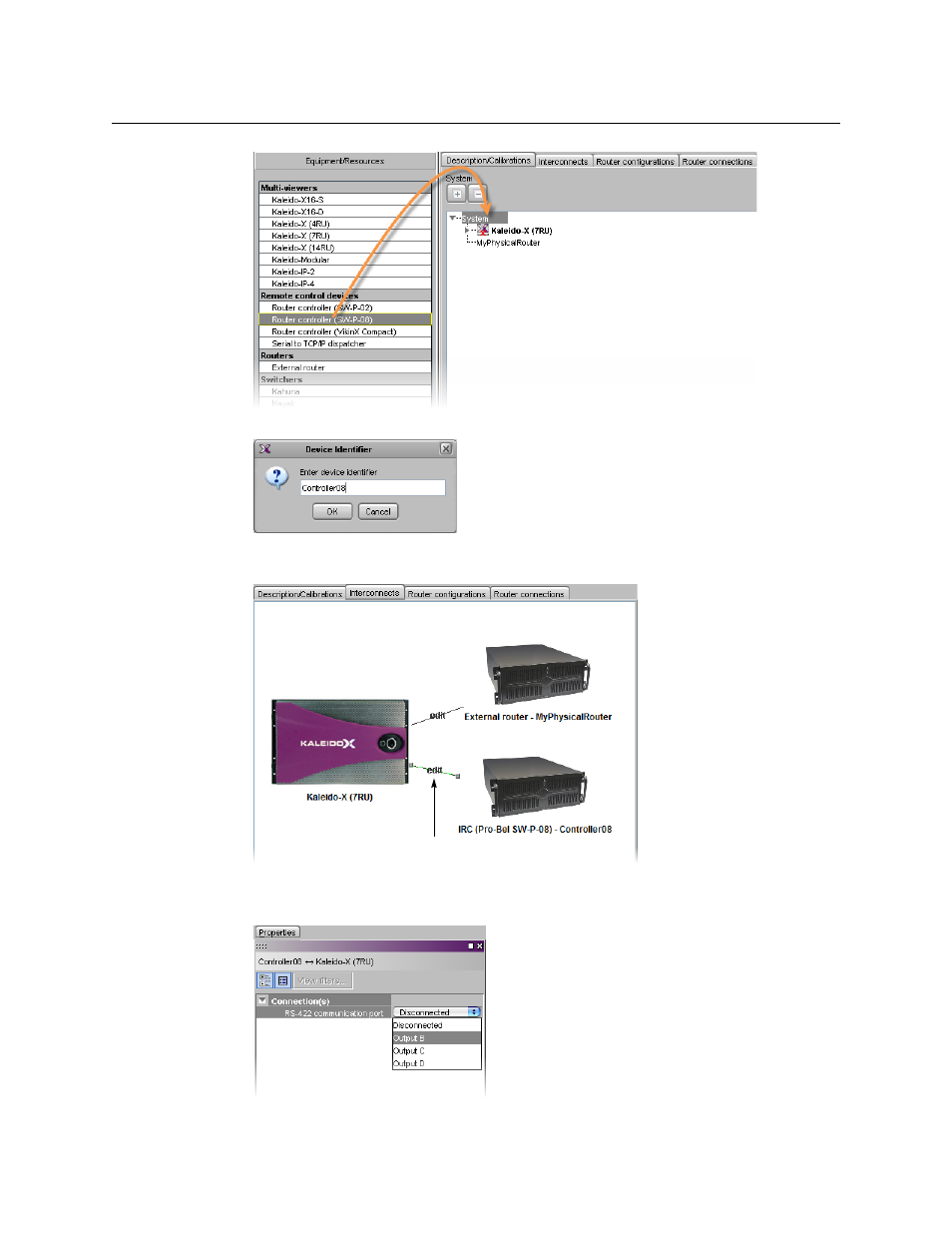

2 When prompted, type a name for the router controller, and then click OK.
3 Click the Interconnects tab, draw a line between the multiviewer and the new router
controller, and then click the line.
4 In the Properties pane, select the appropriate element from the RS-422
communication port list.
Click the line to configure
the connection properties
