100
Managing Kaleido-X Systems
Configuring the System Representation

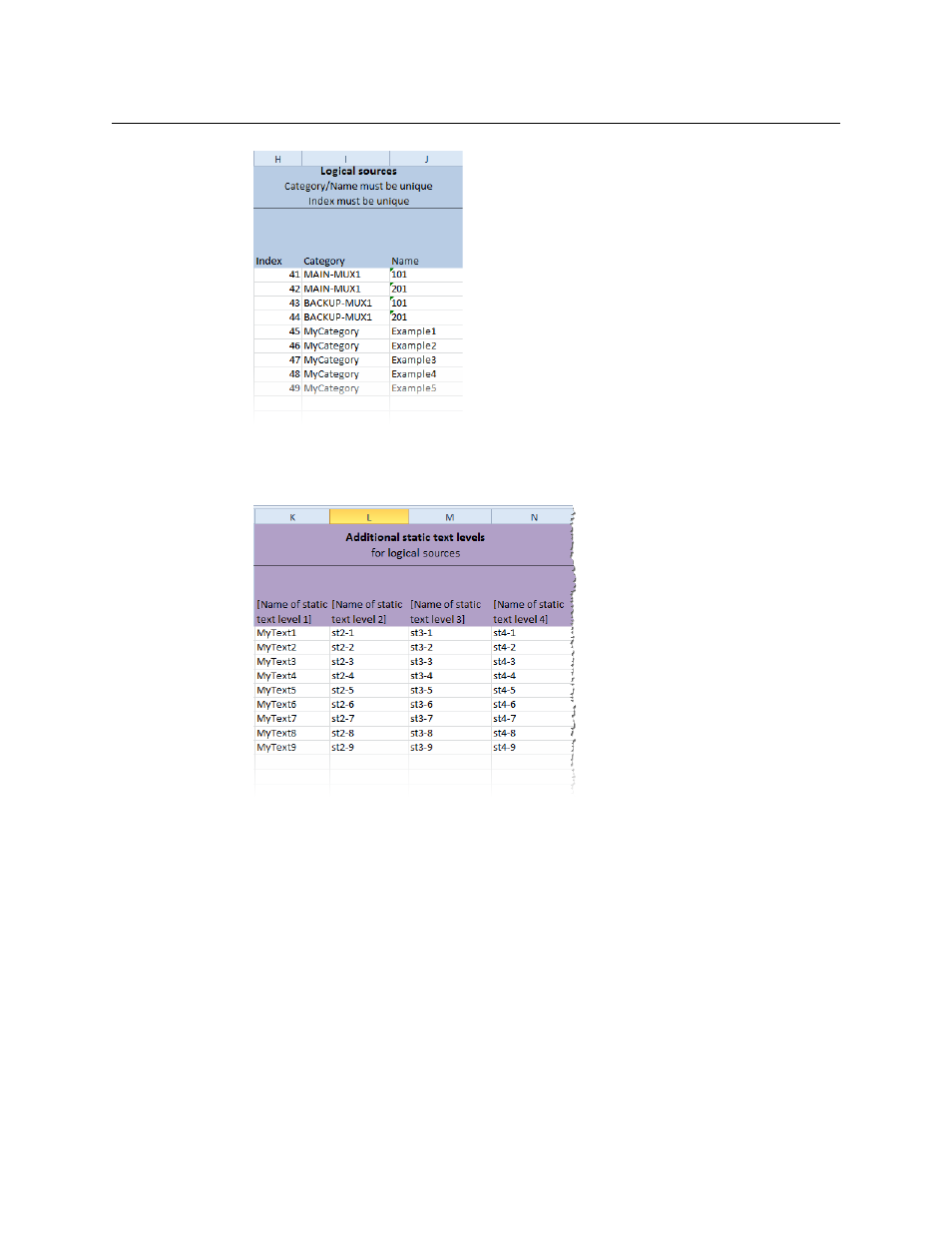

Sample spreadsheet: Logical sources area
4 Optionally, use the columns, starting at column K, to add static text levels. Enter the
level name on the second heading row.
Sample spreadsheet: Additional static text levels area
Static text level names and data that only contain digits and have decimal positions that
are all zeros must be preceded with an apostrophe in the spreadsheet.
5 Repeat this procedure until you have added the required information for all the
programs you wish to monitor.
Adding any-source multicast transport streams
To add an any-source multicast (ASM) transport stream
1 In the main window, click the System tab, and then click Description/Calibrations on
the second level tab bar.
2 Expand the System hierarchical list, and then click the appropriate network adapter
element, for the stream you wish to add:
• NETWORK ADAPTER 2 for a high-bitrate stream;
