5
Kaleido-X
User’s Manual

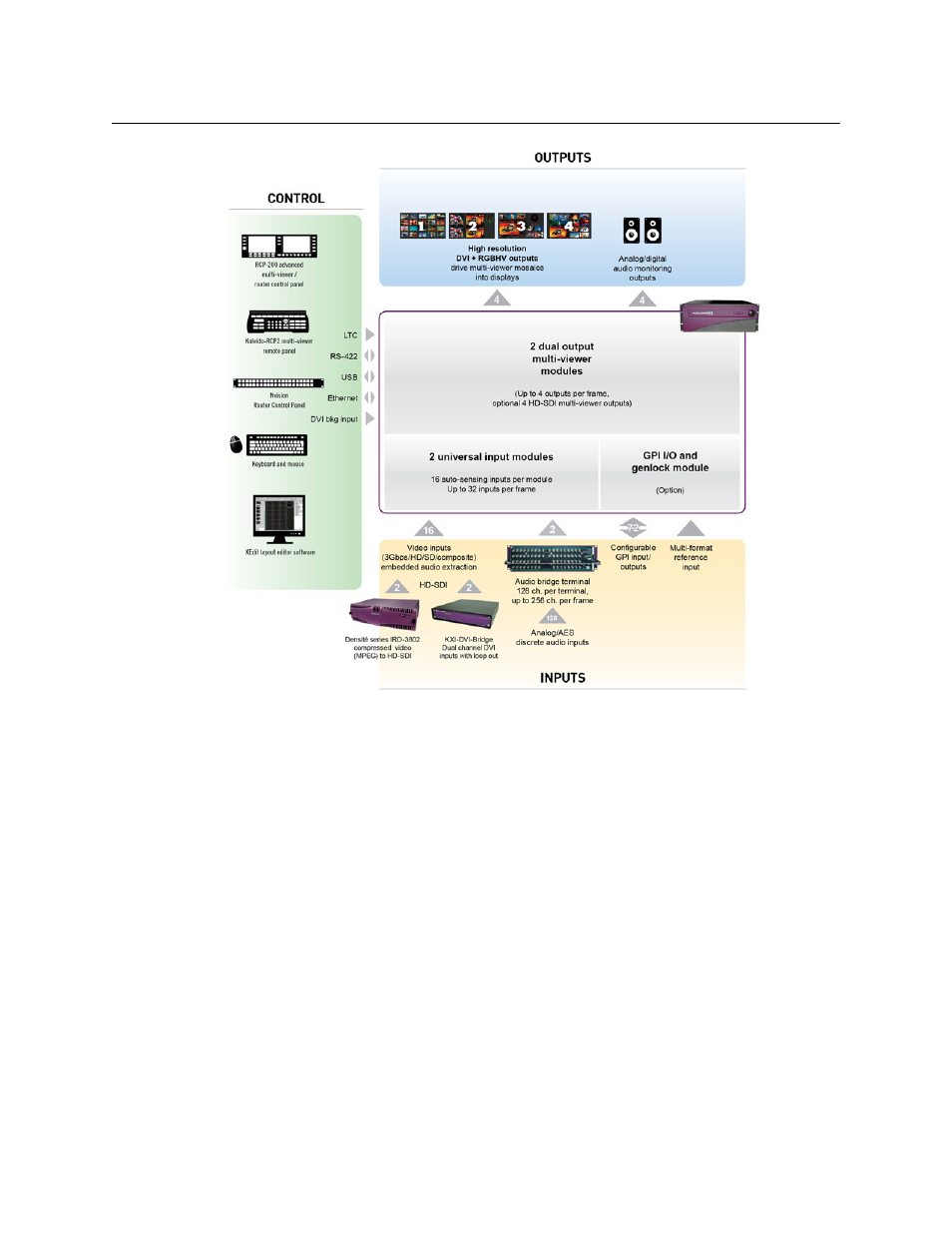

Kaleido-X (4RU) system overview
Kaleido-X (7RU)
The Kaleido-X (7RU) is a multi-room, multi-image display processor and router in a single,
expandable chassis. Its unique mix of capabilities represents the most integrated
monitoring and routing solution. As a multi-image processor, it offers the highest level of
signal flexibility. Each chassis can display 96 HD, SD or Analog inputs any number of times,
across 8 displays of any resolution and orientation. As a router, it offers switching of 96
unprocessed inputs to 48 HD/SD outputs for feeding monitors, test equipment and master
control or production switchers.
