router, while using only one mouse, and one Kaleido-RCP2 or RCP-200. Refer to Creating a
Cluster , on page 89, for more information.

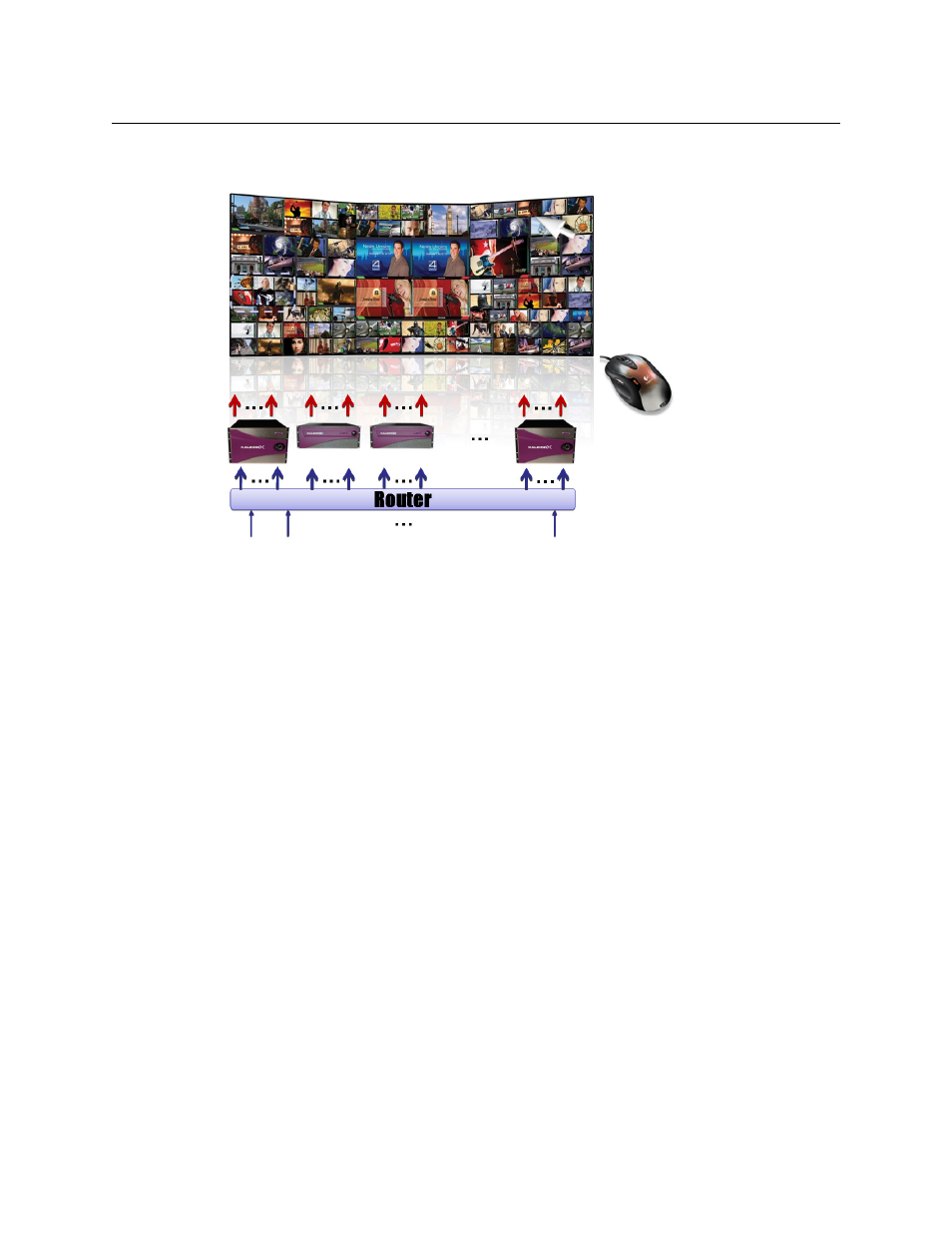

Cluster system overview
Cascade
It is possible to configure up to three Kaleido-X16 or KMV-3901/3911 multiviewers as a
cascade system. Unlike the cluster, whose purpose is to increase the number of output
heads in a room, the cascade increases the maximum number of inputs that can be
displayed to a single monitor wall display. It is also possible to configure a hybrid cascade
system, involving one Kaleido-IP and one Kaleido-X, or one Kaleido-IP and one Kaleido-X16,
to monitor both baseband and IP sources at once, on the same monitor wall display. For
more information, refer to the appropriate Cascade Step-by-Step Configuration guide,
available on the Kaleido-X DVD, and from
the Documentation Library section of Grass
Valley’s website.
Detailed Directions
Verifying your System Configuration
You can check internal system statuses via the Web-based XAdmin application.
Verifying a Multiviewer’s Internal Statuses and Options
To perform a system verification
1 Open XAdmin. See Opening XAdmin on page 507.
XAdmin’s Status and Options page appears, displaying a list of all modules and their
statuses.
