Configuring a Multiviewer’s Internal Router
To control your multiviewer’s internal router, it must be configured in the context of the KX
Router logical router.
Configuring the Internal Router in a Kaleido-X16
To configure a Kaleido-X16 multiviewer’s internal router

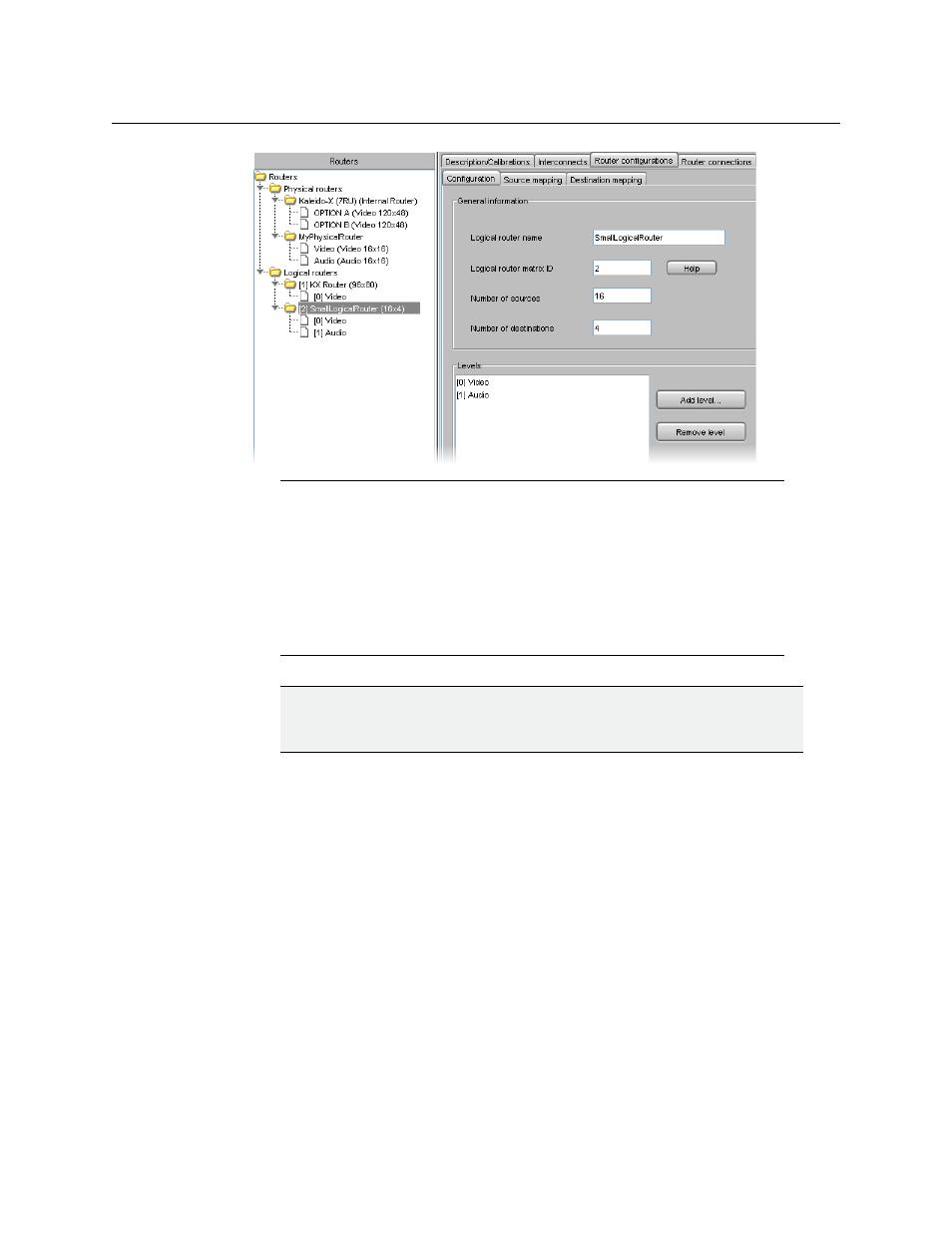

1 Click the Router configurations tab, and then navigate to the Kaleido-X16-D (Internal
Router) or Kaleido-X16-S (Internal Router) folder under Physical routers, in the
Routers list.
Notes
• The logical router matrix ID must be manually entered on the Snell (Pro-
Bel) controller—this is usually done via a Web interface, but is sometimes
done over a serial connection. Some controllers allow you to program
individual buttons, or groups of buttons.
• The Snell (Pro-Bel) controller can also use the logical router level IDs (e.g.,
[0] Video, [1] Audio) when it sends commands, allowing you to target just
video crosspoints, just audio crosspoints, or both.
IMPORTANT
You must always configure a logical router for a physical external router. There
is no way to control a physical external router directly.
