Serial communications properties examples
10 On the File menu, click Save.
Ross Video Production Switcher
A multiviewer can receive dynamic source names and tally information from a Ross Video
production switcher (Synergy 2, 3, 4 SD/MD and Vision models). The procedures below
describe how to set up the multiviewer to interface with a Ross Video switcher.
To set up the Ross Video production switcher
1 Enable the contribution serial tally interface on one of the switcher’s ports, by using the
switcher’s installation menu: from the HOME menu, press More > Setup > Installation
> Comm Setup, and then configure the serial tally device as follows:

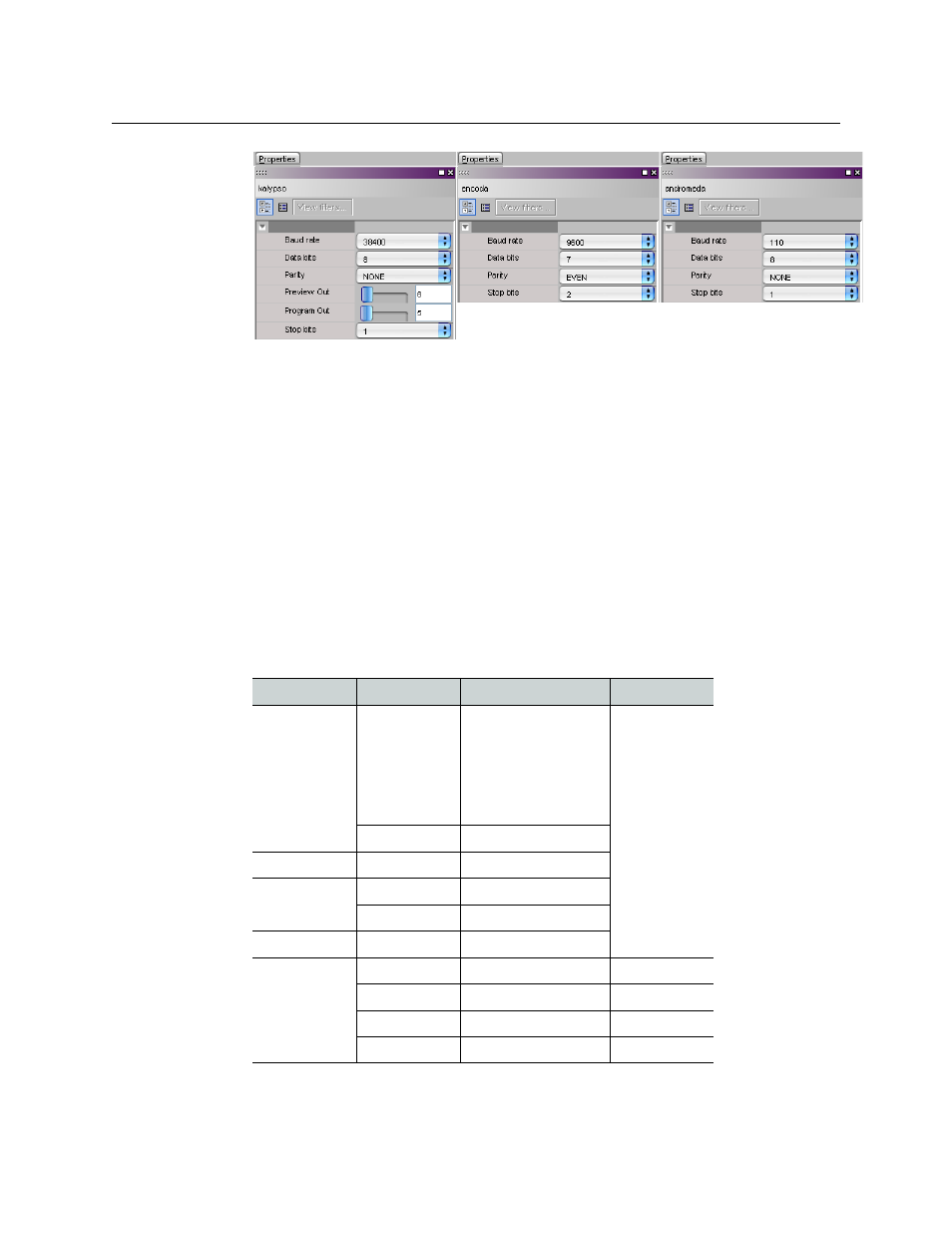

Example showing the default
properties for the Kalypso device
Example showing the properties
for an Encoda device, configured
to reflect the current settings on
an actual A7500 automation
system
Example showing the default
properties for the Andromeda
device (the Encoda device has the
same default properties)
Menu Field Value Sub-value
Type Com Port [any REMOTE or
PERIPH port
(depending on
device), or the
EDITOR port (on a
Synergy 100 panel)]
Device Serial Tally
SelectDevice Device Contrib
Comm Setting Baud 38 400-115 200
Parity NONE
Comm Type Type RS-422
Extra Option Option Rate 26
Option Data Txfr Complete
Option Start None
Option At Black All Off
