434
Tally Interface Devices &Timer Systems
Kayenne Production Switcher
Depending on the multiviewer model, the available RS-422 ports are designated as
follows:

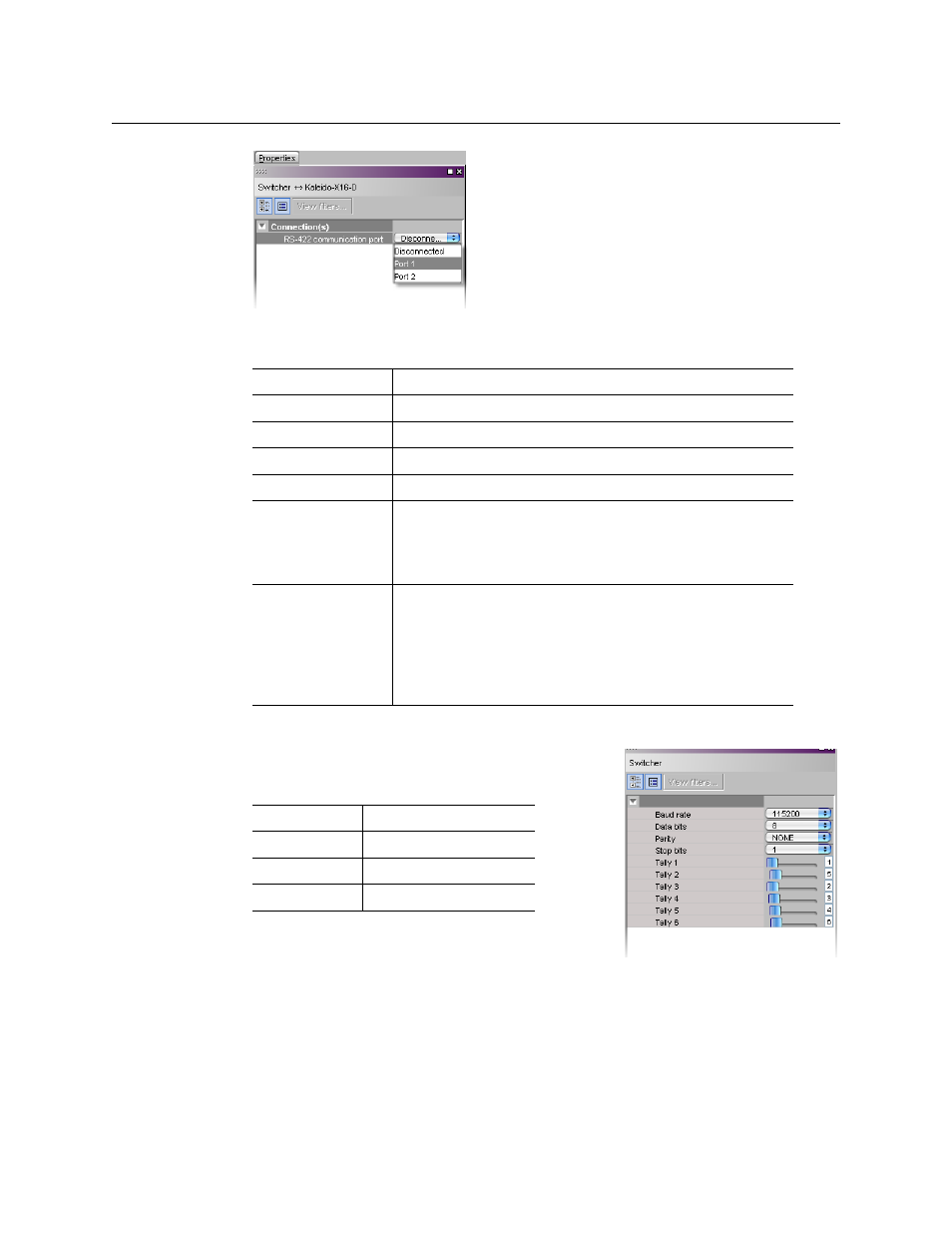

9 In the Interconnects tab, click the Kayenne production switcher icon.
10 In the Properties pane, set the serial
communications properties for the Kayenne device
as follows:
11 Set the appropriate output numbers to use for tally
calculation, based on your switcher’s configuration.
The current version of the Kaleido-X software supports monitoring of up to 6 tallies
from a Kayenne Video Processor Frame. By default, in XEdit, Tally 1 corresponds to the
Kayenne’s output 1 (which typically carries the Program signal), and Tally 2 corresponds
to the Kayenne’s output 5 (typically the Preview signal). The following table lists the
KMV-3901/3911 RS-422
Kaleido-X16 Port 1, and Port 2
Kaleido-X (14RU) Frame A – Output A, B, and C; Frame B – Output A, B, and C
Kaleido-X (7RU) Output A, B, C, and D
Kaleido-X (4RU) Output A, and B
Kaleido-MX,
Kaleido-MX 4K Output A, and B
Note: The Kaleido-MX (1RU) 16 × 4, and the Kaleido-MX 4K
16 × 1 models have only one RS-422 port, which is physically
connected to output card A.
Kaleido-Modular-X Output A, and B
Note: KMX-3901-OUT output cards with a single rear
connector panel (KMX-3901-OUT-D-3+SRP) do not have RS-
422 ports. To support a serial device, your Kaleido-Modular-X
system must have at least one output card with a double rear
connector panel (KMX-3901-OUT-D-3DRP).
Baud Rate 115200
Data Bits 8
Parity NONE
Stop bits 1
