Calibrating the Kaleido-X
Router Output Calibrations

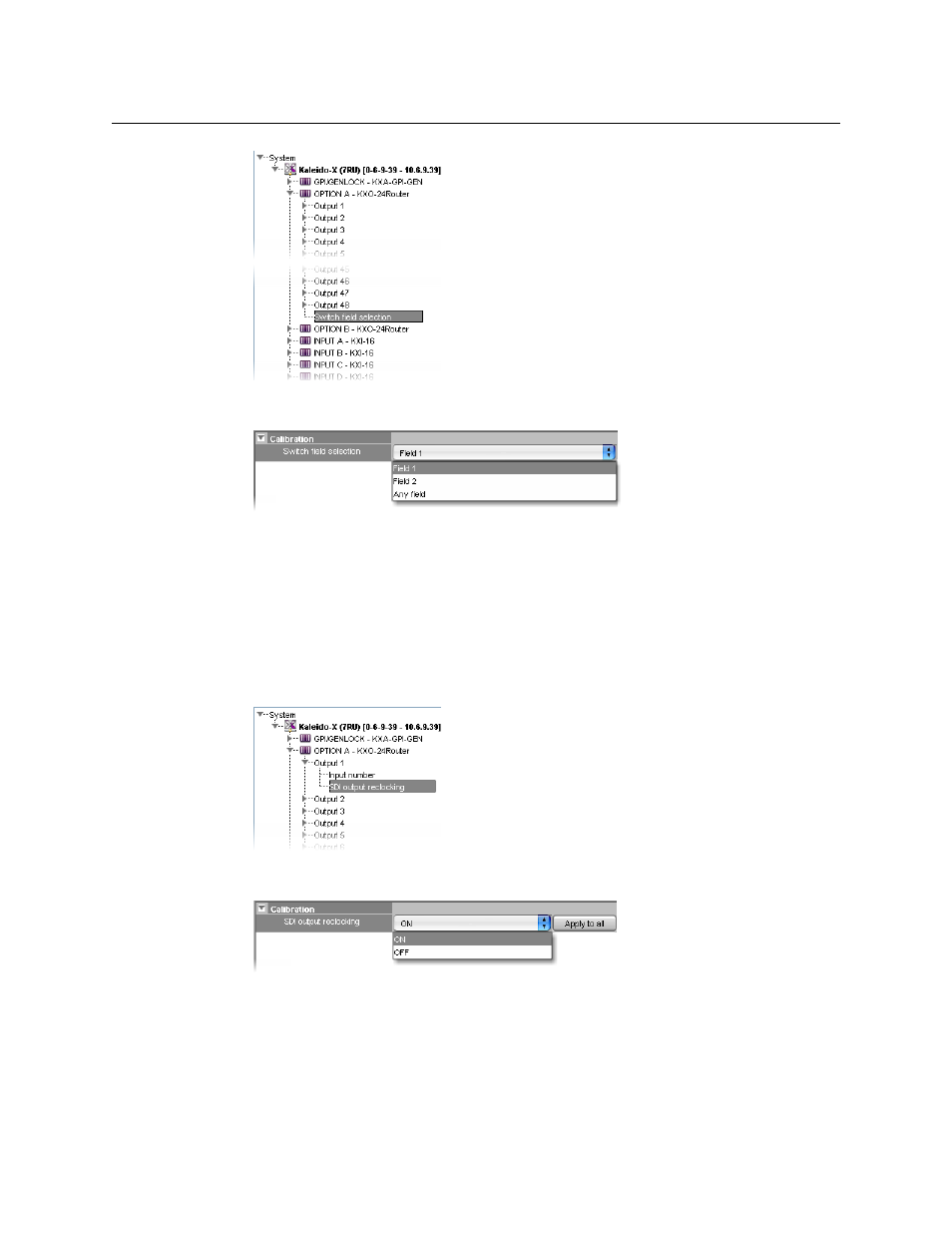

4 In the Properties pane, click the Switch field selection box, and then select the
appropriate field value from the list.
Calibrating SDI Signal Reclocking
To calibrate reclocking of a router module’s output signal
1 In the main window, click the System tab, and then click Description/Calibrations on
the second-level tab bar.
A hierarchical list representing the current system appears.
2 In the list, expand the multiviewer you wish to calibrate.
3 Expand the appropriate router output, and then click SDI output reclocking.
4 In the Properties pane, click the SDI output reclocking box, and then select ON or OFF
from the list.
5 Click Apply to all to apply the chosen value throughout the system.
