364
Routers & Kaleido-X
Importing Router Configurations from an NV9000 System Controller

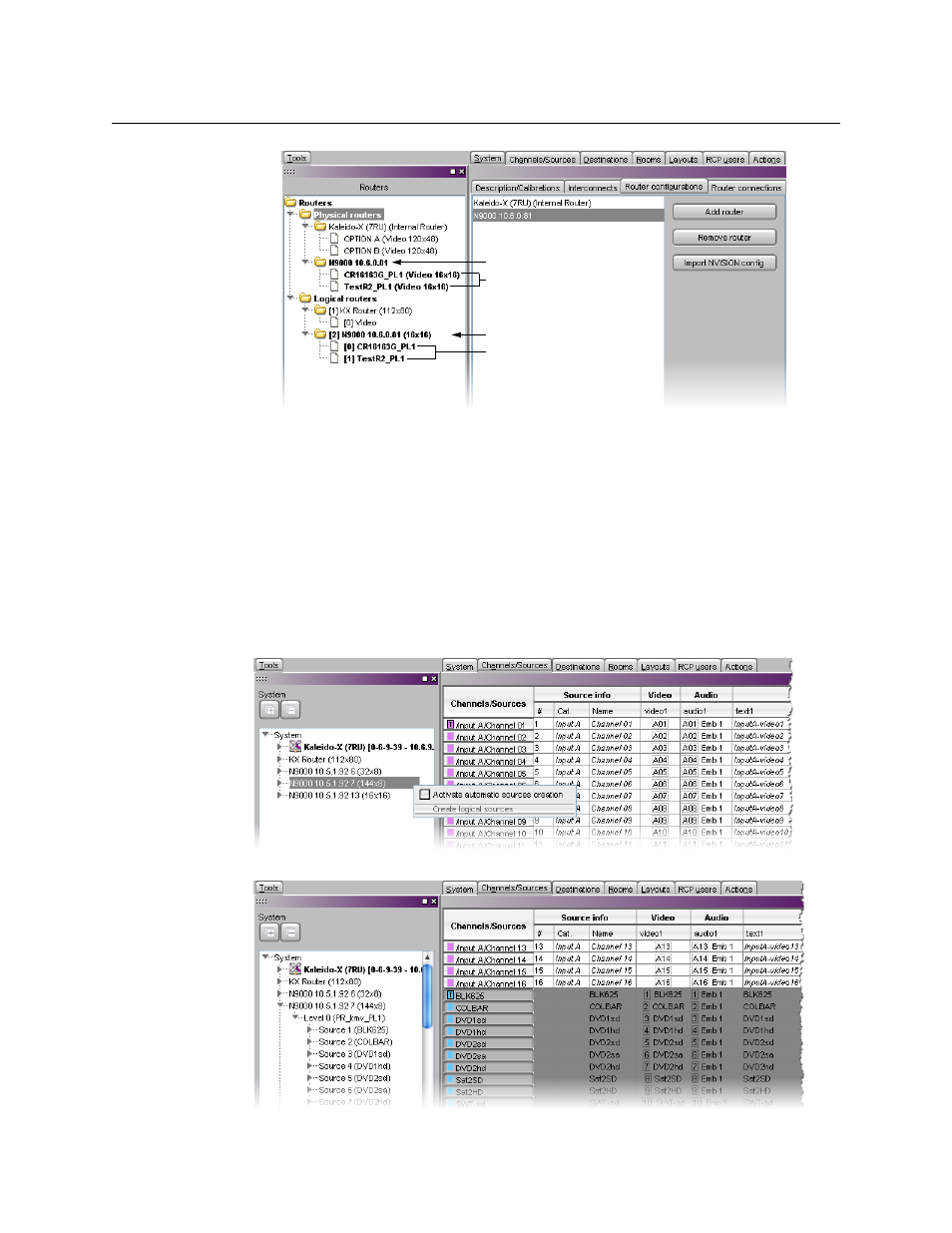

One physical router, and one logical router were added, each with two levels whose names
match the names of the corresponding NV9000 physical levels.
If you intend to import other router configurations from the same NV9000 system
controller, separately, then you must rename the physical router associated with
the configuration you just imported. Otherwise, if you use the Create one router
with multiple levels option again, then any configuration you import next will
replace the current one. See
Renaming Physical Routers below.
8 On the File menu, click Save.
9 Click the Channels/Sources tab.
10 In the filtered System list, right-click the external router you just imported, and then
click Create logical sources on the menu.
The sources table now includes entries for your router sources.
New physical router
New logical router
Logical levels
Physical levels
